Honeywell 51304754-100 Original Industrial Spare TDC 3000

Product Overview

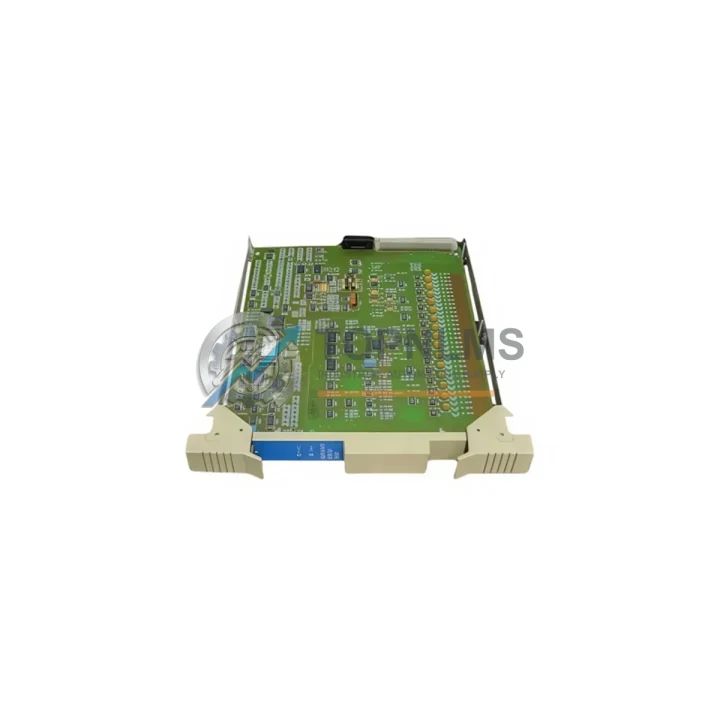

Honeywell 51304754-100 Original Industrial Spare TDC 3000: System Stability & Maintenance Value

The Honeywell 51304754-100 is a High Level Analog Input Card designed for the TDC 3000 Distributed Control System (DCS) platform — one of the most widely deployed process control architectures in refining, petrochemical, power generation, and continuous manufacturing environments. As aging TDC 3000 systems remain in active service across global facilities, maintaining a reliable inventory of original spare modules like the 51304754-100 is a cornerstone of any responsible maintenance strategy.

This card interfaces directly with field transmitters delivering high-level analog signals (typically 1–5 V or 4–20 mA via external converters), converting real-world process variables into digital values processed by the TDC 3000 controller. Signal integrity, channel isolation, and firmware compatibility with the legacy UCN/LCN architecture make the original Honeywell 51304754-100 the preferred choice over generic substitutes when system uptime is non-negotiable.

Critical Technical Specs

Preventive Maintenance Strategy

Unplanned shutdowns in DCS-controlled facilities are among the most costly operational events a maintenance team can face. A structured preventive maintenance program built around the TDC 3000 platform should treat the 51304754-100 Analog Input Card as a critical node — but it rarely fails in isolation. During scheduled turnarounds or annual inspections, experienced engineers know that replacing or bench-testing this card is most effective when conducted alongside a broader review of the surrounding control cabinet.

The Honeywell 51300890-175 Power Supply Module feeds the IOP card cage; a degraded power rail is a leading cause of intermittent analog input faults that are often misdiagnosed as card failures. Similarly, the 51304485-100 Low Level Analog Input Card frequently occupies adjacent slots and shares the same UCN segment — inspecting both cards during the same maintenance window eliminates repeat call-outs. The 51401491-100 Digital Output Module and 51304516-100 Digital Input Module are standard companions in mixed I/O cabinets and should be included in any cabinet-level health audit.

Field wiring integrity is equally important. Marshalling panels connected to the 51304754-100 rely on terminal blocks and field termination assemblies (FTAs) — components such as the 51196655-100 FTA series — to maintain clean signal paths. Corroded or loose terminations at the FTA level can introduce noise that mimics card-level faults. Inspecting and replacing aging FTAs during the same outage window as the analog input card replacement is a proven labor-saving practice.

For facilities running extended TDC 3000 networks, the 51401196-100 UCN Interface Module and associated 51304362-100 Highway Gateway Module govern inter-node communication. A degraded UCN segment can cause sporadic read errors on otherwise healthy analog input cards — making these communication modules essential items in any spare parts inventory. Rounding out a complete cabinet inspection, the 51109684-100 Analog Output Module and 51304453-100 Multifunction Controller are high-value spares that share the same maintenance cycle and should be verified for firmware revision compatibility during any TDC 3000 service event.

Strategic Replacement Solutions

The Honeywell TDC 3000 platform, while no longer in active production, continues to operate in thousands of facilities worldwide where full DCS migration is cost-prohibitive or operationally impractical. The 51304754-100 provides a direct, plug-and-play replacement for failed or end-of-life analog input cards without requiring any software reconfiguration, loop tuning, or UCN address reassignment — preserving the existing control strategy and minimizing replacement time to under 30 minutes in most installations.

Sourcing original OEM cards rather than refurbished or third-party alternatives eliminates compatibility risk. Counterfeit or non-OEM analog input cards have been documented to introduce calibration drift, channel cross-talk, and UCN communication errors that can destabilize entire process units. The original 51304754-100 maintains full firmware handshake compatibility with TDC 3000 AM (Application Module), HPM (High-Performance Process Manager), and PM (Process Manager) controllers, ensuring seamless reintegration after hot-swap replacement.

For facilities managing lifecycle extension programs on aging TDC 3000 infrastructure, maintaining a minimum stock of two to three 51304754-100 cards per control room — alongside matched spares for power supply, digital I/O, and communication modules — reduces mean time to repair (MTTR) from days to hours and eliminates the risk of extended lead times on obsolete components disrupting production schedules.
