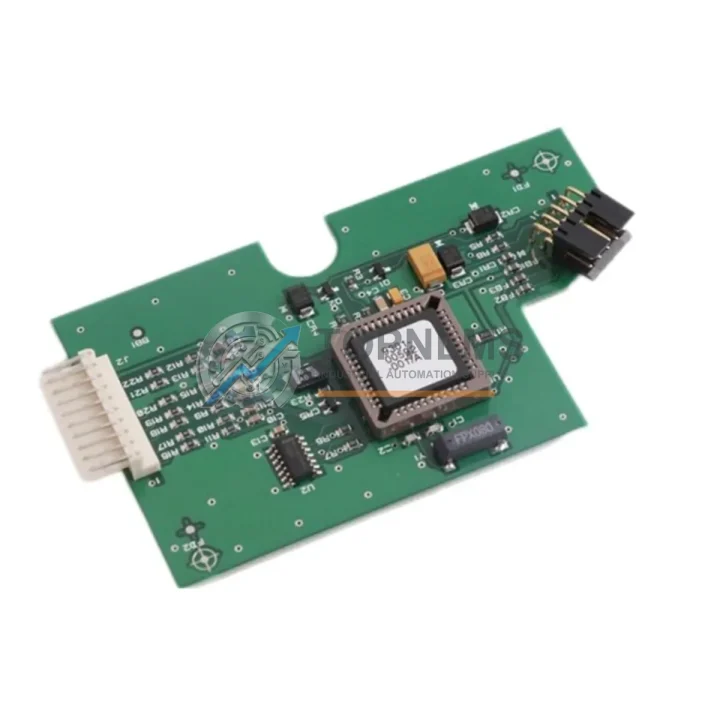

Honeywell 51304685-150 Replacement/Upgrade Solution for TDC 3000: Smooth Migration from Legacy DCS to Modern Control Architecture

Upgrading or replacing a legacy Honeywell TDC 3000 distributed control system is one of the most critical decisions a plant engineer faces. The Honeywell 51304685-150 conformally coated DCS control module is a proven, field-tested component that bridges the gap between aging infrastructure and modern process automation demands. Whether your facility is managing a phased migration from TDC 3000 to Experion PKS, or simply requires a reliable drop-in replacement for a failed or end-of-life module, the 51304685-150 delivers the compatibility, durability, and performance your operation depends on.

This module features a conformal coating that protects internal circuitry from moisture, dust, and corrosive atmospheres — a critical requirement in petrochemical, refining, power generation, and pharmaceutical environments. Its robust design ensures long-term reliability in harsh industrial settings where unplanned downtime carries significant operational and financial consequences.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC 3000 migration or module replacement rarely involves a single component. In practice, plant engineers working with the 51304685-150 typically address several interconnected system elements to ensure a smooth cutover with minimal downtime.

When replacing a failed control module in an HPM (High-Performance Process Manager) node, the surrounding infrastructure must be verified for compatibility. The Honeywell 51304485-100 power supply module and associated backplane components should be inspected to confirm stable voltage delivery to the replacement card. If the existing field termination assembly (FTA) shows signs of wear, a compatible Honeywell 51304754-150 FTA can be substituted without altering field wiring, preserving the integrity of the existing loop configuration.

For facilities transitioning from TDC 3000 to Experion PKS, the migration path often involves introducing a Honeywell C300 Controller alongside legacy HPM nodes during a phased cutover. During this period, the 51304685-150 continues to manage legacy process loops while the new Experion architecture is commissioned in parallel. Communication between legacy UCN nodes and the new Fault Tolerant Ethernet (FTE) network is typically managed through a Honeywell EPLCG2 or equivalent gateway module, allowing both systems to coexist without interrupting production.

I/O infrastructure is another key consideration. Existing Honeywell 51309276-175 analog input modules and 51309276-225 analog output modules remain fully compatible with the 51304685-150 in a standard TDC 3000 card cage. Digital I/O modules such as the Honeywell 51304516-150 DI module can also be retained, eliminating the need for costly I/O replacement during a module swap.

For sites requiring enhanced diagnostics or remote monitoring during the migration, a Honeywell 51401642-150 communication interface module can be integrated into the existing rack to support asset management and predictive maintenance workflows. Signal isolators and marshalling panels may also be required where field signal integrity is a concern, particularly in older installations where cable shielding has degraded over time.

In summary, the 51304685-150 is not an isolated component — it is a cornerstone of a broader migration strategy that may involve power modules, FTAs, I/O cards, communication gateways, and controller upgrades. Our team can assist with full bill-of-materials (BOM) support for your specific migration project.

Retrofit Guidance FAQ

Q: Can I replace the 51304685-150 without rewiring the field termination assembly?
A: Yes. The 51304685-150 is designed for direct slot replacement within the TDC 3000 card cage. Existing FTA wiring and field loop connections remain unchanged, significantly reducing installation time and the risk of wiring errors during the swap.

Q: Do I need to reload or modify my existing CL/HPM control logic?
A: No reprogramming is required for a direct module replacement. The existing HPM configuration, control logic, and database are retained on the system. After module insertion and power-up, the HPM node will reload its configuration automatically from the LCN historian or backup media.

Q: Is this module compatible with both UCN and LCN communication architectures?
A: Yes. The 51304685-150 operates within the standard TDC 3000 UCN/LCN communication framework. It does not require protocol conversion or additional communication hardware for standard replacement applications.

Q: How much physical space does the module require in the card cage?
A: The 51304685-150 occupies a single standard TDC 3000 card slot. No additional rack space or mounting hardware is required beyond the existing card cage slot.

Q: What should I verify before installing the replacement module?
A: Prior to installation, verify backplane power supply voltage levels, confirm the FTA is securely connected, and ensure the HPM node is in a safe state (maintenance mode or controlled shutdown). After insertion, monitor the node status via the Honeywell console for successful initialization and communication re-establishment.

Q: Can this module be used in an Experion PKS environment?
A: The 51304685-150 is a TDC 3000 native module. In an Experion PKS migration scenario, it continues to operate within legacy HPM nodes that remain active during the phased cutover. It is not a native Experion C300 or EPKS module, but it coexists with Experion infrastructure during transition periods.

Warranty Assurance

Every Honeywell 51304685-150 shipped by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes a multi-point functional inspection including power-on testing, communication interface verification, and visual inspection of the conformal coating and connector integrity.

In the event of a warranty claim, TOPNLMS provides a streamlined replacement process: contact our technical support team at [email protected], provide your order reference and a brief fault description, and our team will initiate the replacement or repair process within 2 business days. We maintain buffer stock of critical TDC 3000 components to minimize lead times on warranty replacements.

For procurement teams, our standard delivery lead time is 3–7 business days for in-stock items, with expedited shipping available for emergency plant shutdowns. All modules are shipped in anti-static packaging with full documentation including test records and a certificate of conformance upon request.

We understand that purchasing decisions for critical DCS components require confidence in both product quality and supplier reliability. TOPNLMS has supplied Honeywell TDC 3000 and Experion PKS components to industrial facilities across Asia, the Middle East, and Europe, with a track record of on-time delivery and responsive after-sales support.
