Honeywell 51304685-100 UCN Replacement for TDC 3000 DCS

Product Overview

Honeywell 51304685-100 UCN Replacement for TDC 3000 DCS: Seamless Migration & Compatibility Upgrade

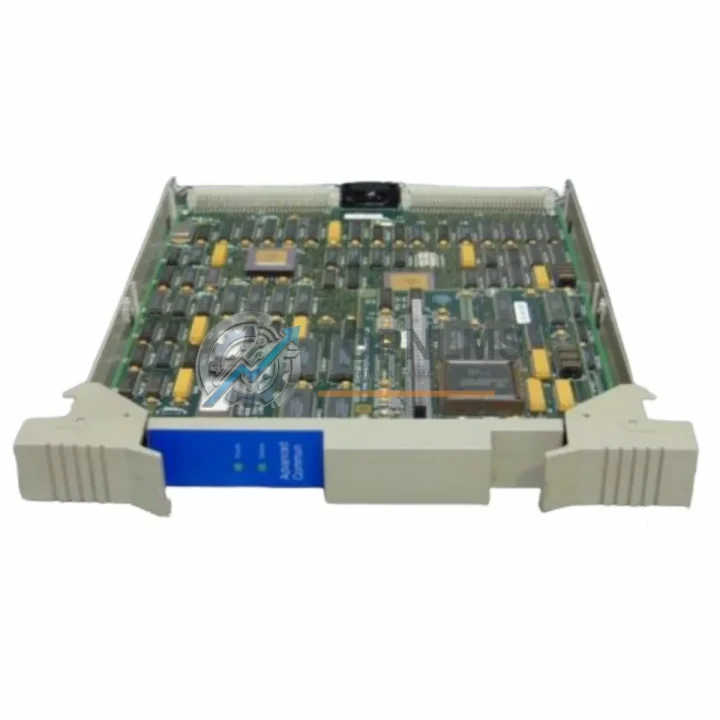

The Honeywell 51304685-100 UCN Advanced Communications Card is a critical network interface module within the TDC 3000 Distributed Control System architecture. As Honeywell progressively phases out TDC 3000 hardware in favor of the Experion PKS platform, facilities running legacy UCN-based control loops face increasing pressure to source verified replacement units or plan structured migration paths. TOPNLMS maintains ready stock of the 51304685-100 to support both immediate spare-part needs and phased system modernization projects — minimizing unplanned downtime and protecting your existing capital investment.

The 51304685-100 serves as the backbone of UCN (Universal Control Network) communication within TDC 3000 cabinets, enabling high-speed peer-to-peer data exchange between controllers, I/O subsystems, and operator stations. Its replacement or upgrade must account for wiring topology, network addressing, firmware revision compatibility, and physical slot assignment within the existing PM/APM/HPM controller chassis. TOPNLMS engineers have documented compatibility across multiple TDC 3000 firmware generations, ensuring the supplied unit integrates without requiring full system reconfiguration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 51304685-100 replacement rarely occurs in isolation. During UCN network maintenance or TDC 3000 modernization, engineers typically address adjacent components to ensure system-wide stability. The Honeywell 51401288-100 LCN Interface Module is frequently replaced alongside the UCN card when the plant’s Local Control Network also shows degraded performance — both modules share the same cabinet backplane and are subject to similar aging profiles.

For facilities migrating from TDC 3000 to Experion PKS, the Honeywell 51309276-175 HPM High-Performance Process Manager serves as the primary controller upgrade target. The 51304685-100 UCN card must remain operational during the transition period to maintain communication between legacy I/O subsystems and the new Experion C300 controllers. Simultaneously, Honeywell 51304485-100 UCN Tap Assemblies and coaxial segment terminators should be inspected and replaced to eliminate intermittent network faults that can mask the root cause of communication errors.

On the I/O side, Honeywell 51305890-175 FTA (Field Termination Assembly) units connected to the HPM chassis are often refurbished or replaced during the same maintenance window, as their wiring terminations directly affect signal integrity reported through the UCN card. For power supply redundancy within the TDC 3000 cabinet, the Honeywell 51190076-100 Power Entry Module should be verified for output stability — voltage sags are a known cause of UCN communication card resets.

Plants operating Honeywell 51198947-100 AM (Application Module) nodes on the LCN will need to validate that historian and advanced control applications continue to receive UCN data correctly after the card swap. Where serial communication bridges are in use, Honeywell 51304441-100 Data Hiway Interface modules may also require firmware alignment. Finally, for sites integrating SCADA or third-party DCS platforms via Modbus or HART, a Honeywell 51196659-100 Multifunction Processor can serve as a protocol gateway, preserving existing field wiring while the UCN backbone is modernized.

Retrofit Guidance FAQ

Q: Can I replace the 51304685-100 without taking the UCN segment offline?
A: Hot-swap is supported on TDC 3000 systems running firmware revision 520 and above, provided the UCN segment is quiesced via the Universal Station before card removal. On earlier firmware, a controlled cold-swap during a planned maintenance window is recommended to avoid network partition errors.

Q: Will the replacement card retain the original UCN node address?
A: UCN node addressing on the 51304685-100 is configured via DIP switches on the card face. The address is not stored in non-volatile memory on the card itself, so the replacement unit must be manually set to match the original node address before insertion. Document the existing switch positions before removal.

Q: Is the 51304685-100 compatible with both coaxial and fiber UCN segments?
A: The -100 revision supports coaxial UCN topology. Fiber UCN segments require the -150 or -200 revision with the appropriate fiber transceiver module. Verify your plant’s UCN wiring diagram before ordering.

Q: Do I need to reload controller logic after replacing the UCN card?
A: No. Controller logic resides in the PM/APM/HPM processor module, not in the UCN communications card. After card replacement and UCN re-initialization, the controller will resume normal operation without a program reload. A checkpoint restore may be required if the controller lost state during the swap.

Q: What physical space and mounting requirements apply?
A: The 51304685-100 occupies a single slot in the standard TDC 3000 card file. No additional mounting hardware is required. Verify that the target slot is designated for a UCN card in the system’s I/O assignment documentation before installation.

Warranty Assurance

Every 51304685-100 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes functional verification including UCN communication handshake testing, power rail checks, and visual inspection for capacitor aging, corrosion, and connector integrity. Units that do not pass our outgoing quality inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time is within 24 hours on business days. We support customers through the installation and commissioning phase with technical documentation and remote guidance where required.

Stock is maintained in Xiamen, China, with express international shipping available to most industrial regions including Southeast Asia, the Middle East, Europe, and the Americas. Lead time for in-stock units is typically 3–7 business days door-to-door. For urgent plant shutdowns, expedited air freight options are available — contact our team directly to arrange priority dispatch.

TOPNLMS specializes in legacy DCS and PLC spare parts procurement, with a focus on Honeywell TDC 3000, Experion PKS, Yokogawa CENTUM, ABB Advant, and Siemens SIMATIC platforms. Our inventory is sourced from decommissioned systems, authorized distributors, and manufacturer surplus — all units are tested and documented before listing.
