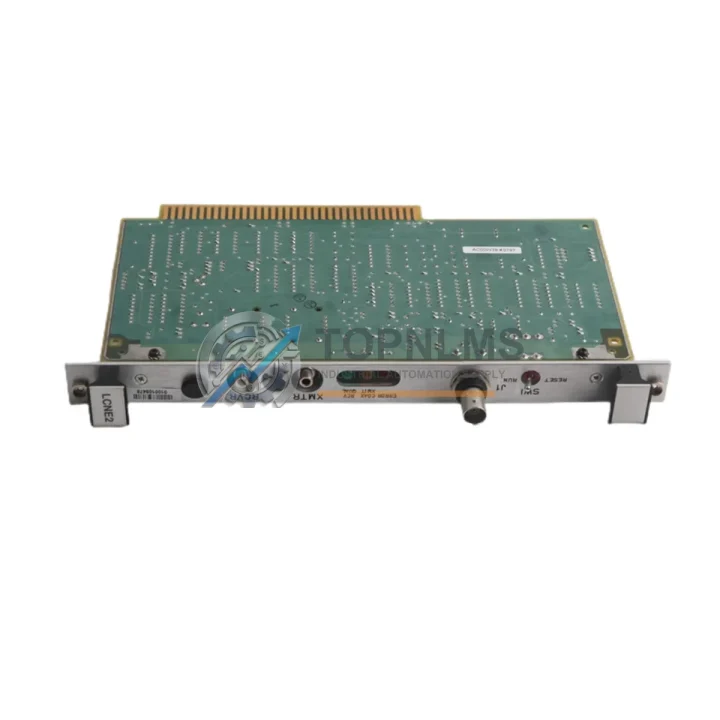

Honeywell 51304540-200 Ruggedized DCS Backplane Interface Module

Product Overview

Honeywell 51304540-200 Ruggedized DCS Backplane Interface Module for Harsh Industrial Environments

The Honeywell 51304540-200 — widely known as the TDC 3000 / TPS Paddle Board — is a mission-critical backplane interface module engineered for continuous, uninterrupted operation in the most demanding industrial environments on earth. Whether deployed in a high-temperature oil refinery, a dust-laden mining control room, a high-humidity coastal LNG terminal, or a heavy-vibration steel rolling mill, this module delivers the signal integrity, mechanical resilience, and long-term reliability that distributed control system (DCS) infrastructure demands. For facilities where a single unplanned outage can cost hundreds of thousands of dollars per hour, the 51304540-200 is not a commodity spare — it is a strategic asset.

At its core, the 51304540-200 provides a stable, low-impedance electrical bridge between the TPS processor cards and the I/O termination assemblies within the TDC 3000 cabinet. Its gold-plated edge connectors resist oxidation and micro-arcing even after years of service in corrosive or chemically aggressive atmospheres. The conformal-coated PCB construction protects against moisture ingress, condensation, and airborne particulates — failure modes that are endemic to process industries operating around the clock without scheduled downtime. Mechanical retention clips prevent connector loosening under the sustained vibration generated by compressors, crushers, and large rotating machinery, ensuring that every analog input, digital output, and fieldbus signal is routed without degradation across the full service life of the module.

Rugged Specifications Table

Comprehensive Protection Solutions

The Honeywell 51304540-200 operates at the center of a tightly integrated ecosystem of TDC 3000 / TPS control hardware, and its reliability directly determines the operational continuity of every module connected to the backplane. In a fully populated TDC 3000 cabinet, it works in concert with the 51304453-150 Power Entry Module, which conditions incoming AC/DC power and shields downstream processor cards from the voltage transients generated by arc furnaces, large motor drives, and variable-frequency drives (VFDs) common in heavy industry. The 51401288-100 Universal Control Network Interface (UCNI) card depends on the backplane’s signal routing to maintain real-time, deterministic communication between the process manager and the plant-wide control network — any degradation at the backplane level propagates immediately into network latency and control loop instability.

On the field I/O side, the 51304540-200 supports the full range of Honeywell termination assemblies, including the 51304441-150 Analog Input Module for 4–20 mA field instrument signals and the 51304362-175 Digital Output Module for discrete actuator and solenoid valve control. The 51304516-100 Hiway Gateway Module relies on the backplane’s physical integrity to bridge the TDC 3000 Data Hiway with legacy field devices, while the 51309218-175 Data Hiway Interface card uses the same backplane routing for plant-wide SCADA integration. In facilities where redundant power and bumpless processor transfer are mandatory — such as nuclear auxiliary systems, LNG liquefaction trains, and offshore platform control rooms — the 51304540-200 works in concert with redundant 51401195-100 Application Module pairs and the 51309276-175 Enhanced Operator Station to ensure zero-interruption failover. Safety relay modules, fieldbus communication cards, and terminal block assemblies throughout the control cabinet all depend on the electrical and mechanical integrity that the 51304540-200 provides at the backplane level.

Application in Critical Infrastructure

The Honeywell 51304540-200 has a proven service record across the most demanding sectors of global heavy industry. In oil and gas upstream and midstream operations, it supports TDC 3000 systems governing wellhead pressure control, pipeline SCADA, and compressor station automation — environments where ambient temperatures routinely exceed 50°C and electromagnetic interference from VFDs and high-voltage switchgear is constant. In petrochemical and refinery complexes, it underpins the distributed control of distillation columns, reactor temperature loops, and emergency shutdown sequences that must maintain SIL 2 or SIL 3 integrity levels under IEC 61511.

In power generation — coal-fired, gas turbine, or hydroelectric — the module maintains backplane integrity for boiler management systems and turbine control panels that cannot tolerate unplanned downtime. Water and wastewater treatment facilities rely on TDC 3000 platforms for chemical dosing, filtration control, and effluent monitoring, where the 51304540-200 ensures continuous I/O communication despite the high-humidity, chemically aggressive atmosphere of treatment halls. In metallurgy and mining, where vibration from crushers, ball mills, and conveyor drives is relentless, the module’s mechanical robustness prevents the intermittent contact failures that cascade into process shutdowns. For facilities operating under IEC 61511 or IEC 61508 safety instrumented system requirements, maintaining a verified, tested spare inventory of backplane interface modules is both a regulatory obligation and an operational necessity — and TOPNLMS maintains serialized stock to meet that requirement on short notice.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each module is individually tested and serialized before dispatch. If a unit fails within the warranty period, TOPNLMS will provide a replacement or full refund — no questions asked.

Q2: How is each module tested before shipment?
Every 51304540-200 undergoes a multi-stage inspection: visual PCB inspection, gold-edge connector integrity check, functional power-on test, and serialization logging. Units that do not pass all stages are quarantined and never shipped. A test report is available upon request for critical-infrastructure procurement teams.

Q3: Is the 51304540-200 compatible with all TDC 3000 and TPS cabinet configurations?
Yes. The 51304540-200 is a genuine Honeywell OEM component designed for the TDC 3000 / TPS platform and is compatible with PM, APM, and HPM processor families. If you are unsure about compatibility with a specific cabinet revision or firmware version, contact our technical team at [email protected] before ordering.

Q4: Can TOPNLMS support long-term or recurring supply of this module?
Yes. TOPNLMS maintains a dedicated inventory of Honeywell TDC 3000 / TPS spare parts to support both emergency replacement and planned maintenance programs. We can establish blanket purchase orders, consignment stock arrangements, or scheduled delivery programs for facilities with ongoing lifecycle management requirements. Contact us at +86 18359293191 to discuss your supply continuity needs.
