Honeywell 51304487-100 MU-PDOX02 Replacement for MU-Series DCS

Product Overview

Honeywell 51304487-100 MU-PDOX02 Replacement for MU-Series DCS: Seamless Transition & Legacy System Compatibility

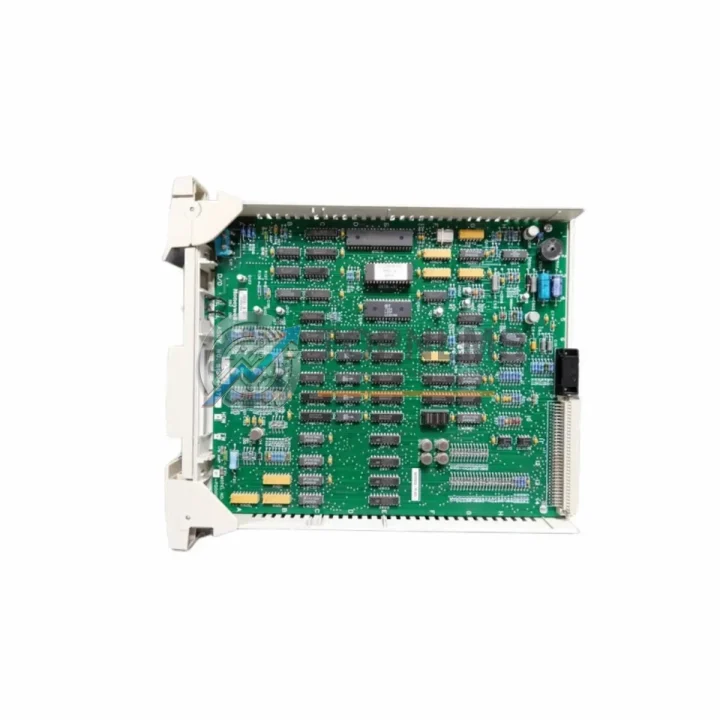

The Honeywell 51304487-100 MU-PDOX02 is a 24 VDC Digital Output Module engineered for the Honeywell MU-Series I/O platform, widely deployed across Experion PKS, TDC 3000, and PlantScape distributed control systems. As these platforms age and original spare parts become increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacement modules that maintain full backward compatibility with existing field wiring, marshalling cabinets, and control logic — without triggering a full system migration or extended shutdown.

TOPNLMS stocks the 51304487-100 MU-PDOX02 as a direct drop-in replacement, tested and verified against Honeywell MU-Series specifications. Whether you are replacing a failed module during an emergency shutdown, building a strategic spare parts inventory, or executing a phased modernization of your DCS infrastructure, this module delivers the electrical and functional compatibility your system demands.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MU-PDOX02 replacement rarely happens in isolation. In most Experion PKS and TDC 3000 installations, the digital output module operates as part of a tightly integrated I/O subsystem. During a module swap or broader DCS modernization project, engineers typically need to address several adjacent components to ensure system integrity.

On the input side, the MU-PDIX02 Digital Input Module shares the same MU-Series rack and marshalling architecture, and is frequently replaced alongside the MU-PDOX02 when an I/O chassis is being refurbished. Similarly, the MU-PAOX02 Analog Output Module and MU-PAIX02 Analog Input Module are common co-replacements in mixed I/O racks where both digital and analog signals are processed within the same control loop.

Power integrity is critical in any DCS retrofit. The MU-Series I/O rack relies on a dedicated power supply module — typically the MU-PSIM11 or equivalent — to maintain stable 24 VDC distribution across all installed I/O modules. When replacing the MU-PDOX02, it is advisable to inspect and, if necessary, replace the power supply module to eliminate the risk of voltage fluctuation causing nuisance trips or output state errors after commissioning.

Field termination is another key consideration. The MU-PDOX02 interfaces with field devices through Honeywell MU-Series terminal blocks and marshalling panels. In aging installations, corroded or loose terminal connections are a common root cause of intermittent DO faults. Replacing or re-torquing the associated terminal assemblies during the module swap significantly reduces the risk of post-installation callbacks.

For sites running Experion PKS with C300 or C200 controllers, the communication path between the controller and the MU-Series I/O is managed through the FIM (Field Interface Module) or equivalent gateway hardware. Verifying the FIM firmware version and its compatibility with the replacement MU-PDOX02 revision is a recommended pre-installation step, particularly in systems that have not been updated in several years.

In TDC 3000 environments, the HPM (High-Performance Process Manager) and its associated I/O Link modules govern communication with MU-Series I/O. When upgrading from an older MU-PDOX02 revision, confirming HPM firmware compatibility ensures that the new module is correctly enumerated on the I/O Link without requiring a controller restart or logic download.

Finally, for sites undertaking a broader migration from TDC 3000 to Experion PKS, the MU-PDOX02 can often be retained as part of a hybrid architecture during the transition period, with the Experion C300 controller managing legacy MU-Series I/O through the appropriate interface hardware. This phased approach minimizes capital expenditure and allows production to continue while the migration is executed in stages.

Retrofit Guidance FAQ

Q: Can I replace the MU-PDOX02 without rewiring field cables?
A: Yes. The 51304487-100 MU-PDOX02 uses the standard MU-Series marshalling terminal interface. Field wiring connects to the terminal block assembly, not directly to the module, so a module swap does not require any field cable changes. Simply remove the failed module, insert the replacement, and verify output states in the DCS operator station.

Q: Do I need to download a new control program after replacing the module?
A: In most cases, no. The MU-PDOX02 is a hardware replacement that maintains the same I/O address and channel mapping as the original. However, if the replacement module has a different firmware revision, a partial download or module re-initialization may be required. Consult your Experion PKS or TDC 3000 system documentation and confirm with your DCS engineer before proceeding.

Q: Is the MU-PDOX02 compatible with both Experion PKS and TDC 3000?
A: Yes. The MU-Series I/O platform was designed to operate across Honeywell’s DCS product family, including TDC 3000, PlantScape, and Experion PKS. The 51304487-100 revision is compatible with all three platforms, subject to firmware and FIM/HPM version requirements at your specific site.

Q: What is the physical installation space requirement?
A: The MU-PDOX02 occupies a single standard slot in the MU-Series I/O rack. No additional space or mechanical modification is required. The module is designed for tool-free insertion and removal, supporting rapid replacement during planned or emergency maintenance windows.

Q: How do I verify the module is functioning correctly after installation?
A: After insertion, the module’s status LED should illuminate green within the normal boot sequence. From the Experion PKS Station or TDC 3000 Universal Station, navigate to the I/O module status display and confirm that all 16 digital output channels are reporting correctly. Force-test individual channels against known field device states to validate wiring continuity before returning the loop to automatic control.

Q: Can this module be used as a long-term spare for a site with multiple MU-Series racks?
A: Absolutely. The 51304487-100 MU-PDOX02 is fully interchangeable across all MU-Series racks of the same generation. Maintaining a minimum of one spare per critical process unit is a widely adopted best practice in DCS-dependent industries such as refining, petrochemicals, power generation, and pharmaceuticals.

Warranty Assurance

Every Honeywell 51304487-100 MU-PDOX02 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes a multi-point functional inspection including visual examination, power-on self-test, and output channel verification to confirm that the unit meets MU-Series operational specifications.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our technical support team with your order number and a description of the fault, and we will arrange a replacement unit or issue a credit note within the agreed service window. We do not require the customer to return the failed unit before dispatching a replacement in urgent production-critical situations.

Our inventory is sourced from verified supply channels and stored in a controlled environment to prevent ESD damage and humidity-related degradation. Each unit is individually packaged with anti-static protection and ships with a packing list confirming the part number, revision, and serial number.

For time-sensitive procurement, TOPNLMS maintains ready stock of the MU-PDOX02 and can arrange same-day dispatch for orders confirmed before 15:00 CST. International shipments are handled via DHL Express, FedEx International Priority, or equivalent carriers, with full tracking provided from Xiamen to your facility.

For bulk orders, long-term supply agreements, or technical pre-sales consultation, please contact our industrial automation team directly.
