Honeywell 51304483-100 Ruggedized Analog Output Module

Product Overview

Honeywell 51304483-100 Ruggedized Analog Output Module: Industrial Resilience for Harsh Environments

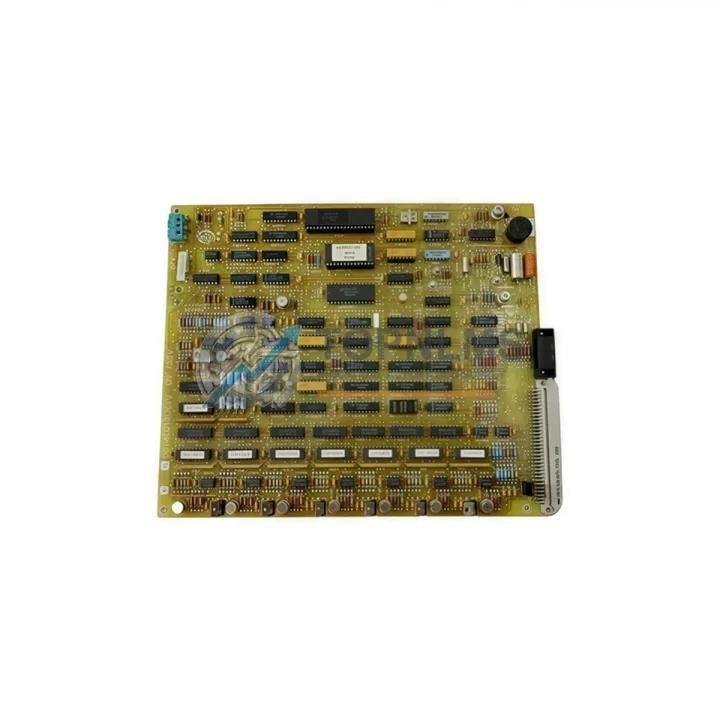

The Honeywell 51304483-100 is a high-reliability analog output module (AOM) engineered for continuous, fault-tolerant operation within the Honeywell TDC 3000 High-Performance Process Manager (HPM) distributed control system (DCS) architecture. Built to withstand the most demanding industrial conditions — including sustained high temperatures, high-humidity atmospheres, airborne particulate contamination, mechanical vibration, and severe electromagnetic interference (EMI) — this module delivers stable, precision 4–20 mA analog signal output across all operating extremes.

Deployed in refineries, power stations, chemical processing plants, and heavy manufacturing facilities worldwide, the 51304483-100 is a mission-critical spare part for any facility running Honeywell TDC 3000 or HPM control infrastructure. At TOPNLMS, every unit is sourced from verified supply channels, subjected to structured pre-shipment functional testing, and dispatched with full traceability documentation. Our inventory is maintained in climate-controlled storage to preserve module integrity prior to deployment.

Rugged Specifications Table

Comprehensive Protection Solutions

The 51304483-100 analog output module functions as a critical node within a broader TDC 3000 / HPM control architecture. In harsh industrial environments — where dust ingress, thermal cycling, and power quality fluctuations are constant operational realities — the reliability of this module depends equally on the integrity of surrounding components.

When deploying or replacing the 51304483-100, engineers typically evaluate the condition of the Honeywell 51304516-150 HPM I/O Link Interface Module, which manages communication between the HPM controller and the I/O subsystem. A degraded link interface can introduce signal latency or output errors even when the analog output module itself is functioning correctly. Power integrity is equally critical: the Honeywell 51401544-150 Power Entry Module and associated 51109684-100 Power Supply Module provide the regulated DC power rails that the 51304483-100 relies on for stable channel output. In environments with frequent voltage fluctuations — common in mining substations or heavy manufacturing facilities — a failing power supply is often the root cause of intermittent analog output drift.

On the signal conditioning side, the Honeywell 51304485-100 Analog Input Module is frequently deployed alongside the 51304483-100 in closed-loop control configurations. Together, they form the feedback and command layer for process variables such as flow, pressure, temperature, and level. In refinery or chemical plant applications, these two modules are often replaced as a matched pair during scheduled maintenance shutdowns to ensure loop integrity. For installations where the TDC 3000 system interfaces with third-party field devices or legacy HART instruments, the Honeywell 51304362-150 HLAI Module (High-Level Analog Input) provides the necessary signal translation layer — ensuring this module is operational is essential before commissioning new analog output channels.

The 51401598-200 TDC 3000 Control Board governs overall HPM processing logic and must be verified for firmware compatibility when introducing replacement I/O modules into an existing rack. At the field wiring level, the Honeywell 51202329-501 Field Termination Assembly (FTA) provides the physical interface between field instruments and HPM I/O modules including the 51304483-100. A corroded or loose FTA connection is a common source of analog output signal degradation in long-running process plants — replacing the FTA in conjunction with the output module ensures a clean, verified signal path from controller to field actuator. In safety-instrumented system (SIS) architectures, the Honeywell FSC Safety Controller and associated safety I/O modules may also share the same control cabinet, making EMI shielding and power rail isolation between standard and safety-rated modules a key engineering consideration.

Application in Critical Infrastructure

Oil & Gas Processing: In upstream and midstream facilities, the 51304483-100 drives control valve positioners and variable-speed pump drives via 4–20 mA command signals. Offshore platforms and onshore gas compression stations rely on HPM analog output modules to maintain precise pressure and flow regulation in hazardous classified areas. The module’s robust backplane design and isolated channel architecture reduce the risk of cross-channel interference in multi-loop control configurations common in ATEX and IECEx-rated zones.

Power Generation: Coal-fired, gas turbine, and combined-cycle power plants use TDC 3000 HPM systems for boiler combustion control, turbine governor interfacing, and auxiliary system management. The 51304483-100 provides analog command signals to fuel control valves, damper actuators, and cooling system regulators. In these applications, module availability is critical — an unplanned outage caused by a failed analog output card can trigger a forced plant shutdown with significant financial and safety consequences.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operating Honeywell TDC 3000 systems use analog output modules to control chemical dosing pumps, aeration blowers, and filtration system actuators. The 51304483-100’s tolerance for humid, chemically aggressive environments makes it well-suited for pump station and treatment plant control rooms where corrosion resistance and signal stability are non-negotiable.

Metallurgy & Heavy Industry: Steel mills, aluminum smelters, and cement plants subject control hardware to extreme thermal loads, vibration, and electromagnetic noise from large motor drives and arc furnaces. The HPM platform’s industrial-grade design, combined with the 51304483-100’s isolated output channels, provides the signal fidelity required for precise temperature and flow control in these environments. Variable frequency drives (VFDs), proportional control valves, and servo actuators all depend on clean, stable 4–20 mA command signals that this module reliably delivers.

Mining Operations: Underground and surface mining operations use TDC 3000 systems for conveyor control, ventilation management, and ore processing automation. The 51304483-100 interfaces with VFDs and proportional control valves in these applications, where dust, vibration, and power quality challenges are constant operational factors. Its rugged card cage mounting and backplane isolation make it a dependable choice for remote mining control rooms operating in harsh climatic conditions.
