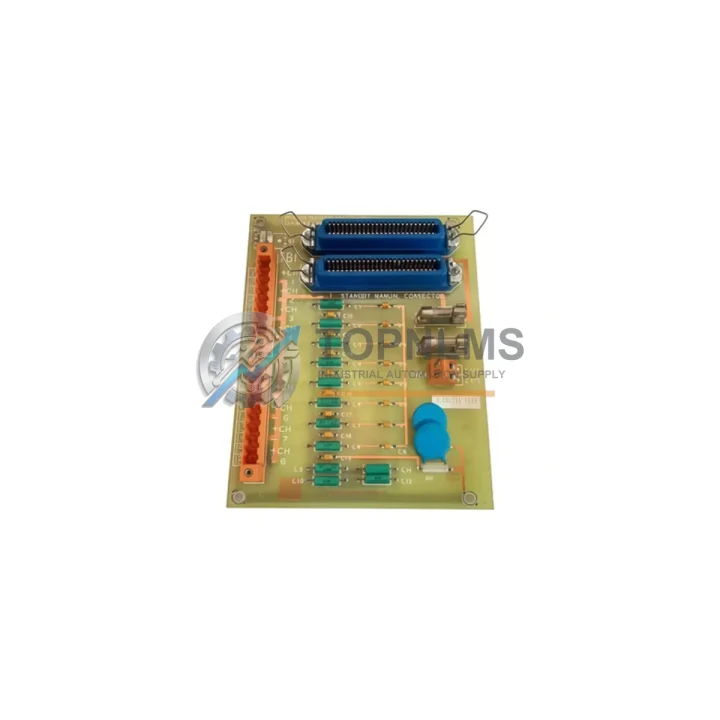

Honeywell 51304476-100 Ruggedized Analog Output Module for Harsh Environments

Product Overview

Honeywell 51304476-100 Ruggedized Analog Output Termination Board: Industrial Resilience for Harsh Environments

The Honeywell 51304476-100 is a precision-engineered analog output termination board designed for the TDC 3000 Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in the world. Built to Honeywell’s stringent industrial standards, this termination board delivers reliable signal conditioning and field wiring interface capabilities in environments where failure is not an option: high-temperature process plants, high-humidity coastal facilities, dust-laden mining operations, vibration-intensive heavy manufacturing lines, and electromagnetically noisy power generation sites.

In continuous production environments — oil refineries, chemical plants, LNG terminals, and metallurgical smelters — the integrity of analog output signals directly governs the precision of control valve positioning, variable-speed drive commands, and actuator feedback loops. The 51304476-100 termination board serves as the critical interface between the TDC 3000 controller subsystem and field instrumentation, ensuring that 4–20 mA analog output signals are transmitted with minimal noise, drift, or attenuation even under sustained electromagnetic interference (EMI) and radio-frequency interference (RFI) conditions common in heavy industrial switchgear rooms and motor control centers.

Rugged Specifications Table

Comprehensive Protection Solutions

The 51304476-100 does not operate in isolation — it is a foundational component within a broader Honeywell TDC 3000 control architecture. In a typical process plant control cabinet, this termination board works in concert with the Honeywell 51304453-150 High-Performance Process Manager (HPM) I/O Link Module, which manages the data highway communication between field I/O and the operator station. Upstream, the Honeywell 51401642-150 Universal Control Network (UCN) Interface Module coordinates plant-wide data exchange, ensuring that analog output commands from the DCS reach field devices without latency or packet loss.

For power integrity — a critical factor in analog signal accuracy — the termination board is typically paired with the Honeywell 51196896-100 Power Entry Module, which provides regulated DC bus voltage to the I/O subsystem. In installations where safety instrumented functions are required, the Honeywell 51309276-150 Safety Manager I/O Module operates alongside the analog output termination board to enforce SIL 2 or SIL 3 shutdown logic without interrupting normal process control outputs.

Communication integrity across the plant network is maintained by the Honeywell 51304516-150 Data Hiway Interface (DHI) Module, which bridges the TDC 3000 LCN (Local Control Network) to field bus segments. In multi-loop control scenarios involving variable-speed drives and motor starters, the analog output signals from the 51304476-100 are often routed through Honeywell 51309218-175 Analog Input/Output Combination Modules for cross-validation and redundancy checking. Relay output modules such as the Honeywell 51304441-150 Digital Output Module complement the analog outputs by handling discrete switching commands to solenoid valves, contactors, and alarm annunciators within the same control cabinet.

For installations requiring terminal block flexibility, the 51304476-100 is compatible with standard Honeywell MC-TAIH02 and MC-TAIH12 series I/O termination assemblies, enabling modular field wiring without rewiring the entire cabinet during a spare-part replacement. This plug-and-play termination philosophy significantly reduces mean time to repair (MTTR) during unplanned outages.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the Honeywell 51304476-100 termination board is deployed in wellhead control panels, compressor station DCS cabinets, and pipeline SCADA integration racks. Its ability to maintain analog output accuracy under wide ambient temperature swings — from desert heat to arctic cold — makes it a preferred choice for remote unmanned installations where manual recalibration is impractical.

In petrochemical and refinery environments, where continuous catalytic cracking, distillation column control, and reactor temperature management demand sub-1% analog output accuracy, the 51304476-100 provides the signal fidelity required to maintain product quality and process safety. Its compatibility with the TDC 3000 HPM architecture means it integrates directly into existing Honeywell DCS installations without requiring firmware upgrades or configuration changes.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the termination board supports boiler combustion control, turbine governor analog outputs, and generator excitation system interfaces. The board’s robust shielding and grounding design suppresses the high-frequency EMI generated by large rotating machinery and high-voltage switchgear, protecting signal integrity across long cable runs from the control room to field junction boxes.

In water and wastewater treatment plants, the 51304476-100 controls pump speed references, chemical dosing valve positions, and aeration basin dissolved oxygen setpoints via 4–20 mA outputs. Its corrosion-resistant construction and tolerance for high-humidity environments make it suitable for wet process areas where condensation and chemical vapors are persistent concerns.

In metallurgical and mining operations — including blast furnace control, rolling mill automation, and ore processing plants — the termination board withstands the extreme vibration, dust ingress, and electrical noise generated by heavy machinery, maintaining reliable analog output performance throughout multi-year continuous production campaigns.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the Honeywell 51304476-100?
The 12-month warranty covers all functional defects, signal accuracy failures, and hardware malfunctions arising from normal industrial use. If the module fails within the warranty period, TOPNLMS will provide a full replacement unit or arrange depot repair at no additional cost. Warranty claims are processed within 5 business days of receiving the returned unit, and a replacement is dispatched immediately upon confirmation of the defect.

Q2: How is each unit tested before shipment?
Every Honeywell 51304476-100 unit undergoes a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, power-on functional test verifying analog output channel continuity and signal accuracy, and compatibility verification against TDC 3000 system documentation. Units that do not pass all test stages are quarantined and not offered for sale. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 51304476-100 compatible with my existing TDC 3000 DCS installation?
Yes. The 51304476-100 is a direct form-fit-function replacement for the original Honeywell TDC 3000 analog output termination board. It is compatible with HPM, LCN, and UCN subsystem architectures without requiring any hardware or software modifications. If you are uncertain about compatibility with a specific TDC 3000 revision or cabinet configuration, our technical team can review your system documentation and confirm compatibility before you place an order.

Q4: Can TOPNLMS guarantee long-term supply for ongoing maintenance and spare-part programs?
Yes. TOPNLMS maintains a dedicated inventory of Honeywell TDC 3000 legacy components, including the 51304476-100 and related termination boards, I/O modules, and communication interfaces. We understand that process plants operating legacy DCS platforms require reliable spare-part availability over multi-decade plant lifecycles. Our procurement team actively sources and qualifies stock to support long-term maintenance contracts, annual spare-part budgets, and emergency breakdown replacement requirements. Contact us to discuss volume pricing and reserved-stock arrangements.
