Honeywell 51304465-500 I/O Link Cable Upgrade Solution

Product Overview

Honeywell 51304465-500 I/O Link Cable Upgrade Solution: Seamless Transition from Legacy TDC-3000 to Experion PKS

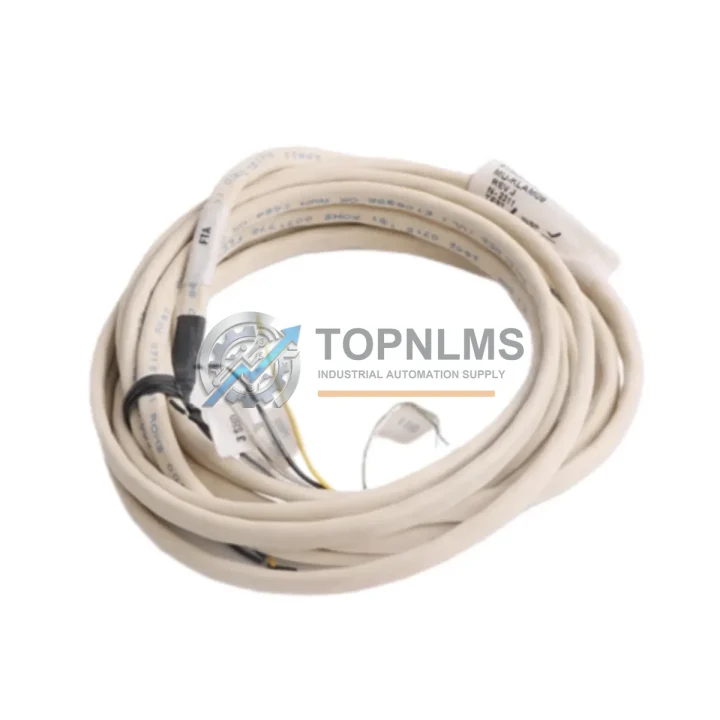

The Honeywell 51304465-500 I/O Link Cable is a critical interconnect component within the Honeywell TDC-3000 and Experion PKS Distributed Control System (DCS) architecture. As legacy TDC-3000 installations approach end-of-life and facilities migrate toward the Experion PKS platform, maintaining a reliable supply of this cable assembly is essential to sustaining uninterrupted process control operations. TOPNLMS stocks verified replacement units of the 51304465-500, enabling engineering teams to execute planned migrations and emergency replacements with minimal disruption to production schedules.

The 51304465-500 serves as the physical communication backbone between I/O Link Modules and field termination assemblies within the Honeywell DCS cabinet. Its pinout, connector geometry, and shielding specification are engineered to meet the signal integrity requirements of the I/O Link protocol — a proprietary Honeywell serial communication standard used across the TDC-3000 High-Performance Process Manager (HPPM), the Advanced Process Manager (APM), and the Experion PKS C300 controller environment. When this cable degrades or fails, the associated I/O subsystem loses communication with the controller, triggering process alarms and potential unplanned shutdowns.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC-3000 to Experion PKS migration rarely involves a single component. In practice, the 51304465-500 cable replacement is one element of a broader I/O subsystem refresh. Engineering teams undertaking this migration typically address the I/O Link Module itself — such as the Honeywell 51304453-150 or 51304453-175 I/O Link Module — alongside the cable, ensuring that both the active electronics and the interconnect are renewed simultaneously. This eliminates the risk of a degraded module masking cable-related diagnostics.

On the field termination side, the Honeywell 51196694-100 Field Termination Assembly (FTA) and associated 51304516-100 FTA mounting hardware are commonly replaced during the same maintenance window. Refreshing the FTA alongside the I/O Link cable ensures that aging screw terminals, which are a frequent source of intermittent signal faults in TDC-3000 installations, are eliminated from the fault tree before commissioning the upgraded subsystem.

For facilities transitioning to the Experion PKS C300 controller architecture, the Honeywell CC-PAIX01 Analog Input module and CC-PDOB01 Digital Output module represent the modern I/O equivalents that the 51304465-500 cable infrastructure supports. Ensuring cable integrity at this layer is a prerequisite for achieving the signal accuracy specifications that the C300 platform demands. Similarly, the Honeywell CC-PCF901 FOUNDATION Fieldbus Interface module, where installed, relies on clean I/O Link communication paths to maintain fieldbus segment health.

Power distribution within the DCS cabinet is another area of focus during migration. The Honeywell 51190076-100 Power Entry Module and associated DC power distribution assemblies should be inspected and, where necessary, replaced to ensure that the refreshed I/O Link subsystem receives stable, within-specification DC supply voltages. Voltage sag or ripple at the I/O Link Module power input is a known cause of intermittent communication errors that can be misdiagnosed as cable faults.

Where the migration scope includes communication gateway upgrades, the Honeywell 51304362-100 Data Hiway Interface or its Experion PKS equivalent should be evaluated for compatibility with the updated I/O Link segment. Ensuring that the gateway firmware revision supports the I/O Link protocol version in use on the refreshed segment prevents communication handshake failures during post-migration commissioning.

Retrofit Guidance FAQ

Q: Does replacing the 51304465-500 require re-programming the TDC-3000 or Experion PKS controller?
A: No. The 51304465-500 is a passive cable assembly. Replacing it does not alter controller configuration, I/O point addressing, or process variable scaling. After cable replacement, the I/O Link Module will re-establish communication automatically on the next power cycle or I/O Link reset command issued from the Honeywell Engineering Workstation (EWS). No Control Builder or TDC-3000 UCN configuration changes are required.

Q: Is the 51304465-500 physically interchangeable between TDC-3000 and Experion PKS cabinets?
A: Yes. The connector geometry and cable routing dimensions are consistent across both platforms. The cable can be installed in standard Honeywell DCS cabinets without modification to cable trays, backplane connectors, or cabinet door clearances. Verify cable length against your specific cabinet layout before installation.

Q: What communication protocol does the I/O Link use, and is it affected by the cable replacement?
A: The I/O Link protocol is a Honeywell-proprietary serial communication standard. It is implemented at the module level and is entirely transparent to the cable layer. Replacing the 51304465-500 with an OEM-specification unit does not alter protocol behavior, baud rate, or addressing. Signal integrity improvements from a new cable may, however, resolve intermittent CRC error counts visible in the Honeywell Station Display or Experion PKS Alarm Summary.

Q: How much physical space does the cable replacement require inside the DCS cabinet?
A: The 51304465-500 follows the standard Honeywell DCS cable routing envelope. No additional cabinet space is required. The replacement procedure involves disconnecting the existing cable at both the I/O Link Module backplane and the FTA interface, routing the new cable along the existing cable management path, and reconnecting. Total elapsed time for an experienced DCS technician is typically 15–30 minutes per cable, excluding I/O Link re-initialization and functional verification.

Q: Can the 51304465-500 be used as a direct spare for multiple I/O Link Module types?
A: The 51304465-500 is specified for use with the Honeywell I/O Link Module family across the TDC-3000 and Experion PKS platforms. Confirm the specific I/O Link Module part number in your installation against the Honeywell hardware compatibility matrix before ordering. TOPNLMS technical support can assist with cross-referencing your existing module part numbers to confirm cable compatibility.

Warranty Assurance

Every Honeywell 51304465-500 I/O Link Cable shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to dispatch, each unit undergoes visual inspection for connector integrity, cable jacket condition, and shielding continuity. Units that do not meet OEM-equivalent quality standards are quarantined and excluded from inventory.

In the event of a warranty claim, TOPNLMS provides a direct replacement unit at no additional cost, with priority dispatch to minimize impact on your maintenance schedule. Our technical support team is available to assist with installation guidance, compatibility verification, and post-replacement commissioning questions. Response time for warranty and technical inquiries is within one business day.

For procurement teams managing planned maintenance shutdowns or emergency spares programs, TOPNLMS can provide advance stock reservation, batch inspection reports, and consolidated shipping for multi-line DCS spare parts orders. Lead times and stock availability for the 51304465-500 and related Honeywell DCS components are confirmed at the time of inquiry.

Contact our industrial automation specialists to confirm stock availability, request a quotation, or discuss your TDC-3000 / Experion PKS migration requirements.
