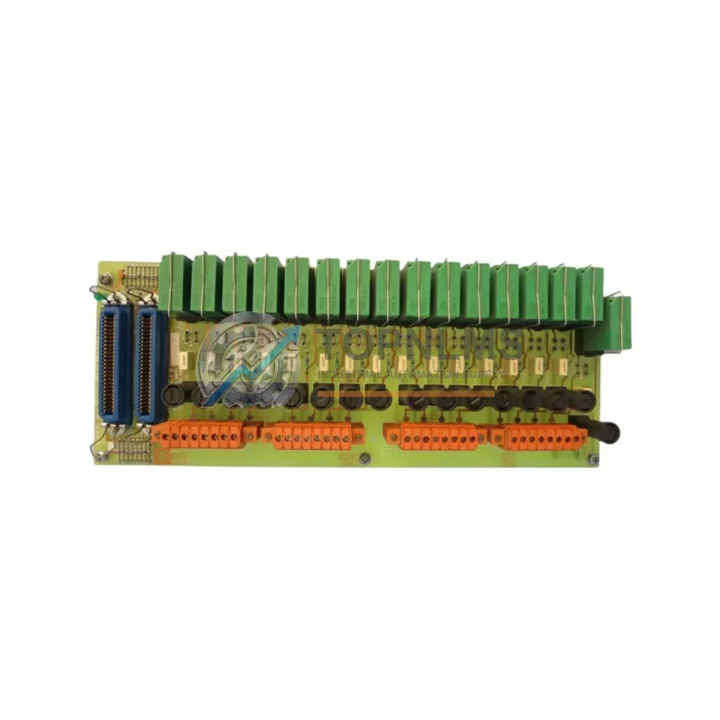

Honeywell 51304443-100 MU-TDOR12 Replacement for TDC 3000

Product Overview

Honeywell 51304443-100 MU-TDOR12 Replacement for TDC 3000: Seamless Migration & Smooth Transition

Migrating away from an aging Honeywell TDC 3000 distributed control system is one of the most critical decisions a plant engineer faces. The Honeywell 51304443-100 MU-TDOR12 Digital Output Module has served reliably in countless process control installations across refining, petrochemical, and power generation facilities. When this module reaches end-of-life or becomes unavailable through standard channels, the risk of unplanned downtime escalates rapidly. TOPNLMS stocks verified replacement and upgrade-compatible units of the 51304443-100 / MU-TDOR12 to ensure your TDC 3000 system continues operating without interruption while you plan a structured migration path.

The MU-TDOR12 is a 12-channel relay digital output board designed for use within the Honeywell TDC 3000 High-Performance Process Manager (HPM) and Process Manager (PM) subsystems. It interfaces directly with the standard TDC 3000 I/O Link and communicates via the proprietary UCN (Universal Control Network) protocol. When replacing this module, engineers must verify that the field wiring termination assembly — typically a Honeywell MU-TAIH12 or MU-TAIH22 terminal assembly — remains compatible, as the 40-pin ribbon connector pinout is preserved across genuine replacement units. No field rewiring is required when a direct-replacement module is installed, dramatically reducing the maintenance window.

For sites planning a phased migration from TDC 3000 to the Honeywell Experion PKS platform, the MU-TDOR12 replacement strategy often runs in parallel with the introduction of Honeywell PMIO I/O modules and C300 Controller nodes. During the transition period, the existing TDC 3000 HPM cabinet continues to handle legacy loops while new Experion C300 controllers take over modernized control strategies. Keeping a spare 51304443-100 on hand ensures that any HPM node failure during this overlap period does not force an emergency cutover before the migration schedule is ready.

Power supply integrity is another key consideration. The MU-TDOR12 draws its logic power from the HPM card file backplane, which is typically fed by a Honeywell MU-PSSU11 or MU-PSSU22 power supply module. Before installing a replacement output board, it is good practice to verify that the backplane power rails are within specification. A degraded power supply can cause intermittent relay chatter or false output states that are easily misdiagnosed as a faulty output module. Confirming power supply health first eliminates this variable and protects the replacement module from premature failure.

Communication architecture in the TDC 3000 environment relies on the UCN coaxial highway and the Local Control Network (LCN). The MU-TDOR12 does not communicate directly on the LCN; instead, it reports through the HPM’s I/O Link to the Process Manager, which in turn communicates upstream. This means that replacing the output board does not require any changes to the Honeywell NIM (Network Interface Module) or HG (Highway Gateway) configuration. The module swap is transparent to the control strategy, and no database download or controller restart is required in most cases — a significant advantage for minimizing process disruption.

For installations where the TDC 3000 cabinet space is constrained, the MU-TDOR12’s standard HPM card file form factor ensures physical compatibility without modification. The module occupies a single slot in the standard HPM I/O card file, and its front-panel LED indicators for relay status and fault conditions are preserved in replacement units, allowing maintenance technicians to use familiar diagnostic procedures. If the migration plan eventually calls for replacing the entire HPM subsystem with an Experion LS (Large System) I/O chassis, the field wiring can be re-terminated to the new system’s terminal blocks using the existing cable runs, further reducing installation labor.

Retrofit projects frequently require coordination between the output module replacement and updates to the Honeywell Engineer’s Console (EC) or Universal Station (US) displays. While the MU-TDOR12 replacement itself requires no software changes, it is an opportune moment to audit the associated control module (CM) logic in the HPM database for any deprecated function blocks that may cause issues during a future Experion migration. TOPNLMS can provide documentation support and sourcing for related components including Honeywell MU-GAIX12 analog input modules, MU-GAOX12 analog output modules, and MU-TDID12 digital input modules that are commonly replaced alongside the TDOR12 during a comprehensive I/O refresh.

Every unit shipped by TOPNLMS undergoes functional verification prior to dispatch. Modules are tested for relay coil continuity, contact resistance, and logic board communication integrity. Units are packed in anti-static shielding with foam cushioning to withstand international freight handling. Standard lead time from our Xiamen warehouse is 3–7 business days for most destinations, with expedited options available for emergency plant situations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC 3000 I/O refresh rarely involves a single module. When replacing the MU-TDOR12, plant teams typically source several related components in the same procurement cycle to minimize future maintenance windows. Commonly co-ordered items include the Honeywell MU-TDID12 Digital Input Module for paired input/output loop integrity, the MU-GAIX12 Analog Input Module for temperature and pressure loop continuity, and the MU-GAOX12 Analog Output Module for valve positioner and speed reference signals. Power supply redundancy is maintained by stocking a spare MU-PSSU22 Power Supply Module, while the MU-TAIH12 Terminal Assembly is often replaced simultaneously to eliminate aged ribbon cable connectors. For sites beginning the transition to Experion PKS, the Honeywell C300 Controller and associated PMIO Series I/O modules are natural next-step components. Communication infrastructure upgrades may also involve the Honeywell NIM (Network Interface Module) to bridge legacy UCN segments with modern Ethernet-based control networks. Signal conditioning between legacy field devices and new I/O cards is handled by DIN-rail mounted signal isolators, which are stocked alongside the output modules for complete retrofit kits.

Retrofit Guidance FAQ

Q: Do I need to rewire field cables when replacing the MU-TDOR12?
A: No. The replacement module uses the same 40-pin ribbon connector and is compatible with the existing MU-TAIH12 or MU-TAIH22 terminal assembly. Field wiring at the terminal assembly remains untouched.

Q: Is a controller restart or database download required after the swap?
A: In most cases, no. The HPM recognizes the replacement module automatically via the I/O Link. However, it is recommended to verify module status in the Engineer’s Console after installation and confirm all relay outputs are in the expected state before returning the loop to automatic control.

Q: Is the UCN communication protocol fully preserved?
A: Yes. The replacement MU-TDOR12 communicates via the standard HPM I/O Link to the Process Manager, which interfaces with the UCN. No changes to the NIM or HG configuration are required.

Q: What if my HPM card file slot is physically damaged?
A: If the card file backplane connector is damaged, the card file itself may need replacement. TOPNLMS can source HPM card file assemblies and advise on slot repair options. Contact our technical team for assessment.

Q: Can this module be used during a phased migration to Experion PKS?
A: Yes. The MU-TDOR12 replacement extends the operational life of the TDC 3000 HPM subsystem, allowing a controlled, phased migration to Experion C300 controllers without forcing an emergency cutover.

Q: How do I verify the module is functioning correctly after installation?
A: Use the HPM diagnostic display on the Engineer’s Console to confirm the module reports as healthy. Check the front-panel LEDs for relay status and verify each output channel by exercising the associated control module output in manual mode.

Warranty Assurance

Every Honeywell 51304443-100 MU-TDOR12 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes a multi-point inspection including relay coil continuity testing, contact resistance measurement, logic board power-on verification, and visual inspection for component damage or corrosion. Units that do not pass all inspection criteria are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time target is 24 hours for initial assessment and 5 business days for replacement dispatch. We maintain a dedicated inventory buffer of critical TDC 3000 modules specifically to support warranty replacements without delay.

Procurement documentation including test reports, packing lists, and certificates of conformance is available upon request and can be provided to support your plant’s incoming inspection and quality management procedures. All units are shipped with ESD-safe packaging and are insured for the declared value during transit.

For urgent requirements, expedited shipping via DHL Express or FedEx Priority is available from our Xiamen warehouse, with same-day dispatch for orders confirmed before 14:00 CST.
