Honeywell 51304439-100 MU-TDIA12 Original Spare TDC3000 TPS

Product Overview

Honeywell 51304439-100 MU-TDIA12 Original Spare TDC3000 TPS: System Stability & Industrial Spare Maintenance Value

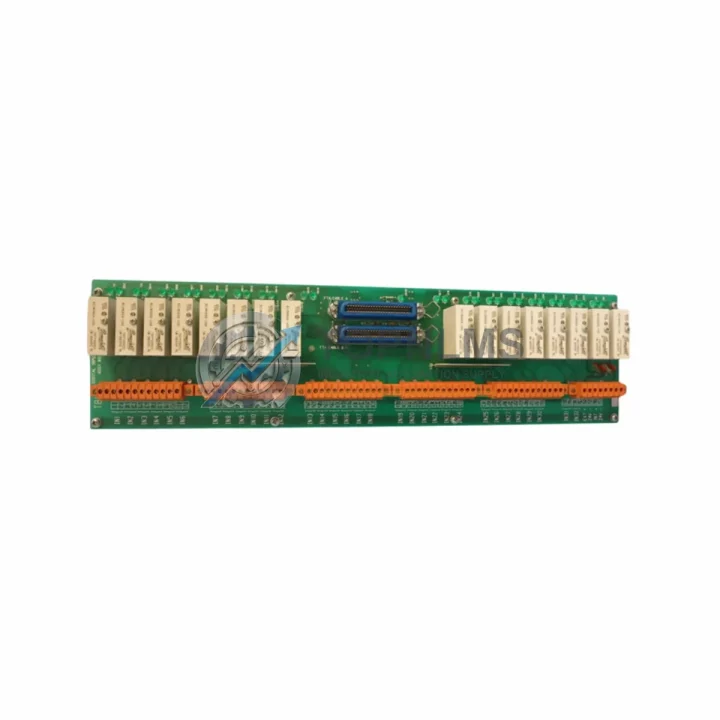

The Honeywell 51304439-100 (MU-TDIA12) is an original digital input board engineered for the TDC 3000 and TPS distributed control systems — one of the most widely deployed DCS platforms in refining, petrochemical, power generation, and continuous process manufacturing. As aging TDC 3000 infrastructure continues to operate well beyond its original design lifecycle, maintaining a reliable inventory of verified original spare parts like the MU-TDIA12 is no longer optional — it is a core pillar of any credible preventive maintenance and plant reliability strategy.

When a digital input board fails in a TDC 3000 cabinet, the consequences extend far beyond a single I/O channel. Process visibility is lost, interlock logic may be compromised, and operators are forced into manual override modes that increase both safety risk and labor burden. A pre-qualified, tested replacement unit on the shelf eliminates the most dangerous variable in unplanned downtime: procurement lead time. With the 51304439-100 in stock, your maintenance team can execute a board swap within a single shift window rather than waiting days or weeks for sourcing.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your TDC 3000 / TPS Control System

A digital input board replacement is rarely an isolated event. In practice, when maintenance engineers open a TDC 3000 control cabinet to address an MU-TDIA12 fault, they are already in the optimal position to conduct a broader system health inspection. Experienced reliability teams use this opportunity to audit the full I/O subsystem and flag components that are approaching end-of-life.

During a scheduled or corrective maintenance window involving the 51304439-100, it is strongly recommended to simultaneously inspect and — where applicable — pre-stock the following related components:

The MU-TDOA12 Digital Output Board (51304453-100) is the logical counterpart to the MU-TDIA12 and shares the same card cage slot architecture. Output boards in continuous-duty environments accumulate switching cycles and should be evaluated alongside any DI board replacement. Similarly, the MU-TAIH02 Analog Input High-Level Module and MU-TAIM02 Analog Input Module handle critical process variable signals; degraded analog inputs are a common precursor to nuisance alarms and process deviations that are often misdiagnosed as field instrument faults.

The TDC 3000 Power Supply Module (MC-PDPY22) is another high-priority inspection item. An aging or marginal power supply creates voltage ripple conditions that accelerate I/O board failures — replacing a digital input board without verifying power supply health is a common maintenance oversight that leads to repeat failures within months. Alongside the power supply, the card cage backplane connectors and module extraction handles should be inspected for oxidation and mechanical wear, as poor backplane contact is a leading cause of intermittent I/O faults in legacy DCS cabinets.

For facilities running hybrid TDC 3000 / TPS architectures with Ethernet or Modbus integration, the TDC 3000 Communication Gateway Module and associated serial communication cables (RS-232/RS-485) warrant inspection during any cabinet-level maintenance event. Communication module failures are frequently masked by I/O board alarms and can go undetected until a network-level fault causes broader system disruption.

Finally, for plants managing long-term TDC 3000 lifecycle extension programs, maintaining a small buffer stock of MU-TDIY22 Digital I/O Modules, fuse modules, and terminal block assemblies provides the flexibility to address multiple failure modes within a single maintenance cycle — reducing the number of emergency procurement events per year and lowering total maintenance cost of ownership.

Strategic Replacement Solutions: Extending TDC 3000 System Life

The Honeywell TDC 3000 and TPS platforms represent decades of process control investment. Many facilities have made a deliberate strategic decision to extend the operational life of these systems rather than undertake a full DCS migration — a project that typically requires years of engineering effort and carries significant production risk. For these facilities, the availability of original, tested spare parts like the 51304439-100 MU-TDIA12 is not merely a convenience; it is the foundation of the entire lifecycle extension strategy.

Original Honeywell boards maintain full firmware and hardware compatibility with existing TDC 3000 card cages, UCN networks, and HM (History Module) configurations. There is no re-engineering, no reconfiguration, and no re-validation required — the replacement board installs directly into the existing slot and resumes operation with the existing I/O configuration. This plug-and-replace capability is the single most important factor in minimizing mean time to repair (MTTR) during an unplanned outage.

For maintenance planners managing multi-unit facilities or shared spare parts pools, the 51304439-100 is a high-priority stocking candidate due to its broad applicability across TDC 3000 installations of different vintages. A single spare unit can serve as insurance across multiple process units, making the per-unit cost of downtime protection extremely favorable compared to the cost of a single unplanned shutdown event.

Each unit supplied by TOPNLMS undergoes functional verification testing prior to shipment, ensuring that the board you receive is operationally ready — not simply cosmetically intact. Units are shipped with appropriate ESD protection and packaging to maintain board integrity during transit.

Support FAQ

Q1: Is the 51304439-100 compatible with both TDC 3000 and TPS systems?
Yes. The MU-TDIA12 digital input board is designed for the Honeywell TDC 3000 platform and is compatible with TPS (Total Plant Solution) architectures that utilize the same card cage and backplane infrastructure. Always verify your specific cabinet configuration and firmware revision with your DCS documentation before installation.

Q2: What testing is performed before shipment?
Each 51304439-100 unit undergoes functional verification testing to confirm digital input channel integrity, backplane interface continuity, and optical isolation performance. A test report is available upon request. Units are shipped with ESD-safe packaging and a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should I validate compatibility before installing the replacement board?
Confirm the part number (51304439-100) and module designation (MU-TDIA12) against your TDC 3000 system documentation and cabinet layout drawings. Verify that the card cage slot assignment, I/O termination wiring, and UCN node configuration match your existing installation. If your system uses a later TPS firmware revision, consult Honeywell’s compatibility matrix or contact our technical support team before installation.

Q4: What is the recommended spare parts inventory strategy for TDC 3000 digital input boards?
For facilities with 10 or more MU-TDIA12 boards installed, a minimum buffer of 1–2 spare units is recommended. For critical process units where a single board failure could trigger a plant shutdown, a dedicated hot-spare strategy — with the spare board pre-configured and stored in the control room — is the industry best practice. TOPNLMS can support bulk procurement requests and multi-unit pricing for facilities building out a comprehensive TDC 3000 spare parts program.
