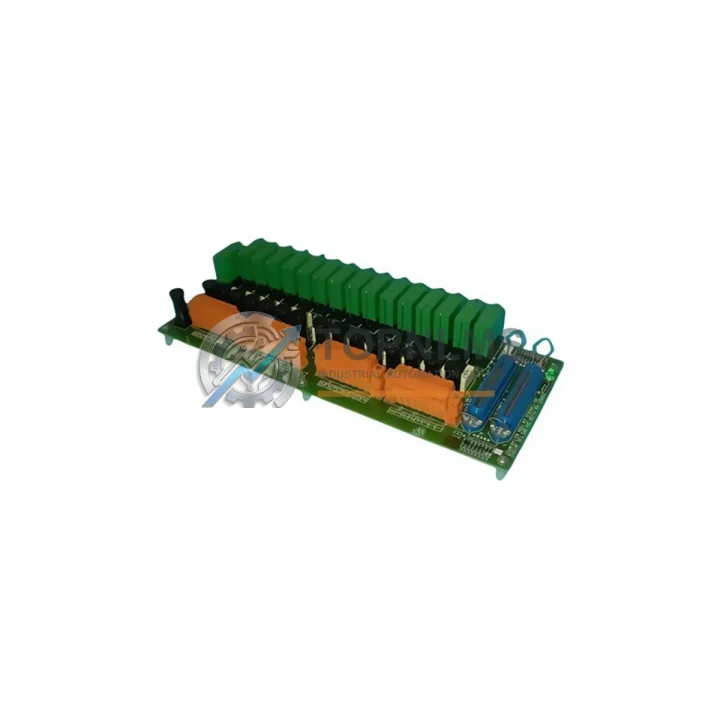

Honeywell 51304427-100 MU-TDOR22 Replacement for Experion PKS

Product Overview

Honeywell 51304427-100 MU-TDOR22 Replacement for Experion PKS / TDC 3000: Seamless Migration & Smooth Transition

The Honeywell 51304427-100 MU-TDOR22 is a 24-channel digital output module designed for the Honeywell Experion PKS and TDC 3000 distributed control systems. As legacy Honeywell TDC 3000 and early Experion PKS installations approach end-of-life, procurement teams and control engineers increasingly face the challenge of sourcing verified replacement units to maintain system uptime without committing to a full platform migration. TOPNLMS stocks tested, ready-to-ship 51304427-100 MU-TDOR22 modules to support your brownfield retrofit, emergency replacement, or planned upgrade program.

Whether your facility is running a TDC 3000 High-Performance Process Manager (HPPM), a Global Control Network (GCN), or an Experion PKS C300 controller environment, the MU-TDOR22 integrates directly into the existing I/O link architecture without requiring changes to your control strategy, wiring termination assemblies, or FTA (Field Termination Assembly) layouts. This plug-and-play compatibility dramatically reduces scheduled maintenance windows and eliminates the risk of extended unplanned downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy TDC 3000 or aging Experion PKS node to a modernized I/O architecture rarely involves a single module swap. In practice, engineers replacing the MU-TDOR22 digital output module often simultaneously address adjacent components that have reached the same end-of-service threshold.

On the input side, the MU-TDIR22 (24-channel digital input module) is the natural counterpart to the MU-TDOR22 and is frequently replaced in the same maintenance cycle. If your process involves analog signals, the MU-TAIM12 analog input module and MU-TAOM02 analog output module share the same IOP rack architecture and are common co-replacements during a planned I/O refresh.

For facilities upgrading communication infrastructure alongside I/O hardware, the MC-ENET01 Ethernet interface module and MC-PAIH03 HART analog input module are frequently specified together with digital output replacements to bring the entire I/O node up to current Experion PKS R500 or R501 compatibility standards. Engineers working on C300 controller-based architectures will also want to verify the status of their CC-PAIX01 and CC-TAIX01 I/O modules, as these share the same cabinet space and power distribution bus.

On the field termination side, the MC-TAIH02 FTA (Field Termination Assembly) is the most common wiring interface for the MU-TDOR22. If the FTA is original to the TDC 3000 installation, replacing it alongside the I/O module eliminates the risk of intermittent contact failures caused by aged terminal blocks and corroded screw connections — a common root cause of nuisance trips in older control cabinets.

For sites where cabinet space is constrained, the MU-TDOY22 relay output module offers an alternative output topology in the same form factor, useful when the field devices require dry-contact relay outputs rather than solid-state 24 VDC switching. Power module redundancy should also be reviewed: the MC-PWRJ02 power supply module is a standard companion in Experion PKS I/O cabinets and is often due for replacement when the I/O modules are being refreshed.

Finally, for commissioning and diagnostic work during the retrofit, a Honeywell FTE (Fault Tolerant Ethernet) programming cable and a licensed copy of Honeywell Control Builder are essential tools for verifying module configuration, downloading updated I/O assignments, and confirming channel-level diagnostics before returning the loop to automatic control.

Retrofit Guidance FAQ

Q: Can I replace the MU-TDOR22 without modifying existing field wiring?
A: Yes. The MU-TDOR22 uses the same FTA wiring interface as previous revisions. As long as your FTA (e.g., MC-TAIH02 or MC-TAIH03) is in serviceable condition, field wiring does not need to be disturbed. Verify terminal torque values and inspect for corrosion before re-energizing.

Q: Is the 51304427-100 revision compatible with all Experion PKS software versions?
A: The MU-TDOR22 is compatible with Experion PKS R400 through R501 and TDC 3000 HPPM environments. For R510 and later, confirm module firmware revision against the Honeywell Experion PKS compatibility matrix. TOPNLMS can provide the module’s firmware label upon request before shipment.

Q: What is the communication protocol used by this module?
A: The MU-TDOR22 communicates via Honeywell’s proprietary I/O Link protocol over the IOP backplane. No Modbus, PROFIBUS, or EtherNet/IP conversion is required. The module is not compatible with non-Honeywell racks or third-party DCS backplanes.

Q: How much cabinet space does the MU-TDOR22 require?
A: The module occupies a single IOP slot in the standard Honeywell I/O carrier. No additional DIN rail space or external mounting is required. The physical dimensions are identical to all MU-series I/O modules, ensuring a direct mechanical fit in existing cabinets.

Q: Can this module be hot-swapped during live production?
A: Hot-swap capability depends on your Experion PKS system configuration and the I/O carrier revision. In most Experion PKS environments with redundant I/O configured, the module can be replaced online. For TDC 3000 HPPM installations, a controlled shutdown of the affected I/O group is recommended. Always consult your site’s MOC (Management of Change) procedure before performing live module swaps.

Q: What programming changes are needed after replacement?
A: In a like-for-like replacement (same part number, same revision), no control strategy changes are required. The Experion PKS system will automatically recognize the replacement module and restore I/O assignments from the existing database. A channel-level diagnostic check via Control Builder is recommended to confirm all 24 output channels are healthy before returning to automatic.

Warranty Assurance

Every Honeywell 51304427-100 MU-TDOR22 shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes visual examination, board-level continuity checks, and functional verification of output channel switching. Units that do not pass inspection are quarantined and never shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Replacement units are dispatched with priority shipping to minimize your system downtime.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with HS code declaration for customs clearance. Express shipping via DHL, FedEx, or UPS is available to most destinations with typical transit times of 3–7 business days from Xiamen, China.

For urgent requirements, same-day dispatch is available for orders confirmed before 14:00 CST. Contact our technical sales team to confirm stock availability and lead time before placing your order.
