Honeywell 51304190-300 Ruggedized UCN Jumper Card for Harsh Environments

Product Overview

Honeywell 51304190-300 Ruggedized UCN Jumper Card for Harsh Environments

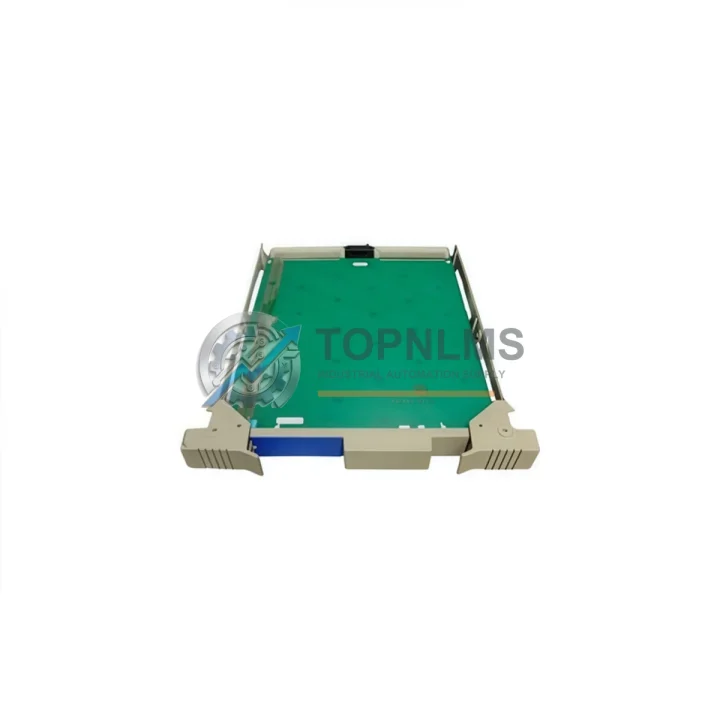

The Honeywell 51304190-300 UCN Jumper Card is a mission-critical network interface component engineered for the TDC 3000 Distributed Control System (DCS) platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, high-vibration heavy machinery floors, and zones with intense electromagnetic interference — this module delivers the network continuity that continuous production lines and safety-critical infrastructure cannot afford to lose.

As a Universal Control Network (UCN) jumper card, the 51304190-300 maintains the physical and logical integrity of the UCN data highway, ensuring uninterrupted communication between Honeywell Process Manager (PM) nodes, Advanced Process Manager (APM) units, and the Hiway Gateway (HG) modules that bridge the UCN to the Local Control Network (LCN). In facilities where a single communication dropout can trigger a process shutdown or safety interlock, the reliability of this card is not optional — it is foundational.

Rugged Specifications Table

Comprehensive Protection Solutions

The 51304190-300 UCN Jumper Card does not operate in isolation — it is the connective tissue of a broader Honeywell TDC 3000 control architecture. In a typical refinery or chemical plant control cabinet, this card works in concert with the Honeywell 51304485-100 UCN Tap, which physically connects field devices to the UCN coaxial highway. The UCN highway itself is terminated and managed through components such as the Honeywell 51304485-150 UCN Tap Assembly, ensuring signal integrity across long cable runs in electrically noisy environments.

At the process controller level, the 51304190-300 supports reliable data exchange with the Honeywell 51402615-100 Advanced Process Manager (APM) and the 51304362-100 High-Performance Process Manager (HPM), both of which execute real-time PID control loops and safety logic. When the UCN network must interface with the plant-wide LCN backbone, the Honeywell 51401641-100 Hiway Gateway (HG) module bridges the two networks — and the integrity of that bridge depends directly on a properly seated and functioning UCN jumper card like the 51304190-300.

For power supply redundancy within the TDC 3000 cabinet, the Honeywell 51109684-100 Power Entry Module and associated 24 VDC bus regulators ensure that voltage fluctuations — common in heavy industrial environments with large motor loads — do not propagate into the control network. On the I/O side, the Honeywell 51304754-150 and 51304754-200 series I/O Link Interface Modules connect field transmitters, valve positioners, and safety sensors to the process managers, with the UCN jumper card maintaining the upstream network path. Safety instrumented system (SIS) components such as the Honeywell FSC (Fail-Safe Controller) safety modules and associated relay output cards further depend on a stable UCN backbone to report status and receive commands from the operator station.

Application in Critical Infrastructure

In upstream oil and gas production platforms, the Honeywell TDC 3000 system — anchored by components like the 51304190-300 — manages wellhead pressure control, gas compression sequencing, and emergency shutdown (ESD) coordination. The UCN jumper card ensures that operator commands from the Universal Station (US) or Global User Station (GUS) reach the field controllers without latency or packet loss, even when the platform is subject to marine vibration, salt-laden air, and wide ambient temperature swings.

In coal-fired and gas-fired power generation facilities, the TDC 3000 platform controls boiler combustion management, turbine speed governing, and feedwater control. The 51304190-300 UCN Jumper Card maintains the network link between the boiler management system (BMS) controllers and the central operator console, where any communication interruption could trigger a boiler trip and unplanned outage costing tens of thousands of dollars per hour.

In municipal and industrial water treatment plants, where continuous operation is mandated by regulatory compliance, the TDC 3000 DCS manages chemical dosing, filtration backwash cycles, and pump sequencing. The UCN network — sustained by components including the 51304190-300 — ensures that SCADA-level supervisory commands and real-time process data flow without interruption, even in high-humidity pump rooms and outdoor installations subject to temperature cycling.

Metallurgical and steel production facilities present some of the harshest environments for control electronics: radiant heat from furnaces, heavy electromagnetic interference from arc furnaces and large variable-frequency drives (VFDs), and mechanical vibration from rolling mills. The ruggedized design of the Honeywell 51304190-300 UCN Jumper Card makes it a proven choice for these environments, where lesser components fail prematurely and unplanned downtime carries severe production and safety consequences.

Security & Quality FAQ

Q1: Does the Honeywell 51304190-300 come with a warranty?
Yes. Every 51304190-300 UCN Jumper Card shipped by TOPNLMS carries a 12-month warranty from the date of shipment. If the module fails under normal operating conditions within the warranty period, we will provide a replacement or full refund — no questions asked.

Q2: How is the module tested before shipment?
Each unit undergoes a multi-point inspection and functional verification process prior to dispatch. This includes visual inspection for physical damage, board-level continuity testing, and where applicable, power-on verification against known-good reference systems. Our quality control process is designed to ensure that every module arrives ready for installation.

Q3: Is the 51304190-300 compatible with my existing TDC 3000 or TPS system?
The 51304190-300 is designed for the Honeywell TDC 3000 and TPS (Total Plant Solution) platforms and is compatible with UCN-based architectures including PM, APM, HPM, and HG node configurations. If you are uncertain about compatibility with a specific revision of your system, contact our technical team with your existing module part numbers and we will confirm fit before you order.

Q4: Can TOPNLMS support long-term or repeat procurement of this module?
Yes. We maintain standing inventory of Honeywell TDC 3000 series components, including the 51304190-300 and related UCN network hardware, to support planned maintenance programs, emergency sparing, and capital project builds. We can provide blanket order arrangements and advance reservation for customers with scheduled turnaround or shutdown requirements.
