Honeywell 51303968-100 Replacement for TDC/TPS Series

Product Overview

Honeywell 51303968-100 Replacement/Upgrade Solution for TDC/TPS Series: Seamless Transition from Legacy DCS to Modern Redundancy Architecture

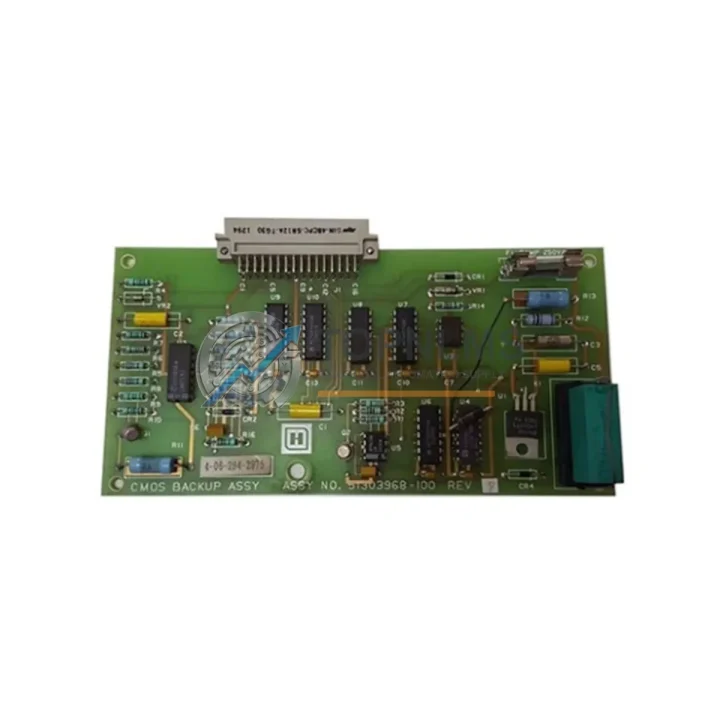

The Honeywell 51303968-100 is a critical Backup Board and Redundancy Module designed for the TDC 3000 and TotalPlant Solution (TPS) Distributed Control System platforms. As aging TDC/TPS installations approach end-of-support milestones, plant engineers and procurement teams are actively sourcing verified replacement units to maintain system uptime, preserve existing wiring infrastructure, and avoid costly full-system migrations. TOPNLMS maintains ready stock of the 51303968-100 to support emergency replacements, planned shutdowns, and phased modernization projects across petrochemical, refining, power generation, and continuous process industries.

The 51303968-100 Backup Board serves as the redundancy controller within the TDC/TPS cabinet architecture, ensuring bumpless switchover between primary and backup control paths. When the primary controller or associated I/O module experiences a fault, the 51303968-100 enables the system to transfer control authority without interrupting the process loop. This is especially critical in applications where the Universal Control Network (UCN) or Local Control Network (LCN) carries real-time process data across multiple High-Performance Process Manager (HPPM) or Advanced Process Manager (APM) nodes.

For facilities running legacy TDC 3000 cabinets, the 51303968-100 is a direct form-fit-function replacement. The board occupies the same card slot within the standard Honeywell card file, uses the same backplane connector pinout, and requires no firmware re-flashing or configuration changes in the Universal Station (US) or Global User Station (GUS) engineering environment. Technicians can swap the board during a scheduled maintenance window, perform a live redundancy test, and return the loop to automatic control — typically within a single shift.

Wiring compatibility is a primary concern during any DCS component replacement. The 51303968-100 interfaces with the existing field termination assembly (FTA) and marshalling cabinet wiring without modification. Signal cables routed from field instruments — including 4–20 mA analog inputs, discrete I/O, and thermocouple inputs — connect through the same terminal block assignments as the original board. This eliminates the need to re-label, re-route, or re-terminate field wiring, significantly reducing the risk of wiring errors during the replacement procedure.

Communication protocol compatibility is fully preserved. The 51303968-100 operates natively on the Honeywell proprietary UCN (Universal Control Network) and LCN (Local Control Network) protocols, which are the backbone of TDC 3000 and TPS system architectures. No gateway, protocol converter, or additional communication module is required. The replacement board will be recognized automatically by the system’s Network Interface Module (NIM) and will resume participation in the control network without manual address assignment.

Physical installation space is identical to the original. The 51303968-100 follows the standard Honeywell card file form factor, fitting into the same slot within the process manager card cage. No bracket modification, DIN rail adapter, or panel cutout change is needed. For facilities with limited cabinet space — a common constraint in brownfield retrofits — this direct dimensional compatibility is a significant advantage over alternative solutions that require new enclosures or mounting hardware.

Power supply compatibility is maintained through the existing card file backplane. The 51303968-100 draws regulated DC power from the card file’s internal power distribution bus, which is typically fed by a Honeywell Power Supply Module (PSM) or equivalent redundant power assembly. No separate power wiring or voltage conversion is required for the replacement board.

For facilities undertaking a broader modernization initiative — migrating from TDC 3000 to Experion PKS or a third-party DCS platform — the 51303968-100 serves as a bridge component that extends the operational life of the existing system while the migration is planned and executed in phases. During this transition period, related components such as the Honeywell 51304485-100 Process Manager I/O Link Module, the 51401288-100 Analog Input Module, the 51304516-100 Digital Output Module, and the 51309512-175 Power Supply Module are commonly sourced alongside the 51303968-100 to maintain a complete spare parts inventory. Communication infrastructure components including the 51304362-175 Network Interface Module (NIM) and associated LCN cable assemblies are also frequently required to support redundancy testing and network reconfiguration during the migration window.

For sites integrating newer control layers, the 51303968-100 can coexist with Experion PKS C300 controllers and associated CHARM I/O modules through the Honeywell UCN-to-Experion gateway architecture, allowing a hybrid control environment during the transition. HMI stations running Honeywell’s Uniformance or legacy GUS consoles continue to display process data without modification to display configurations or historian tags.

TOPNLMS performs incoming inspection on all 51303968-100 units prior to shipment, including visual inspection, board-level continuity checks, and functional verification where test fixtures are available. Each unit is shipped in anti-static packaging with a serialized inspection record. Standard lead time from confirmed order to dispatch is 1–3 business days for in-stock units, with express air freight available to minimize plant downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC/TPS redundancy module replacement rarely involves a single component in isolation. During planned shutdowns and phased migration projects, procurement teams typically source a coordinated set of spare and replacement parts to minimize return visits and reduce overall downtime risk. The following components are commonly required alongside the 51303968-100 in TDC 3000 and TPS modernization projects.

The Honeywell 51304485-100 Process Manager I/O Link Module is frequently replaced in the same maintenance window as the Backup Board, as both components share the same card file and are subject to similar aging profiles. The 51401288-100 Analog Input Module handles 4–20 mA field signals from transmitters and is a common failure point in long-running TDC installations; replacing it alongside the 51303968-100 ensures the entire analog input chain is refreshed. For discrete control applications, the 51304516-100 Digital Output Module provides the relay and transistor outputs required for motor starters, solenoid valves, and on/off actuators, and is typically stocked as a critical spare in any TDC/TPS parts inventory.

Power integrity is essential for redundancy systems to function correctly. The 51309512-175 Power Supply Module provides regulated DC power to the card file and should be inspected — and replaced if showing signs of aging — whenever the Backup Board is serviced. On the communication side, the 51304362-175 Network Interface Module (NIM) manages UCN traffic between the process manager and the LCN highway; a verified spare NIM is a standard recommendation for any site maintaining TDC 3000 redundancy. LCN coaxial cable assemblies and UCN tap modules are also commonly sourced during the same procurement cycle to ensure the physical network layer is in good condition.

For sites integrating HMI upgrades alongside the DCS component replacement, Honeywell Experion PKS C300 Controller modules and associated CHARM I/O assemblies provide a migration path that preserves existing field wiring while introducing modern control capabilities. Programming cable assemblies compatible with the TDC engineering workstation are also recommended to support on-site configuration verification and redundancy testing after the replacement is complete.

Retrofit Guidance FAQ

Q: Can the 51303968-100 be installed without shutting down the entire DCS system?
A: In most TDC 3000 and TPS installations, the Backup Board can be replaced during a hot-standby switchover procedure, where the primary control path is transferred to the redundant path before the board is removed. This minimizes process disruption. However, the specific procedure depends on the system configuration and the plant’s safety requirements. Always consult the Honeywell TDC 3000 maintenance documentation and your site’s management of change (MOC) procedure before performing a live replacement.

Q: Is any re-programming required after installing the replacement 51303968-100?
A: For a direct like-for-like replacement, no re-programming is required. The system’s engineering database, control strategies, and display configurations remain unchanged. The replacement board will be recognized by the NIM and will resume its role in the redundancy architecture automatically. If the replacement is part of a broader migration to Experion PKS, additional configuration steps in the Experion engineering environment will be required.

Q: What communication protocols does the 51303968-100 support?
A: The 51303968-100 operates on Honeywell’s proprietary UCN (Universal Control Network) and LCN (Local Control Network) protocols. These are not open-standard protocols (such as PROFIBUS, Modbus, or EtherNet/IP), so no external protocol converter or gateway is required for a direct replacement within a TDC/TPS system. For integration with third-party systems or migration to open-protocol platforms, a Honeywell UCN gateway or equivalent interface module would be required.

Q: Will the existing field wiring need to be re-terminated?
A: No. The 51303968-100 uses the same backplane connector and FTA interface as the original board. Field wiring connected to the marshalling cabinet and termination assemblies does not need to be modified, re-labeled, or re-routed. This is one of the primary advantages of sourcing a verified like-for-like replacement rather than an alternative-form-factor substitute.

Q: What physical space is required for installation?
A: The 51303968-100 occupies a single standard Honeywell card file slot. No additional panel space, DIN rail mounting, or enclosure modification is required. The board slides into the existing slot and is secured by the standard card ejector mechanism.

Q: How is the replacement board tested before shipment?
A: All units supplied by TOPNLMS undergo incoming inspection including visual examination, board-level continuity verification, and functional testing where applicable. A serialized inspection record accompanies each shipment. Units that do not pass inspection are not offered for sale.

Warranty Assurance

Every Honeywell 51303968-100 Backup Board supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. This warranty covers defects in materials and workmanship under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will provide a replacement unit or issue a credit at our discretion, subject to inspection of the returned item.

Prior to shipment, each unit is subject to our standard outgoing quality control process: visual inspection for physical damage, connector integrity check, board-level continuity test, and packaging verification. Units are shipped in anti-static bags within foam-lined cartons to prevent transit damage. Tracking information is provided for all shipments.

Our after-sales support team is available to assist with installation questions, compatibility verification, and warranty claims. Response time for warranty inquiries is typically within 1 business day. For urgent plant situations, expedited replacement arrangements can be discussed directly with our sales team.

Procurement teams can request a formal quotation, proforma invoice, or certificate of conformance as required for their purchasing process. We support payment via T/T bank transfer, and can provide packing lists and commercial invoices formatted for customs clearance in most jurisdictions.

For volume orders or long-term supply agreements covering multiple TDC/TPS spare parts, please contact our sales team to discuss pricing, lead times, and consignment stock arrangements.
