Honeywell 51303940-150 Replacement Dual Fan for TDC 3000/TPS

Product Overview

Honeywell 51303940-150 Replacement Dual Fan for TDC 3000/TPS: Smooth Transition, Zero Compromise

When a Honeywell TDC 3000 or TPS distributed control system begins showing thermal alarms, erratic controller behavior, or outright fan failure, the root cause is frequently a degraded or failed Dual Fan Assembly — part number 51303940-150. This module is the primary forced-air cooling unit for the TDC 3000 and TPS process control cabinets, and its failure can cascade rapidly into CPU module shutdowns, I/O communication faults, and unplanned process outages. TOPNLMS supplies the Honeywell 51303940-150 as a direct drop-in replacement, fully tested, ready to ship, and backed by a 12-month warranty.

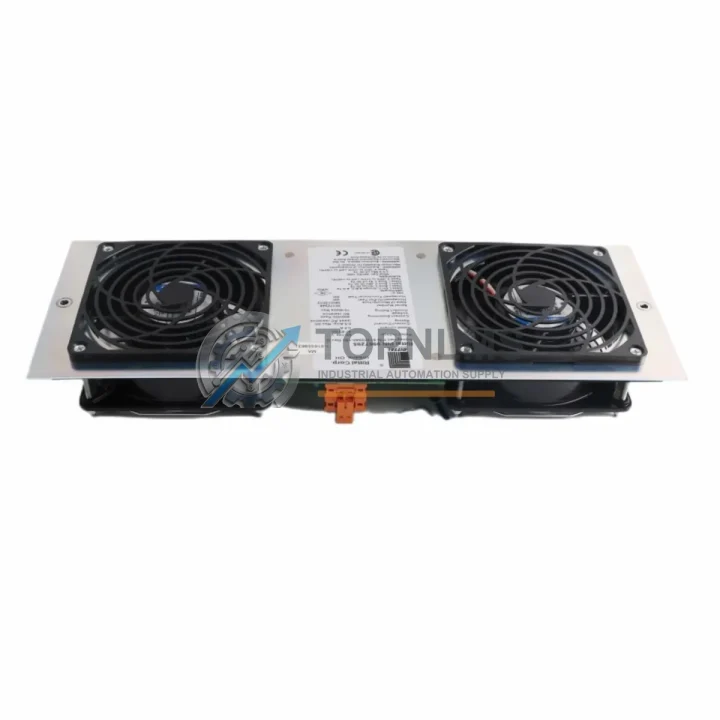

The 51303940-150 Dual Fan Assembly is a dual-redundant cooling unit designed to maintain safe operating temperatures across the TDC 3000 and TPS cabinet backplane. It interfaces directly with the standard Honeywell cabinet chassis without any bracket modification, wiring change, or firmware update. The fan tray slides into the existing mounting slot, reconnects to the original power harness, and resumes operation within minutes of installation — making it one of the most straightforward field replacements in the TDC 3000 ecosystem.

For plants still operating legacy TDC 3000 systems — including those running the Honeywell HPM (High-Performance Process Manager), AM (Application Module), or HG (Highway Gateway) — thermal management is a persistent maintenance challenge. As original fan assemblies age beyond 10–15 years of continuous operation, bearing wear and blade fatigue become inevitable. Proactive replacement of the 51303940-150 before complete failure is the most cost-effective strategy to protect upstream modules such as the Honeywell 51401469-100 UCN Interface Module and downstream I/O subsystems from heat-induced degradation.

In TPS (TotalPlant Solution) environments, the same cabinet architecture applies. Whether the cabinet houses a Honeywell 51304485-100 Power Entry Module or a bank of 51309276-175 I/O Link Interface Modules, the 51303940-150 fan assembly serves as the thermal backbone of the entire enclosure. Replacing it during a scheduled maintenance window — rather than during an emergency shutdown — eliminates the risk of collateral damage to adjacent modules caused by overheating.

Migration and modernization projects that involve transitioning from TDC 3000 to Experion PKS or Experion HS platforms often retain the original TDC 3000 cabinets during the phased cutover period. During this hybrid operation phase, maintaining the cooling integrity of legacy cabinets is critical. The 51303940-150 ensures that legacy HPM and AM modules continue to operate reliably while new Experion C300 controllers and EHPM (Experion High-Performance Process Manager) nodes are commissioned in parallel. This is particularly important in refineries, chemical plants, and power generation facilities where simultaneous operation of old and new control layers is standard practice during migration.

From a wiring and installation standpoint, the 51303940-150 uses the original Honeywell cabinet power connector — no rewiring, no adapter harness, and no changes to the cabinet’s internal cable routing. The fan assembly draws power directly from the cabinet’s internal DC bus, which is supplied by the Honeywell 51190947-100 or 51190947-200 Power Supply Module. If the power supply is also being replaced as part of a broader cabinet refurbishment, both units can be swapped during the same maintenance window without any interdependency conflicts.

For sites performing a full cabinet audit prior to a DCS migration, TOPNLMS recommends evaluating the condition of the Honeywell 51304453-100 Cabinet Fan Filter alongside the 51303940-150 fan assembly. A clogged filter significantly reduces airflow efficiency even when the fan itself is functional, and replacing both components simultaneously maximizes the service interval before the next maintenance intervention.

Communication protocol compatibility is not a concern with this replacement — the 51303940-150 is a purely mechanical and electrical cooling component with no embedded firmware, no UCN or LCN network address, and no software configuration requirements. It does not interact with the Honeywell Data Hiway, the Local Control Network (LCN), or any fieldbus protocol such as FOUNDATION Fieldbus or HART. This makes it one of the safest and most risk-free replacements in the TDC 3000 or TPS parts inventory.

Physical space compatibility is confirmed for all standard TDC 3000 and TPS cabinet configurations. The 51303940-150 occupies the dedicated fan bay at the base or top of the cabinet (depending on cabinet generation), and its form factor is unchanged from the original OEM specification. No cabinet modification, rail adjustment, or spacer is required. For cabinets that have been retrofitted with third-party cooling solutions, a brief dimensional check against the original fan bay opening is recommended before ordering.

TOPNLMS maintains stock of the 51303940-150 in our Xiamen warehouse, enabling same-day or next-business-day dispatch for urgent replacement orders. All units undergo pre-shipment functional testing including fan speed verification, bearing noise inspection, and connector integrity check. Export documentation, commercial invoices, and packing lists are prepared in compliance with international trade requirements for industrial automation components.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC 3000 or TPS cabinet refurbishment rarely involves a single component. In practice, the 51303940-150 fan replacement is most effective when performed as part of a coordinated maintenance or migration package. During the same cabinet access window, engineers frequently address the Honeywell 51304453-100 Cabinet Fan Filter to restore full airflow, and the 51190947-100 Power Supply Module to ensure stable DC bus voltage to both the new fan assembly and all resident controller modules.

For sites transitioning from TDC 3000 to Experion PKS, the cabinet cooling infrastructure must remain fully operational during the phased migration. The Honeywell C300 Controller and its associated IOLINK modules are typically installed in the same or adjacent cabinets, and the 51303940-150 ensures that legacy HPM modules continue to operate without thermal stress while the new Experion layer is being commissioned. The Honeywell 51309276-175 I/O Link Interface Module and 51401469-100 UCN Interface Module are common co-residents in these hybrid cabinets and benefit directly from restored cooling performance.

In TPS environments undergoing a controls upgrade, the fan assembly replacement is often paired with a refresh of the Honeywell 51304485-100 Power Entry Module and a re-termination audit of the cabinet’s internal wiring harnesses. For plants adding new I/O capacity during the migration, the Honeywell 51305890-175 FTA (Field Termination Assembly) and associated 51202329-200 Analog Input Module are frequently added to the same cabinet, making thermal headroom a critical planning factor. The 51303940-150 provides the airflow margin needed to accommodate this expanded module density without exceeding cabinet thermal limits.

TOPNLMS can supply the 51303940-150 as a standalone unit or as part of a bundled cabinet maintenance kit. Contact our team to discuss multi-unit pricing, consolidated shipping, and coordinated delivery scheduling for planned maintenance outages.

Retrofit Guidance FAQ

Q: Does replacing the 51303940-150 require any changes to the TDC 3000 or TPS control program?
A: No. The 51303940-150 is a purely mechanical and electrical cooling component. It has no embedded firmware, no network address, and no interaction with the UCN, LCN, or any fieldbus protocol. No program changes, no controller restart, and no engineering workstation intervention are required.

Q: Is the 51303940-150 compatible with both TDC 3000 and TPS cabinet generations?
A: Yes. The 51303940-150 is the standard dual fan assembly for both TDC 3000 and TPS cabinet platforms. It uses the same mounting bay, the same power connector, and the same form factor across both generations. If your cabinet has been modified from the original OEM configuration, a dimensional check of the fan bay opening is recommended.

Q: Can the fan be replaced while the cabinet is energized (hot-swap)?
A: In most TDC 3000 and TPS cabinet configurations, the fan assembly can be replaced during a brief controlled shutdown of the affected cabinet section. Full hot-swap without any power interruption is not recommended due to the DC bus connector design. Consult your site safety procedures and Honeywell cabinet documentation before performing the replacement.

Q: What is the lead time and shipping method for the 51303940-150?
A: TOPNLMS maintains warehouse stock in Xiamen, China. Standard lead time is 1–3 business days for in-stock units. Express international shipping via DHL, FedEx, or UPS is available for urgent replacement orders. Estimated transit time to most destinations is 3–7 business days.

Q: What if the replacement fan does not resolve the thermal alarm?
A: If thermal alarms persist after replacing the 51303940-150, the next diagnostic steps are to inspect the 51304453-100 Cabinet Fan Filter for blockage, verify the output voltage of the 51190947-100 Power Supply Module, and check for obstructions in the cabinet’s internal airflow path. TOPNLMS technical support is available to assist with fault isolation.

Q: Is the 51303940-150 an original Honeywell part or a compatible replacement?
A: TOPNLMS supplies both original Honeywell surplus stock and compatible replacement units depending on availability. All units are functionally tested before shipment. The product listing and invoice will clearly indicate the unit’s origin. Contact us before ordering if OEM-only supply is a requirement for your site.

Warranty Assurance

Every Honeywell 51303940-150 Dual Fan Assembly supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional failure under normal operating conditions and includes free replacement or full refund at TOPNLMS’s discretion.

Pre-shipment testing: All units undergo fan speed verification, bearing noise inspection, and DC connector integrity testing before dispatch. A test report is available upon request for quality-critical procurement processes.

Replacement support: In the event of a warranty claim, TOPNLMS will dispatch a replacement unit within 3 business days of claim confirmation. Return shipping of the defective unit is coordinated by TOPNLMS at no additional cost to the buyer.

After-sales response: Our technical team responds to warranty and after-sales inquiries within 24 hours on business days. For urgent plant situations, priority support is available via direct contact.

Procurement assurance: TOPNLMS issues a commercial invoice, packing list, and certificate of conformance with every shipment. For customers requiring additional documentation such as material test reports or country-of-origin certificates, these can be arranged at the time of order.
