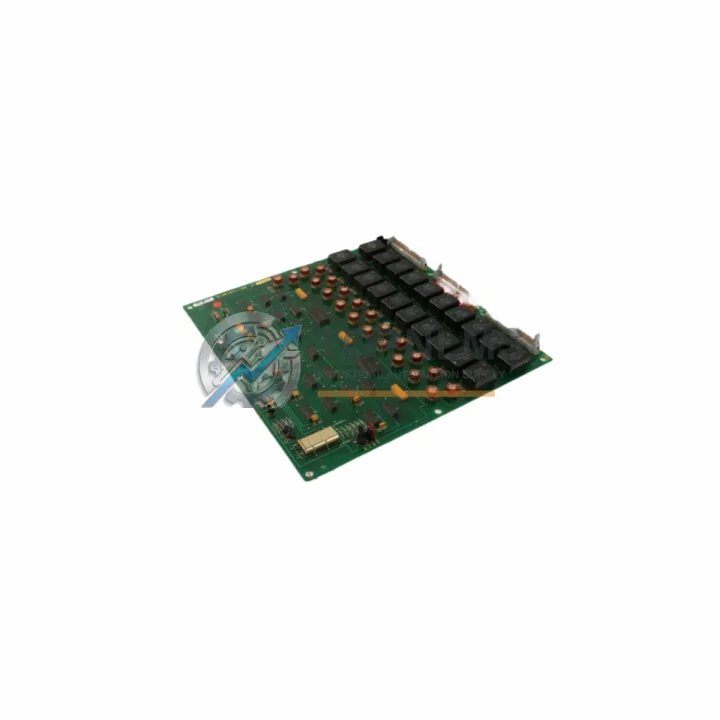

Honeywell 51301874-100 Original Industrial Spare TDC 3000 Compatible

Product Overview

Honeywell 51301874-100 Original Industrial Spare TDC 3000 Compatible: System Stability Through Proven Thermocouple Signal Integrity

In process manufacturing and continuous production environments, the reliability of thermocouple signal acquisition is foundational to safe and efficient operations. The Honeywell 51301874-100 / 51301875-100 Thermocouple Multiplexer Board is a critical input module within the TDC 3000 Distributed Control System, responsible for multiplexing thermocouple signals from field instruments into the DCS for real-time temperature monitoring and process control. When this board degrades or fails, the consequences extend far beyond a single measurement point — entire control loops can become unreliable, triggering unplanned shutdowns, safety interlocks, or process deviations that cost facilities thousands of dollars per hour.

Sourced as an original Honeywell spare, this module is inspected, function-tested, and shipped with a 12-month warranty, giving maintenance teams and procurement engineers the confidence to stock it as a ready-to-deploy replacement asset.

Critical Technical Specs

Preventive Maintenance Strategy

A thermocouple multiplexer board failure rarely occurs in isolation. In TDC 3000 systems, the signal chain from field instrument to control output passes through multiple interdependent components, and a disciplined preventive maintenance program should address the entire chain during any scheduled outage or corrective maintenance event.

When replacing or inspecting the 51301874-100 TC Mux Board, maintenance engineers should simultaneously verify the condition of the Honeywell 51304485-100 or 51304485-150 Power Supply Module that feeds the card cage — a marginal power supply is a common root cause of intermittent board faults. The 51401544-100 Analog Input Module and associated 51304516-100 I/O Link Interface Module should also be checked for signal integrity, as degraded I/O link communication can mask or mimic thermocouple input errors.

Field wiring terminations at the Honeywell 51196694-100 or equivalent terminal assembly should be inspected for oxidation, loose screws, and thermocouple extension wire polarity — issues at the termination level frequently present as board-level faults during initial diagnosis. If the facility uses signal isolators or signal conditioners between field thermocouples and the DCS input, these should be tested for drift, particularly in high-temperature process areas where ambient heat accelerates component aging.

For facilities running extended TDC 3000 or TPS platforms, the 51401196-100 Communication Module and 51304453-100 Highway Gateway Module are worth including in the inspection cycle — these modules govern data highway integrity, and their degradation can cause cascading diagnostic alarms that complicate fault isolation. Similarly, the 51309276-100 Analog Output Module in the same control loop should be verified to ensure that corrective actions from the controller are being faithfully executed at the field device level.

Battery-backed memory modules such as the 51401584-100 or 51401584-150 should be checked for battery health during any cabinet-level maintenance, as configuration loss during a power event can extend recovery time significantly. Stocking a spare 51304752-100 Processor Module alongside the TC Mux Board is a best practice for facilities where TDC 3000 systems are mission-critical and downtime costs are high.

A complete preventive maintenance kit for a TDC 3000 temperature acquisition loop should include: the TC Mux Board (51301874-100 / 51301875-100), at least one spare power supply module, one spare analog input module, terminal assembly hardware, and a communication interface module — all sourced as original Honeywell parts to ensure backward compatibility with existing firmware and configuration.

Strategic Replacement Solutions

The Honeywell TDC 3000 platform has been in service at refineries, chemical plants, power generation facilities, and pharmaceutical manufacturing sites for decades. While Honeywell has transitioned its current DCS portfolio toward the Experion PKS platform, a significant installed base of TDC 3000 and TPS systems remains in active production service globally. For these facilities, the strategic question is not whether to replace the DCS, but how to extend its reliable service life while managing spare parts availability risk.

The 51301874-100 / 51301875-100 Thermocouple Multiplexer Board is a module that is no longer in active production, making original spare availability a critical procurement concern. Facilities that delay sourcing these boards until a failure event occurs often face extended lead times, elevated spot-market pricing, and the risk of receiving non-original or refurbished units of uncertain quality. Proactive procurement — stocking one or two spare boards per control room — is the most cost-effective strategy for maintaining system uptime.

This module is a direct drop-in replacement for failed or degraded 51301874-100 / 51301875-100 boards. No firmware changes, configuration modifications, or recalibration of the DCS are required for a like-for-like swap, minimizing the skill level required for field replacement and reducing mean time to repair (MTTR). Maintenance technicians familiar with TDC 3000 card cage procedures can complete the replacement during a planned or emergency outage window without specialist support.

For facilities considering a phased migration from TDC 3000 to Experion PKS or a third-party DCS, maintaining a functional TDC 3000 system with original spare parts during the transition period is essential to avoid production risk. Original boards like the 51301874-100 provide the reliability bridge needed to sustain operations while migration projects are planned, funded, and executed.

Support FAQ

Q1: Is the 51301874-100 compatible with both TDC 3000 and TotalPlant Solution (TPS) systems?
Yes. The 51301874-100 and its paired board 51301875-100 are designed for the Honeywell TDC 3000 platform, which encompasses both the original TDC 3000 architecture and the TotalPlant Solution (TPS) evolution. Compatibility should be verified against your specific cabinet configuration and firmware revision before installation. Our team can assist with compatibility verification upon request.

Q2: What pre-shipment testing is performed on this module?
Each unit undergoes visual inspection for physical damage, component-level checks, and functional testing to verify signal multiplexing performance prior to shipment. Units that do not pass testing are not listed for sale. A 12-month warranty covers defects in materials and workmanship from the date of delivery.

Q3: How should I manage spare parts inventory for an aging TDC 3000 system?
For mission-critical TDC 3000 installations, we recommend maintaining a minimum of one spare for each module type that has no redundant counterpart in your system architecture. High-priority spares include thermocouple input modules, power supply modules, processor modules, and communication interface modules. A structured spare parts audit every 12–24 months helps identify gaps before a failure event forces emergency procurement.

Q4: What is the lead time and shipping process?
This module is in stock and ships within 1–3 business days of order confirmation. International shipments are supported with full export documentation. Expedited shipping options are available for urgent maintenance situations. All orders include a packing list and warranty certificate.
