Honeywell 51204172-175 MC-TAOY22 Replacement for TPS TDC 3000: Seamless Migration & Smooth Transition

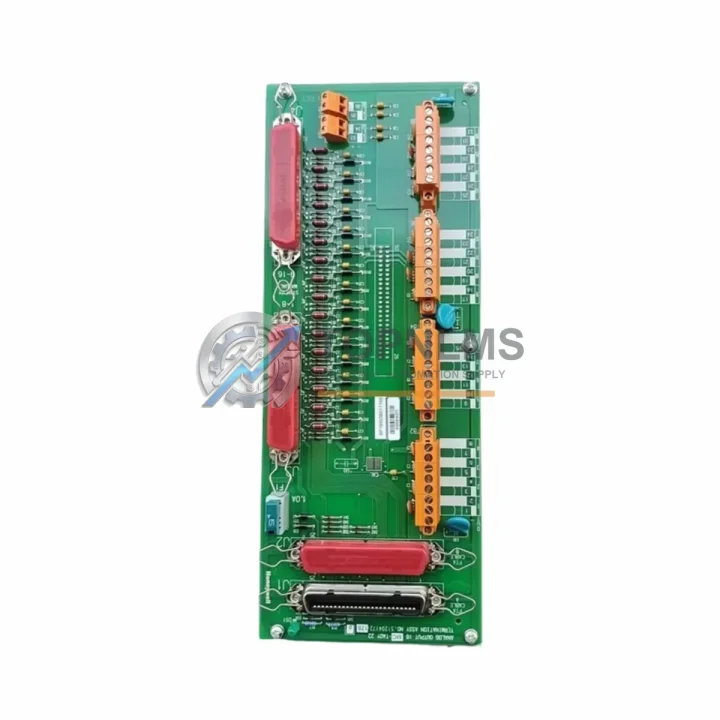

The Honeywell 51204172-175 MC-TAOY22 is a 2-channel analog output module engineered for the TotalPlant Solution (TPS) and TDC 3000 Distributed Control System (DCS) platform. As legacy TPS and TDC 3000 systems approach end-of-life and spare parts become increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacement modules that deliver drop-in compatibility without requiring costly re-engineering of existing control architectures.

TOPNLMS specializes in sourcing, testing, and supplying hard-to-find DCS and PLC modules for industrial control system modernization projects. Whether you are executing a like-for-like spare replacement to restore a tripped loop, or planning a phased migration away from a discontinued TDC 3000 cabinet, the MC-TAOY22 (P/N 51204172-175) is stocked and ready to ship from our Xiamen warehouse.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TPS/TDC 3000 migration rarely involves a single module swap. In practice, field engineers replacing the MC-TAOY22 will simultaneously evaluate adjacent components in the same I/O carrier and control cabinet. The following components are commonly addressed in the same maintenance window or modernization project:

The MC-TAIX11 analog input module and MC-TAIX22 dual-channel analog input module share the same TPS I/O carrier slot form factor and are frequently replaced alongside the MC-TAOY22 when an entire I/O subsystem is being refreshed. Ensuring matched revision levels across input and output modules eliminates firmware compatibility warnings during system diagnostics.

For plants running redundant control strategies, the MC-PDOY22 pulse/digital output module and MC-TDIY22 digital input module are often co-located in the same rack. Replacing these in a single outage window reduces total downtime and simplifies the re-commissioning checklist.

The 51401288-100 TPS I/O Link Interface Module governs communication between the I/O subsystem and the Universal Control Network (UCN). If the existing link interface shows degraded performance or intermittent faults, replacing it concurrently with the MC-TAOY22 ensures the upgraded analog output channels operate on a stable communication backbone.

Field termination is handled through the MC-TAOY22 field termination assembly (FTA) — typically the 51304453-150 or equivalent FTA panel. Inspecting and, where necessary, replacing the FTA during the module swap eliminates the risk of residual wiring faults masking the new module’s performance during loop checkout.

For plants considering a longer-term migration from TDC 3000 to Experion PKS, the C300 Controller and its associated IOTA (I/O Termination Assembly) represent the next logical upgrade step. The MC-TAOY22 can continue to serve as a bridge output module during a phased Experion migration, allowing process control to remain live while the new controller infrastructure is commissioned in parallel.

Power distribution within the TPS cabinet is supplied through the MC-PSIM11 power supply input module. Verifying the health of the power supply module before installing the replacement MC-TAOY22 is a standard pre-commissioning step that prevents nuisance trips caused by voltage sag on the backplane.

Finally, for sites that require HART pass-through capability on the analog output loops, the HART Multiplexer (MUX) connected to the field wiring side should be verified for compatibility with the MC-TAOY22’s output impedance characteristics to ensure uninterrupted HART communication with smart field devices such as control valves and positioners.

Retrofit Guidance FAQ

Q: Can I replace the MC-TAOY22 without rewiring the field terminals?
A: Yes. The 51204172-175 is a direct plug-in replacement for the TPS I/O carrier. Field wiring connects to the FTA, not to the module itself, so no rewiring is required. Simply power down the affected I/O carrier slot, extract the faulty module, insert the replacement, and restore power. Loop checkout via the TPS console should confirm output signal integrity within minutes.

Q: Is the MC-TAOY22 compatible with both TDC 3000 and TPS platforms?
A: Yes. The module is designed for the TPS platform, which is the successor to TDC 3000. It is backward-compatible with TDC 3000 I/O carrier assemblies that have been upgraded to TPS-compatible backplanes. Confirm your backplane revision with your Honeywell system documentation before installation.

Q: Do I need to reload the control strategy after replacing the module?
A: In most cases, no. The TPS system recognizes the replacement module automatically upon power restoration. However, if the module was previously configured with custom output scaling or HART parameters, those settings should be verified and re-applied via the TPS Engineering Console after installation.

Q: What communication protocols does the MC-TAOY22 support?
A: The module communicates over Honeywell’s proprietary UCN (Universal Control Network) and LCN (Local Control Network) protocols. It does not natively support Modbus, PROFIBUS, or EtherNet/IP. For plants migrating to open-protocol architectures, a gateway or protocol converter will be required at the system level.

Q: What are the physical space requirements for installation?
A: The MC-TAOY22 occupies a single standard TPS I/O module slot. No additional cabinet space or DIN rail mounting is required. The module’s form factor is identical to other TPS I/O modules, ensuring a clean fit in existing cabinets without mechanical modification.

Warranty Assurance

Every Honeywell 51204172-175 MC-TAOY22 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a multi-point functional inspection including power-on self-test, output channel verification at 4 mA, 12 mA, and 20 mA setpoints, and backplane connector integrity check. Modules that do not pass all inspection criteria are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement module or full refund within the warranty period. Our technical support team is available to assist with installation queries, loop checkout guidance, and compatibility verification before and after shipment. Typical order processing time is 1–3 business days, with DHL Express and FedEx International Priority shipping options available for urgent plant requirements.

For volume procurement, blanket orders, and consignment stocking arrangements, please contact our sales team directly to discuss lead times, pricing, and quality documentation packages including test reports and certificates of conformance.
