Honeywell 51202329-802 PM Power Cable Replacement for TDC 3000

Product Overview

Honeywell 51202329-802 PM Power Cable Replacement for TDC 3000: Seamless Transition & Legacy System Compatibility

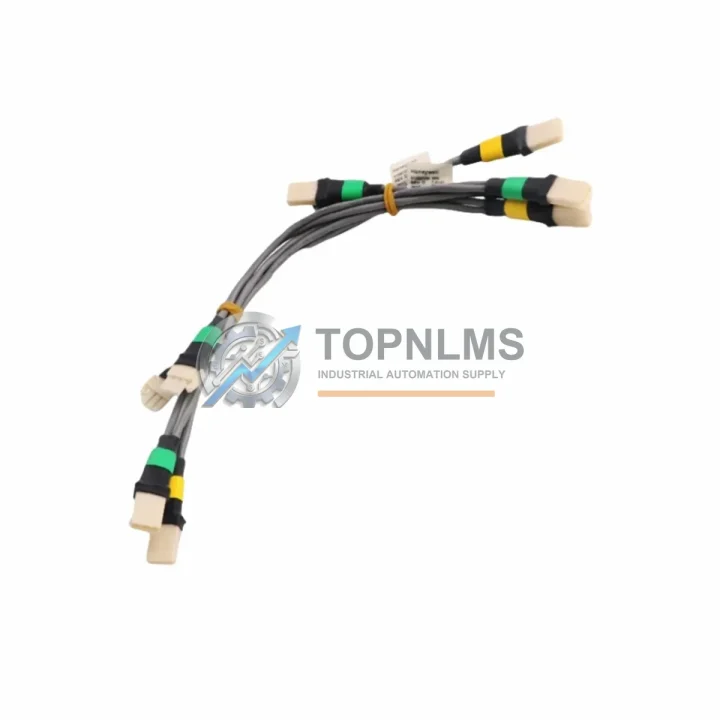

The Honeywell 51202329-802 PM Power Cable Set with Link Protect Rev C is a critical interconnect component within the TDC 3000 and Experion PKS distributed control system architecture. As Honeywell progressively phases out legacy TDC 3000 hardware, many facilities operating Process Manager (PM) controllers, Hiway Gateway modules, and associated I/O subsystems face urgent cable replacement or system migration challenges. This listing addresses that need directly — providing a verified, tested, and immediately shippable replacement cable assembly that preserves your existing wiring infrastructure and minimizes engineering rework.

The 51202329-802 is specifically designed for the PM Power Cable Set application, incorporating Link Protect circuitry (Rev C) that safeguards the communication link between the Process Manager controller and its associated I/O Link modules. When a cable of this type fails or degrades, the consequences extend beyond a simple wire swap — loss of link integrity can trigger controller faults, I/O scan failures, and unplanned shutdowns across the entire PM node. Sourcing a direct replacement with the correct revision level is therefore non-negotiable for maintaining system stability.

For plants currently running TDC 3000 systems alongside newer Experion PKS infrastructure in a hybrid or phased migration topology, the 51202329-802 remains fully compatible with both environments. Experion PKS retains backward compatibility with TDC 3000 PM hardware through the Experion Migration strategy, meaning this cable can continue to serve its original function even after a partial controller upgrade — for example, when a C300 Controller or EHPM (Enhanced Hiway Performance Module) has been introduced into the same cabinet while legacy PM nodes remain active.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC 3000 PM node repair or migration rarely involves a single component. In practice, engineers replacing the 51202329-802 PM Power Cable Set are often simultaneously addressing adjacent hardware in the same cabinet or rack. The PM Power Supply module — typically a 51195156-100 or equivalent — should be inspected and replaced if it shows signs of capacitor aging or voltage drift, as a degraded power supply accelerates cable insulation wear. Similarly, the PM I/O Link Terminator and associated I/O Link cables connecting the PM controller to remote I/O expansion racks are subject to the same environmental stress and should be evaluated as a set.

For facilities undertaking a broader Experion PKS migration, the introduction of a C300 Controller alongside existing PM nodes requires careful attention to the Hiway Gateway (HG) module, which bridges TDC 3000 Hiway traffic to the Experion FTE (Fault Tolerant Ethernet) network. The HG module’s internal cabling and backplane connections are closely related to the PM Power Cable Set in terms of installation sequence and cabinet layout. Ensuring the 51202329-802 is correctly seated before commissioning the HG module prevents link contention errors during the migration cutover.

On the I/O side, plants migrating from TDC 3000 PMIO to Experion Series C I/O or FOUNDATION Fieldbus I/O modules will find that the physical cable routing in the PM cabinet must be replanned. The 51202329-802 cable set’s routing path is typically shared with analog input termination assemblies (TAs) and digital output TAs connected to the PM I/O card slots. Replacing the power cable at the same time as upgrading to Series C I/O modules — such as the HC900 analog input module or equivalent Experion I/O — reduces the number of cabinet access events and minimizes production interruption.

Communication integrity during and after the upgrade depends on the correct configuration of the Hiway Interface Module (HIM) and, where applicable, the Data Hiway Coupler. These modules interact directly with the PM controller’s communication stack, and any cable degradation in the PM Power Cable Set can manifest as intermittent Hiway communication faults that are difficult to diagnose without first ruling out the cable as the root cause. Replacing the 51202329-802 as a first corrective action is therefore standard practice in TDC 3000 troubleshooting workflows.

For sites that have already introduced an Experion PKS EHPM to replace a legacy PM controller, the 51202329-802 may still be required during the transition period when the EHPM operates in PM emulation mode. In this configuration, the EHPM occupies the same backplane slot as the original PM and uses the same power cable interface, making the 51202329-802 a direct fit without any backplane modification. This is a key advantage of the Rev C cable set — it supports both the legacy PM and the EHPM in the same physical installation, reducing the spare parts inventory required during a phased migration.

Retrofit Guidance FAQ

Q: Does replacing the 51202329-802 require any wiring changes at the field terminal level?
A: No. The 51202329-802 is an internal cabinet cable connecting the PM controller backplane to the PM power supply. Field wiring at the marshalling cabinet or junction box level is unaffected. The replacement is confined to the PM cabinet interior and requires no changes to field instrument loops, signal cables, or termination assemblies.

Q: Is the Rev C cable backward compatible with earlier PM controller firmware versions?
A: Yes. The Rev C designation reflects an improvement to the Link Protect circuitry, not a change to the electrical interface or communication protocol. The cable is fully backward compatible with all TDC 3000 PM controller firmware versions and does not require a firmware update on the PM or any associated module.

Q: Can this cable be used in an Experion PKS system that has not yet migrated from TDC 3000?
A: Yes. The 51202329-802 is compatible with both pure TDC 3000 environments and hybrid TDC 3000 / Experion PKS topologies. It is the correct cable for any PM node regardless of whether the broader system has been migrated to Experion PKS.

Q: What is the installation procedure for replacing this cable in a live PM node?
A: Honeywell’s standard procedure requires placing the affected PM node in a safe state (controller in backup or standby mode if redundancy is available) before disconnecting the power cable. In non-redundant configurations, a planned shutdown of the PM node is required. The cable replacement itself is a tool-free operation — the connectors are keyed and latch-secured. After reconnection, the PM controller performs a self-test and resumes normal operation within the standard boot cycle.

Q: How do I verify the correct revision level before installation?
A: The revision level (Rev C) is printed on the cable assembly label. TOPNLMS verifies the revision level during pre-shipment inspection and includes the revision confirmation in the shipping documentation. If you require a specific revision for compatibility with your site’s spare parts register, please confirm at the time of order.

Q: What communication faults are typically resolved by replacing this cable?
A: Common fault codes associated with PM Power Cable degradation include PM Link Fault, I/O Link Communication Error, and PM Power Fail alarms in the TDC 3000 or Experion PKS alarm management system. If these faults are intermittent and correlate with temperature cycling or vibration events, the power cable set is a primary suspect and should be replaced before pursuing controller or I/O module replacement.

Warranty Assurance

Every 51202329-802 PM Power Cable Set with Link Protect Rev C shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Our pre-shipment inspection process includes visual inspection of connector integrity, cable jacket condition, and revision label verification. Each unit is individually packaged in anti-static protective packaging with a serialized inspection record.

In the event of a warranty claim, TOPNLMS provides a direct replacement unit at no additional cost, with priority dispatch to minimize your system downtime. Our after-sales response target is 24 hours for warranty inquiries, and replacement units are typically dispatched within 3 business days of claim confirmation. We maintain buffer stock of the 51202329-802 specifically to support warranty replacements without lead time delays.

For procurement teams requiring documentation, we can provide a Certificate of Conformance, pre-shipment inspection report, and packing list in advance of shipment. All units are shipped from Xiamen, China via DHL Express or FedEx International Priority, with full tracking provided at the time of dispatch. Estimated transit time to most destinations is 3–7 business days.

TOPNLMS specializes in legacy DCS and PLC spare parts for industrial control system maintenance and migration projects. Our inventory is sourced from authorized channels and verified against OEM specifications before listing. We understand the criticality of control system uptime and the procurement pressure that comes with sourcing end-of-life components — our goal is to be a reliable, responsive supplier that reduces your sourcing risk.

For volume orders, site-wide spare parts packages, or technical pre-sales consultation on TDC 3000 / Experion PKS migration projects, please contact us directly.
