Honeywell 51202329-212 Replacement Drop Cable TDC 3000: Seamless Field Wiring Upgrade for Legacy DCS Systems

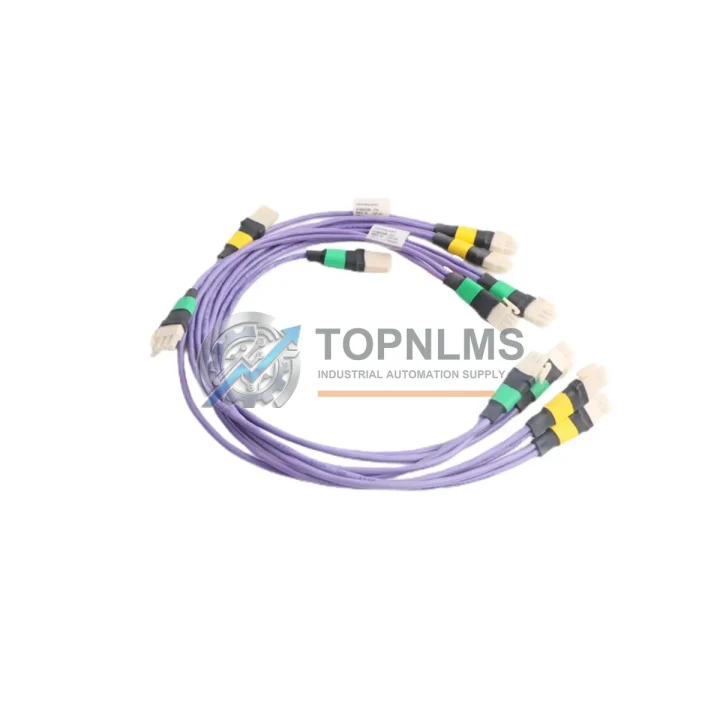

The Honeywell 51202329-212 is a violet-coded drop cable designed for field wiring within the TDC 3000 Distributed Control System architecture. As Honeywell progressively transitions its installed base toward the Experion PKS platform, many facilities operating legacy TDC 3000 cabinets face the challenge of sourcing reliable, specification-matched replacement cables to maintain uptime without committing to a full system overhaul. This listing provides a direct replacement and upgrade solution for the 51202329-212, supporting smooth, low-risk migration strategies for process plants, refineries, chemical facilities, and power generation sites.

The 51202329-212 drop cable serves as the physical link between field junction boxes and the TDC 3000 High-Performance Process Manager (HPM) or Basic Process Manager (BPM) I/O termination assemblies. Its violet color coding is part of Honeywell’s standardized wiring convention, enabling technicians to quickly identify signal types during installation, maintenance, and troubleshooting. When this cable degrades, is damaged, or reaches end-of-life, replacing it with a specification-identical unit is critical to preserving signal integrity across the 4–20 mA analog loops and discrete I/O channels it supports.

For facilities undertaking a phased migration from TDC 3000 to Experion PKS or Experion LX, maintaining the existing field wiring infrastructure—including drop cables like the 51202329-212—is a proven cost-reduction strategy. Rather than replacing all field cables simultaneously, engineers can retain the existing termination assemblies and junction boxes while upgrading the controller modules, I/O cards, and communication infrastructure incrementally. This approach minimizes installation labor, reduces the risk of wiring errors during cutover, and allows production to continue with minimal interruption.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC 3000 field wiring upgrade or migration rarely involves a single cable. In practice, the 51202329-212 drop cable is replaced as part of a broader effort to restore or modernize the I/O termination layer. During such projects, engineers typically also address the condition of the associated Honeywell 51304485-100 I/O Link Interface Module, which manages communication between the field termination assemblies and the process manager. If the termination assembly itself—such as the Honeywell 51196682-100 or 51196682-200 series—shows signs of corrosion or connector wear, it is best practice to replace both the cable and the termination block simultaneously to avoid repeat outages.

In marshalling cabinet environments, the 51202329-212 often runs alongside other color-coded drop cables such as the 51202329-200 (grey) and 51202329-225 (orange), which serve different I/O channel groups within the same HPM cabinet. Replacing a full set of drop cables during a planned shutdown window is more cost-effective than addressing individual failures reactively. The Honeywell 51401288-100 Power Supply Module and 51401288-200 redundant power supply should also be inspected during any cable replacement campaign, as power quality directly affects signal integrity on analog loops.

For sites transitioning to HART-enabled field devices, the existing drop cable infrastructure can often be retained while upgrading the I/O cards to HART-capable modules such as the Honeywell 51304516-150 Analog Input Module. This allows facilities to gain access to HART diagnostic data without rewiring the field junction boxes. Similarly, if the migration path includes moving toward Foundation Fieldbus or PROFIBUS PA, a Honeywell FF-HSE Linking Device or a third-party fieldbus segment coupler can be introduced at the marshalling level, preserving the existing drop cable runs to the junction boxes while modernizing the communication backbone.

Control cabinet space is frequently a constraint during TDC 3000 modernization projects. The 51202329-212 drop cable’s standard form factor ensures it fits within existing cable trays and conduit runs without requiring structural modifications to the cabinet. When combined with a Honeywell 51309276-150 or equivalent FTA (Field Termination Assembly) upgrade, the overall footprint of the I/O termination layer can be maintained or even reduced, freeing space for additional I/O capacity or redundant communication modules.

Retrofit Guidance FAQ

Q: Can the 51202329-212 be used without any re-programming of the TDC 3000 controller?
A: Yes. The 51202329-212 is a passive wiring component. Replacing it does not require any changes to the HPM or BPM controller configuration, I/O channel assignments, or control strategy. The replacement is transparent to the control system software.

Q: Is the wiring pinout identical to the original cable?
A: The replacement 51202329-212 is manufactured to the same pinout and connector specification as the original Honeywell part. No rewiring of the field junction box or termination assembly is required.

Q: What communication protocols are supported through this cable?
A: The 51202329-212 supports hardwired 4–20 mA analog signals and discrete I/O. It is also HART-transparent, meaning HART-enabled field devices can communicate over the same wiring without modification, provided the connected I/O card supports HART.

Q: Will this cable fit in the existing cable tray and conduit?
A: Yes. The cable dimensions and connector form factor are identical to the original, ensuring compatibility with existing cable management infrastructure in TDC 3000 marshalling cabinets.

Q: Can this cable be used during a phased migration to Experion PKS?
A: Yes. During a phased migration, the existing field wiring—including the 51202329-212—can be retained while the controller and I/O modules are upgraded. This is a standard approach recommended for minimizing cutover risk and reducing field labor costs.

Q: What is the lead time and shipping arrangement?
A: Stock is held in Xiamen, China. Orders are typically dispatched within 1–3 business days. International shipping is available via DHL, FedEx, and UPS Express. Expedited shipping options are available for urgent plant maintenance requirements.

Warranty Assurance

Every 51202329-212 drop cable supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes continuity testing, insulation resistance verification, and connector integrity inspection to confirm it meets the original Honeywell specification. If a unit is found to be defective within the warranty period, TOPNLMS will arrange a replacement or full refund at no additional cost to the buyer.

Our after-sales support team is available to assist with installation queries, compatibility confirmation, and documentation requests. For urgent plant maintenance situations, we offer priority processing and expedited shipping to minimize your downtime exposure. All units are shipped with appropriate anti-static and moisture-barrier packaging to ensure they arrive in factory condition.

TOPNLMS maintains a standing inventory of TDC 3000 series components to support both emergency replacement and planned maintenance programs. We work directly with procurement teams, MRO buyers, and plant engineering departments to provide accurate lead times, batch traceability, and consolidated shipment options for multi-item orders.
