Honeywell 51202329-102/202 I/O Link Cable Pair TDC 3000 TPS

Product Overview

Honeywell 51202329-102/202 I/O Link Cable Pair – Seamless TDC 3000 & TPS DCS Upgrade Solution

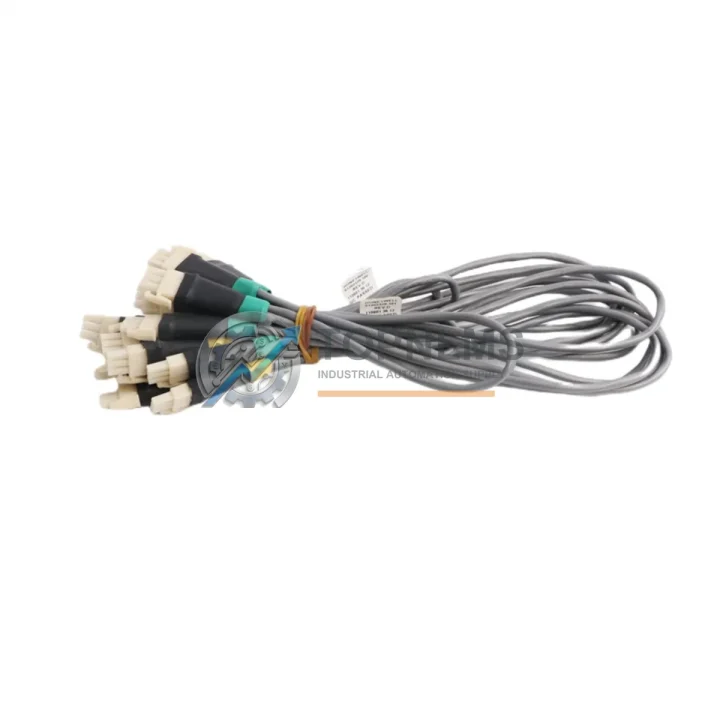

The Honeywell 51202329-102 and 51202329-202 form a matched I/O Link Cable Pair engineered for the TDC 3000 and TotalPlant Solution (TPS) Distributed Control System architecture. As Honeywell progressively phases out legacy TDC 3000 hardware, facilities running aging control networks face increasing pressure to source reliable, specification-compliant cable assemblies that maintain signal integrity across the I/O Link bus without requiring rewiring, re-engineering, or extended plant shutdowns.

This cable pair serves as the physical communication backbone between the High-Performance Process Manager (HPPM) or Advanced Process Manager (APM) controller nodes and their associated I/O Link termination assemblies. The 51202329-102 functions as the primary link cable, while the 51202329-202 provides the redundant or secondary path — together ensuring the dual-redundant communication topology that TDC 3000 and TPS installations depend on for continuous process control in refining, petrochemical, power generation, and pharmaceutical environments.

When a plant engineer initiates a partial migration from a TDC 3000 backbone toward a modern Experion PKS platform, the I/O Link infrastructure is frequently retained during the transition phase. Maintaining the 51202329-102/202 cable pair in service allows the Universal Control Network (UCN) and legacy I/O subsystems to remain operational while new Experion C300 controllers and FOUNDATION Fieldbus or HART I/O modules are phased in progressively — dramatically reducing the capital expenditure and risk associated with a full cutover migration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC 3000 or TPS migration rarely involves a single component. In practice, the 51202329-102/202 cable pair replacement is typically executed alongside a broader set of infrastructure updates. During the I/O Link cable swap, maintenance teams frequently audit and replace the associated 51304485-100 I/O Link Terminator to eliminate signal reflection issues that accumulate in aging bus networks. Where the existing 51401469-100 Power Supply Module shows signs of capacitor degradation or output voltage drift, it is replaced concurrently to prevent nuisance trips after the cable restoration.

In facilities upgrading from a 51198685-100 High-Performance Process Manager (HPPM) to a newer controller node, the I/O Link cable pair must be verified against the new controller’s backplane pinout before commissioning. Similarly, when integrating 51309288-175 Analog Input Modules or 51305890-175 Analog Output Modules into an expanded I/O subsystem, the cable pair routing and shield grounding must be re-validated to maintain EMI immunity in high-noise industrial environments.

For sites transitioning communication architecture from the legacy Data Hiway to a modern Ethernet-based Fault Tolerant Ethernet (FTE) backbone, the I/O Link layer is often the last segment to be migrated. During this window, the 51202329-102/202 pair keeps the existing 51401298-100 I/O Link Interface Module and downstream field termination assemblies fully operational. Facilities also commonly replace the 51196659-100 Operator Interface Station (OIS) display hardware during this phase, while retaining the I/O Link infrastructure to avoid simultaneous multi-system cutovers that increase commissioning risk.

Where control cabinet space is constrained, engineers may opt to install a 51304516-100 Cable Tray Bracket or equivalent cable management accessory to route the replacement cable pair without disturbing adjacent wiring harnesses. This is particularly relevant in older TDC 3000 cabinets where cable density is high and physical access to the I/O Link backplane connectors is limited.

Retrofit Guidance FAQ

Q: Is rewiring required when replacing the 51202329-102/202 cable pair?
A: No. The replacement cable pair uses the same proprietary connector interface and pinout as the original OEM assembly. Replacement is a direct swap — disconnect the existing cables from the I/O Link backplane and termination assembly, install the new pair, and verify bus continuity before returning the controller to service.

Q: Will the replacement cables work with both TDC 3000 and TPS platforms?
A: Yes. The 51202329-102 and 51202329-202 are compatible across the TDC 3000 and TPS (TotalPlant Solution) platforms, including HPPM, APM, PM, and HPM controller variants. Verify the cable length specification against your cabinet layout before ordering.

Q: Are there programming changes required after cable replacement?
A: No software or configuration changes are required. The I/O Link protocol operates at the physical layer; replacing the cable pair does not affect controller logic, I/O addressing, or process variable scaling. The controller will resume normal I/O Link communication after the cable swap without requiring a download or re-initialization.

Q: How do I verify communication integrity after installation?
A: After installation, use the TDC 3000 or Experion PKS diagnostic utilities to confirm I/O Link bus status. Check for fault indicators on the I/O Link Interface Module and verify that all downstream I/O modules report normal communication status in the system console. A loopback test on the redundant path (51202329-202) is recommended before returning the system to automatic control.

Q: What if my cabinet has limited physical space for cable routing?
A: The replacement cable pair maintains the same form factor as the original assembly. In high-density cabinets, use the existing cable tray infrastructure and avoid sharp bends near the connector terminations to preserve signal integrity. If additional cable management is required, consult your cabinet layout drawings before installation.

Warranty Assurance

Every Honeywell 51202329-102 and 51202329-202 I/O Link Cable Pair shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to dispatch, each cable assembly undergoes continuity testing, connector integrity inspection, and visual quality verification to confirm it meets the dimensional and electrical specifications of the original Honeywell OEM part.

In the event of a confirmed defect within the warranty period, TOPNLMS provides direct replacement support with priority processing to minimize impact on your maintenance schedule. Our technical team is available to assist with pre-shipment specification confirmation, installation guidance, and post-installation fault diagnosis. Stock is maintained in Xiamen for fast dispatch to customers across Asia-Pacific, the Middle East, and Europe, with typical lead times of 3–7 business days for in-stock items.

For procurement teams requiring documentation, we can provide product datasheets, test reports, and packing lists upon request. All orders are processed with full traceability records to support your incoming inspection and asset management requirements.
