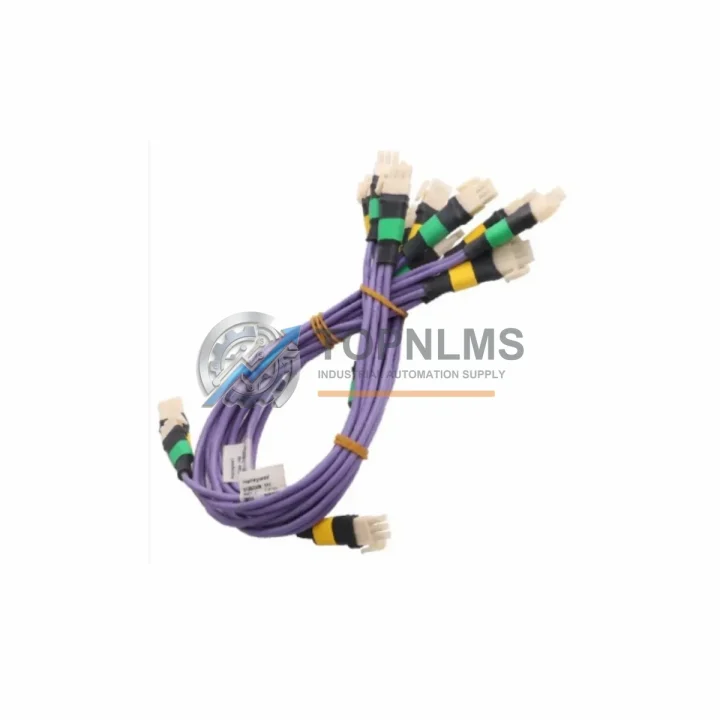

Honeywell 51202329-101 I/O Link Cable – Seamless TDC 3000 / TPS DCS Upgrade & Replacement

The Honeywell 51202329-101 I/O Link Cable is a critical interconnect component within the TDC 3000 and TPS Distributed Control System architecture. As Honeywell progressively phases out legacy TDC 3000 hardware, many facilities operating continuous process control environments — including refineries, chemical plants, and power generation sites — face the challenge of sourcing reliable, drop-in replacements without disrupting live production. This listing provides a verified, ready-to-ship replacement for the 51202329-101, fully compatible with the original TDC 3000 I/O Link bus topology and TPS system architecture.

The I/O Link cable serves as the physical communication backbone between the High-Performance Process Manager (HPPM) or the Advanced Process Manager (APM) and their associated I/O Link Interface Modules (ILIMs). Replacing a degraded or failed 51202329-101 without interrupting the I/O Link bus requires careful attention to cable length, connector pinout, and shielding continuity. Our replacement units are manufactured to the original Honeywell specification, ensuring that the I/O Link protocol — which operates at a fixed baud rate over a dedicated twisted-pair segment — is maintained without reconfiguration of the HPPM or APM controller parameters.

For sites migrating from older TDC 3000 configurations toward TPS or Experion PKS, the 51202329-101 replacement integrates directly into existing cable trays and marshalling cabinets. No re-termination of field wiring is required at the I/O termination assemblies, and the cable’s shielded construction is compatible with the grounding scheme used across standard Honeywell Universal Control Network (UCN) cabinets. Engineers performing a phased migration — retaining legacy HPPM modules while introducing new Experion C300 controllers — will find this cable essential for maintaining I/O Link continuity during the transition period.

When planning a TDC 3000 to TPS or Experion migration, the 51202329-101 I/O Link Cable is typically replaced alongside several related components. The I/O Link Interface Module (ILIM), part number 51304485-100, is the most common co-replacement item, as cable and module wear are correlated in high-cycle environments. The Power Supply Module 51401288-100 should also be inspected, since I/O Link signal degradation is frequently caused by marginal bus voltage rather than cable failure alone. For sites using the File Control Module (FCM) 51304516-100 as a gateway between the UCN and the I/O Link, verifying FCM firmware compatibility with the replacement cable’s shielding specification is recommended before commissioning.

In marshalling cabinet retrofits, the 51202329-101 is often routed alongside the Multifunction Processor (MFP) 51401195-100 and the associated I/O termination assemblies. Replacement of the I/O Link cable in this context should be coordinated with inspection of the Cabinet Power Entry Module and the 24 VDC distribution bus to avoid introducing ground loops. For facilities that have already upgraded their operator interface from the original Universal Station (US) to a modern Experion Flex Station or a third-party HMI, the I/O Link cable replacement can be performed during a scheduled maintenance window without requiring a full system shutdown, provided the redundant I/O Link path — if configured — remains active.

Sites operating Honeywell PM I/O modules such as the Analog Input Module 51304754-150 or the Digital Output Module 51308385-175 will find that the 51202329-101 replacement maintains full backward compatibility with the I/O Link polling cycle. No changes to the I/O Link address assignments or the HPPM configuration database are required. For applications where the I/O Link segment spans more than 30 meters, the use of an I/O Link Repeater Module 51401362-100 is recommended to maintain signal integrity, and this repeater is fully compatible with the replacement cable.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC 3000 or TPS I/O Link cable replacement is rarely a standalone task. In practice, field engineers replacing the 51202329-101 will simultaneously inspect or replace the I/O Link Interface Module (ILIM) 51304485-100, which terminates the I/O Link bus at the process manager end. If the HPPM or APM chassis shows signs of backplane wear, the Controller Personality Module 51401195-100 and the associated I/O Link Terminator 51401362-100 should be staged as part of the same maintenance kit.

For sites transitioning from TDC 3000 to a hybrid TPS/Experion architecture, the replacement cable is typically installed in parallel with new Experion C300 Controller modules and their associated I/O Link Adapter cards. The 24 VDC Power Supply Module 51401288-100 and the Cabinet Fan Assembly 51401490-100 are commonly replaced during the same outage window to minimize future unplanned downtime. Where field signal conditioning is required, DIN-rail mounted signal isolators and terminal block assemblies compatible with the existing Honeywell marshalling standard are recommended to maintain wiring continuity without re-engineering the field junction boxes.

For facilities using Honeywell’s Series C I/O or the newer CIOM-A I/O modules in a mixed TPS/Experion environment, the 51202329-101 I/O Link cable remains the correct interconnect for the legacy I/O Link segments, while new FOUNDATION Fieldbus or PROFIBUS segments can be introduced in parallel without disrupting the existing I/O Link topology.

Retrofit Guidance FAQ

Q: Can I replace the 51202329-101 without shutting down the I/O Link bus?
A: If your system is configured with a redundant I/O Link path, the cable on the primary path can be replaced while the secondary path maintains communication. For non-redundant configurations, a brief I/O Link interruption is unavoidable; coordinate with your DCS operator to place affected loops in manual before proceeding.

Q: Does the replacement cable require any changes to the HPPM or APM configuration?
A: No. The 51202329-101 replacement is a direct physical substitute. No changes to the I/O Link address map, the HPPM configuration database, or the UCN node parameters are required.

Q: Is the replacement compatible with both TDC 3000 and TPS systems?
A: Yes. The I/O Link protocol and physical interface are identical across TDC 3000 and TPS platforms. The replacement cable is compatible with both architectures.

Q: What is the maximum I/O Link segment length supported?
A: The standard I/O Link segment length is up to 30 meters without a repeater. For longer runs, an I/O Link Repeater Module 51401362-100 is required and is fully compatible with this replacement cable.

Q: Can this cable be used in an Experion PKS migration?
A: Yes, for legacy I/O Link segments retained during a phased Experion migration. New Experion C300 I/O uses a different physical interface, but existing TDC 3000 / TPS I/O Link segments can remain in service using this cable until full migration is complete.

Q: What grounding precautions are required during installation?
A: Maintain the original shield grounding scheme — ground the cable shield at one end only (typically the process manager end) to avoid ground loops. Verify continuity of the drain wire before reconnecting the I/O Link bus.

Warranty Assurance

Every 51202329-101 I/O Link Cable shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including connector integrity check, continuity test across all conductors, and shield isolation measurement. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our standard lead time for in-stock units is 3–7 business days from Xiamen, China, with DHL Express and FedEx International Priority available for urgent requirements. For large-quantity orders or project-based procurement, staged delivery and consignment stocking arrangements can be discussed with our sales team.

Our after-sales support team is available to assist with installation queries, compatibility verification, and cross-reference confirmation. We maintain a technical library of Honeywell TDC 3000 and TPS documentation to support your engineering team during retrofit and migration projects.
