Honeywell 51201602-100 Replacement for TDC 3000 TPS

Product Overview

Honeywell 51201602-100 Replacement for TDC 3000 TPS: Seamless Transition & Legacy System Compatibility

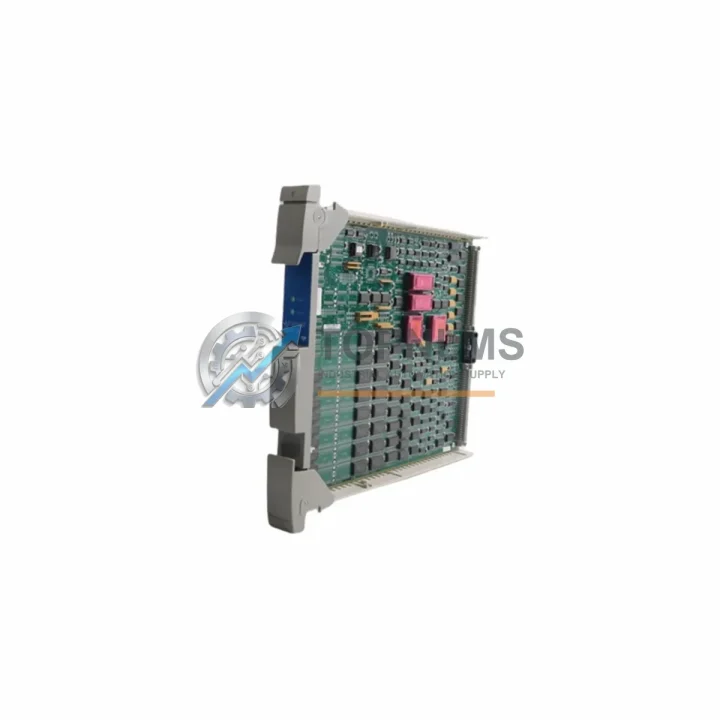

The Honeywell 51201602-100 is a Pulse Input Module originally designed for the TDC 3000 and TPS (TotalPlant Solution) Distributed Control System platforms. As these legacy DCS architectures approach end-of-life and spare parts become increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacement units that preserve existing wiring infrastructure, communication architecture, and control logic without triggering a full system overhaul.

TOPNLMS supplies the Honeywell 51201602-100 as a direct replacement module, fully tested and ready for installation into existing TDC 3000 / TPS racks. Each unit is inspected against original Honeywell specifications before dispatch, ensuring that pulse counting accuracy, input impedance, and signal conditioning performance meet the demands of continuous process environments including refining, petrochemical, power generation, and pulp & paper operations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a degraded or obsolete TDC 3000 subsystem rarely involves a single module. In practice, the 51201602-100 Pulse Input Module operates alongside a broader ecosystem of Honeywell TPS components that must be evaluated as part of any retrofit or emergency replacement project.

When replacing the 51201602-100, engineers frequently audit adjacent I/O cards in the same rack, including Analog Input Modules such as the Honeywell 51304485-100 and Digital Output Modules like the 51201329-102, both of which share the same rack backplane and FTA wiring conventions. If the pulse input signals originate from flow transmitters or turbine meters, the associated Field Termination Assembly — typically a Honeywell 51196887-100 or equivalent FTA — should be inspected for terminal corrosion or loose connections before the new module is seated.

For sites running the TPS platform with a Universal Control Network (UCN) backbone, the Highway Gateway Module (HGM) and the Network Interface Module (NIM) are critical upstream components. A degraded 51201602-100 can sometimes produce erroneous pulse counts that are misdiagnosed as UCN communication faults; replacing the pulse input card first eliminates this variable before escalating to network-layer troubleshooting involving the Honeywell 51401642-100 or similar NIM variants.

In control cabinets where space is constrained, the 51201602-100 replacement can be staged alongside a Power Supply Module inspection — units such as the Honeywell 51190436-102 are commonly found in the same enclosure and should be load-tested during any planned maintenance window. If the retrofit scope expands to include operator interface upgrades, the transition from legacy GUS (Global User Station) workstations to modern Experion PKS HMI nodes can proceed in parallel without interrupting the I/O layer, since the field wiring and FTA assignments remain unchanged.

Sites that have already partially migrated to the Experion PKS or C300 controller architecture can continue to use the 51201602-100 in hybrid configurations where legacy TDC 3000 I/O racks are retained as remote I/O nodes. In these scenarios, the Honeywell EPLCG2 or equivalent gateway card bridges the legacy UCN bus to the modern FTE (Fault Tolerant Ethernet) network, allowing the pulse input data to be consumed by the new controller without re-terminating field wiring.

Retrofit Guidance FAQ

Q: Can I swap the 51201602-100 without modifying existing field wiring?
A: Yes. The replacement module uses the same FTA connector and terminal assignments as the original. No re-termination is required at the junction box or marshalling cabinet level.

Q: Do I need to reload the control database or reconfigure the module after installation?
A: In most TDC 3000 / TPS installations, the module configuration is stored in the UCN database on the History Module or LCN node. After physical replacement, the system typically auto-downloads the configuration to the new card during the next scan cycle. Manual re-entry is only required if the database record was previously deleted.

Q: Is the 51201602-100 compatible with both TDC 3000 and TPS rack variants?
A: Yes. The module is mechanically and electrically compatible with standard TDC 3000 I/O racks and TPS I/O Link racks. Verify the rack revision level against Honeywell’s compatibility matrix if operating in a mixed-generation environment.

Q: What communication protocol does this module use?
A: The 51201602-100 communicates over the proprietary Honeywell I/O Link bus within the rack. No external fieldbus (PROFIBUS, Modbus, HART) configuration is required for this module type.

Q: How do I verify the replacement module is functioning correctly after installation?
A: Use the TPS Engineering Console or Universal Station diagnostic screens to confirm the module status LED is green and that pulse count values are incrementing correctly against a known reference signal. TOPNLMS recommends a bench test with a pulse generator prior to installation in critical loops.

Warranty Assurance

Every Honeywell 51201602-100 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a multi-point functional inspection including power-on self-test, input channel verification, and visual inspection for component damage or counterfeit indicators. Units that do not pass inspection are quarantined and never shipped.

In the event of a confirmed module failure within the warranty period, TOPNLMS will arrange a replacement unit at no additional cost. Our technical support team is available to assist with installation queries, compatibility verification, and fault diagnosis via email at [email protected] or by phone at +86 18359293191.

For urgent plant shutdowns or unplanned outages, TOPNLMS maintains ready stock of common TDC 3000 / TPS replacement modules and can arrange expedited shipping from our Xiamen warehouse to minimize process downtime. Standard lead time for in-stock units is 3–5 business days internationally, with express options available on request.

Procurement teams can request a formal quotation, certificate of conformance, or packing list for customs clearance purposes. All shipments are accompanied by a test report and traceable documentation to support your site’s maintenance records and audit requirements.
