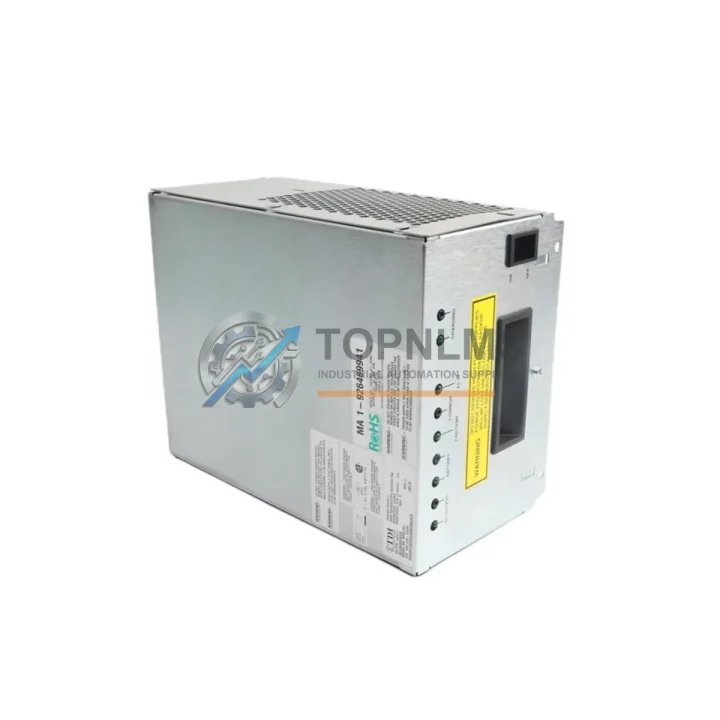

Honeywell 51198651-100 SPS5785 Replacement for TDC 3000 — Smooth Migration & Legacy System Upgrade

The Honeywell 51198651-100 SPS5785 is a high-reliability DCS power supply module engineered for the Honeywell TDC 3000 and Experion PKS distributed control system platforms. As aging TDC 3000 installations approach end-of-support milestones and original SPS5785 units become increasingly difficult to source through standard channels, plant engineers and procurement teams are actively seeking verified replacement and upgrade paths that minimize process disruption, preserve existing wiring infrastructure, and avoid costly full-system overhauls.

TOPNLMS maintains ready inventory of the 51198651-100 SPS5785 to support emergency replacements, planned shutdowns, and phased migration projects across refining, petrochemical, power generation, and continuous manufacturing facilities worldwide. Each unit is inspected, function-tested, and shipped with full documentation to support your site acceptance testing and commissioning workflow.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SPS5785 power supply replacement rarely occurs in isolation. In most TDC 3000 and Experion PKS retrofit projects, the power supply swap is coordinated alongside related hardware to ensure system-wide stability and minimize the number of planned outage windows required.

When replacing the 51198651-100 SPS5785, site engineers commonly audit and pre-stage the Honeywell 51304485-100 High-Performance Process Manager (HPM) controller module, which shares the same power rail architecture and is often due for concurrent replacement in aging cabinets. The 51401469-200 I/O Link module and associated 51304516-200 analog input modules are frequently inspected at the same time, as power supply degradation can cause intermittent I/O faults that are misdiagnosed as field instrument failures.

For facilities running the Universal Control Network (UCN), the 51401584-100 UCN tap and 51304453-100 Network Interface Module (NIM) should be verified for compatibility with the replacement power supply’s output tolerances. Projects that extend to the Local Control Network (LCN) workstation layer may also require the 51401196-100 LCN cable assembly and updated 51198947-100 termination panels to complete the migration cleanly.

Where the retrofit scope includes upgrading from TDC 3000 to a modern Experion PKS C300 or C200E controller architecture, the 51309276-175 EPKS I/O Link and 51454501-175 Series C I/O modules provide a forward-compatible migration path while reusing existing field wiring and junction boxes. A CC-TAIX01 analog input FTA (Field Termination Assembly) is typically added to bridge legacy signal wiring to the new I/O subsystem without re-pulling cables.

In all cases, TOPNLMS can assist with multi-line procurement to consolidate the above components into a single shipment, reducing lead time complexity and simplifying incoming inspection at your facility.

Retrofit Guidance FAQ

Q: Can I replace the SPS5785 without taking the entire TDC 3000 cabinet offline?
A: In redundant power supply configurations, the standby unit can be replaced while the active unit continues to power the chassis. For single-supply installations, a brief controlled shutdown of the affected cabinet is required. TOPNLMS recommends coordinating with your DCS vendor’s field service team for the first hot-swap on a redundant pair.

Q: Will the replacement unit require any changes to the TDC 3000 configuration database?
A: No. The SPS5785 is a passive power conversion device with no addressable identity on the UCN or LCN. No database modifications, tag reassignments, or controller downloads are required following installation.

Q: Are the output voltage tolerances identical to the original unit?
A: Yes. The replacement 51198651-100 meets the same ±5% output regulation specifications as the original Honeywell-manufactured unit, ensuring that all connected I/O modules, controllers, and communication cards receive power within their rated input range.

Q: What physical space is required for installation?
A: The SPS5785 occupies a dedicated power supply slot in the standard TDC 3000 cabinet. No additional panel space, DIN rail, or mounting hardware is required. The unit slides into the existing bay and secures with the original captive fasteners.

Q: Can this unit be used in Experion PKS cabinets as well as TDC 3000?
A: Yes. The 51198651-100 SPS5785 is compatible with both TDC 3000 and early Experion PKS cabinet configurations that share the same power supply bay standard. Confirm your cabinet revision with your Honeywell system documentation before ordering.

Q: What commissioning checks should be performed after installation?
A: Verify output voltages on all rails under load using a calibrated multimeter before restoring controller power. Confirm fan operation, check for alarm annunciation on the operator station, and log the replacement in your site maintenance management system (CMMS) for warranty tracking purposes.

Warranty Assurance

Every Honeywell 51198651-100 SPS5785 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a multi-point functional test including input voltage range verification, output rail load testing, fan operation check, and visual inspection for component condition and connector integrity.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our technical support team at [email protected] with your order reference and a description of the fault. We will arrange priority dispatch of a replacement unit and, where logistics permit, coordinate return of the defective module for root-cause analysis.

Our procurement guarantee includes accurate part number verification before shipment, export-compliant packaging for international freight, and full traceability documentation (test report, packing list, and commercial invoice) to support your incoming goods inspection and ERP receiving process.

For urgent requirements — including same-day quotation, expedited air freight, and weekend order processing — contact our sales team directly. TOPNLMS maintains stock buffers specifically for emergency replacement scenarios to support unplanned outages and critical production continuity situations.
