Honeywell 51195199-010 Original Industrial Spare TDC 3000 Compatible

Product Overview

Honeywell 51195199-010 Original Industrial Spare TDC 3000 Compatible: System Stability and Industrial Spare Maintenance Value

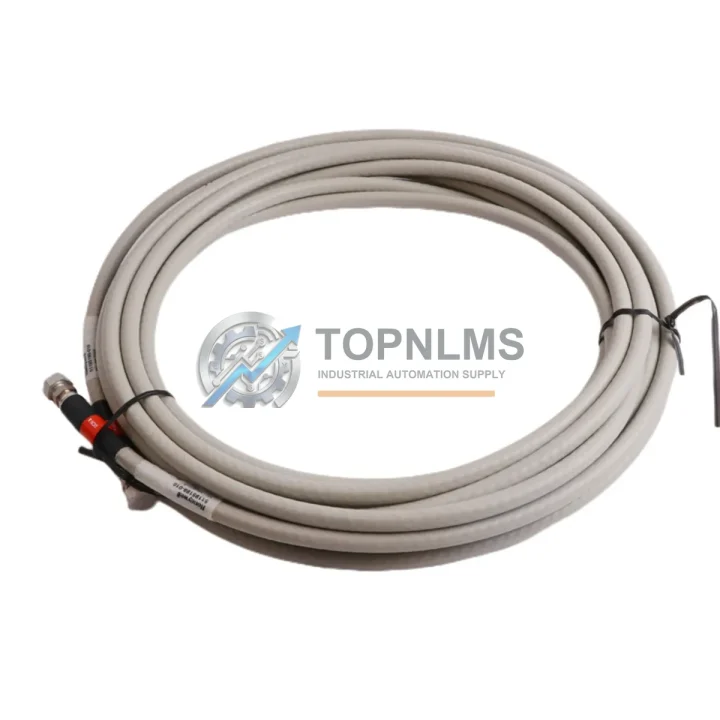

The Honeywell 51195199-010 is a factory-original 10-meter coaxial drop cable assembly engineered for the TDC 3000 and Experion PKS Distributed Control System (DCS) platforms. In process industries — including refining, petrochemical, power generation, and continuous manufacturing — the integrity of the Data Highway communication backbone is non-negotiable. A degraded or failed coaxial drop cable can silently corrupt controller-to-controller communication, trigger spurious alarms, or cause complete segment loss, resulting in unplanned shutdowns that cost thousands of dollars per hour.

Sourced directly from Honeywell’s authorized supply chain, the 51195199-010 meets the original impedance, shielding, and connector specifications required for reliable Data Highway Plus (DH+) and Local Control Network (LCN) segment performance. Unlike aftermarket substitutes, this original assembly eliminates the risk of impedance mismatch, signal reflection, and premature connector failure — all common causes of intermittent DCS communication faults that are notoriously difficult to diagnose under production pressure.

For maintenance engineers managing aging TDC 3000 infrastructure or migrating toward Experion PKS, maintaining a certified stock of 51195199-010 cables is a foundational element of any credible spare parts strategy. Each unit is inspected, tested for continuity and shielding integrity, and dispatched with full documentation. A 12-month warranty is included on every shipment.

Critical Technical Specs Table

Preventive Maintenance Strategy

A coaxial drop cable replacement should never be treated as an isolated task. When a maintenance team opens a TDC 3000 or Experion PKS control cabinet to service the Data Highway segment, it is best practice to conduct a comprehensive inspection of all interconnected components — because the root cause of a communication fault is rarely limited to a single cable.

Begin by inspecting the Data Highway Plus trunk cable and its associated termination resistors (typically 75 Ω at each segment end). A faulty terminator is one of the most common causes of segment-wide communication instability and is often overlooked when only the drop cable is replaced. At the same time, verify the condition of the Honeywell LCN Tap Units (such as the 51190436-100 series) that physically connect each drop cable to the trunk — corroded or loose tap connections introduce reflections that degrade the entire segment.

Inspect the Network Interface Module (NIM) or Highway Gateway Module (HGM) associated with the affected node. These modules manage the physical and logical interface between the Data Highway and the controller or workstation, and their internal connectors are subject to the same environmental stress as the cables themselves. If the 51195199-010 is being replaced due to a node communication fault, the NIM or HGM should be tested concurrently rather than assumed healthy.

For nodes housed in Universal Control Network (UCN) or Plant Control Network (PCN) cabinets, also check the Process Manager I/O Link cables and associated I/O Link Interface Modules. A degraded I/O link can mask itself as a Data Highway issue, leading to misdiagnosis and repeated cable replacements without resolving the underlying fault.

Power supply integrity is equally critical. The Honeywell PM Power Supply modules (e.g., 51195096-100 or equivalent series) that feed the controller nodes should be load-tested during any planned outage. An under-voltage condition on the controller bus can cause intermittent communication resets that mimic cable faults. Similarly, inspect the cabinet grounding bus bars and shield drain connections — improper grounding is a leading cause of coaxial cable noise and BER errors in older TDC 3000 installations.

For sites running Honeywell C200 or C300 Controllers within an Experion PKS architecture, the preventive maintenance window is also an appropriate time to verify firmware currency on the controller modules and to inspect the FTE (Fault Tolerant Ethernet) switch connections that carry supervisory traffic alongside the legacy Data Highway. Keeping both the legacy LCN infrastructure and the modern FTE layer in verified condition is the most cost-effective way to extend system life while planning a phased migration.

Finally, document all cable serial numbers, installation dates, and test results in your CMMS. A structured spare parts inventory that includes at least two units of the 51195199-010 per active DCS segment — alongside spare tap units, termination resistors, and NIM modules — is the industry-standard approach to achieving sub-four-hour MTTR for Data Highway faults.

Strategic Replacement Solutions

The 51195199-010 is the direct OEM replacement for any 10-meter coaxial drop cable position in a TDC 3000 or Experion PKS Data Highway segment. Because Honeywell has maintained backward compatibility across TDC 3000 generations, this cable assembly installs without modification into systems originally commissioned in the 1980s through to current Experion PKS deployments — making it the lowest-risk replacement option for sites that cannot afford compatibility uncertainty during a live maintenance window.

For sites managing the transition from TDC 3000 to Experion PKS, the 51195199-010 remains fully compatible with the hybrid LCN/FTE architectures that characterize mid-migration plants. This means maintenance teams do not need to maintain separate cable inventories for legacy and upgraded nodes — a single stock of 51195199-010 assemblies covers both environments, simplifying procurement and reducing carrying costs.

Compared to field-fabricated coaxial assemblies, the factory-terminated 51195199-010 eliminates the variability introduced by on-site crimping and connector installation. In high-stakes DCS environments, connector quality is the primary determinant of long-term cable reliability. Factory termination ensures consistent impedance matching, proper shield continuity, and mechanical retention — all of which directly translate to reduced communication error rates and longer mean time between failures.

For maintenance planners, stocking the 51195199-010 as a standard line item — rather than sourcing on demand after a fault — reduces average repair time from days to hours. Given that Data Highway faults typically trigger a full segment outage affecting multiple controllers and operator stations, the cost of a single unplanned event far exceeds the carrying cost of a small cable inventory. TOPNLMS maintains ready stock of the 51195199-010 with same-day dispatch capability for urgent requirements.

Support FAQ

Q1: What is the warranty coverage for the Honeywell 51195199-010?
Every 51195199-010 shipped by TOPNLMS carries a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and verified functional failures under normal operating conditions. Each unit is inspected and tested for continuity and shielding integrity prior to dispatch.

Q2: How do I verify compatibility with my existing TDC 3000 or Experion PKS system before installation?
The 51195199-010 is the Honeywell OEM part number for the 10-meter coaxial drop cable position in TDC 3000 LCN and Experion PKS Data Highway segments. Compatibility can be confirmed by cross-referencing the part number against your system’s cable schedule or the Honeywell TDC 3000 Data Highway Installation manual. If you require pre-purchase compatibility verification, contact our technical team with your system revision and node type.

Q3: What is the recommended inventory quantity for a plant operating multiple TDC 3000 segments?
Industry best practice for critical DCS spare parts recommends holding a minimum of two drop cable assemblies per active Data Highway segment, plus one additional unit per five nodes as a general buffer. For plants with more than three segments or operating in remote locations with extended lead times, a higher buffer is advisable. TOPNLMS can assist with bulk procurement planning and volume pricing.

Q4: Can the 51195199-010 be used as a direct field replacement without system reconfiguration?
Yes. The 51195199-010 is a plug-and-play replacement for any failed or degraded 10-meter drop cable in a compatible Honeywell DCS segment. No software reconfiguration, controller restart, or system-level parameter change is required for a like-for-like cable swap. Standard commissioning practice after replacement includes a segment communication test and BER verification using the Honeywell Data Highway diagnostic tools.
