Honeywell 51109806-002 Ruggedized Coaxial Cable for Harsh Environments

Product Overview

Honeywell 51109806-002 Ruggedized Coaxial Cable for Harsh Environments

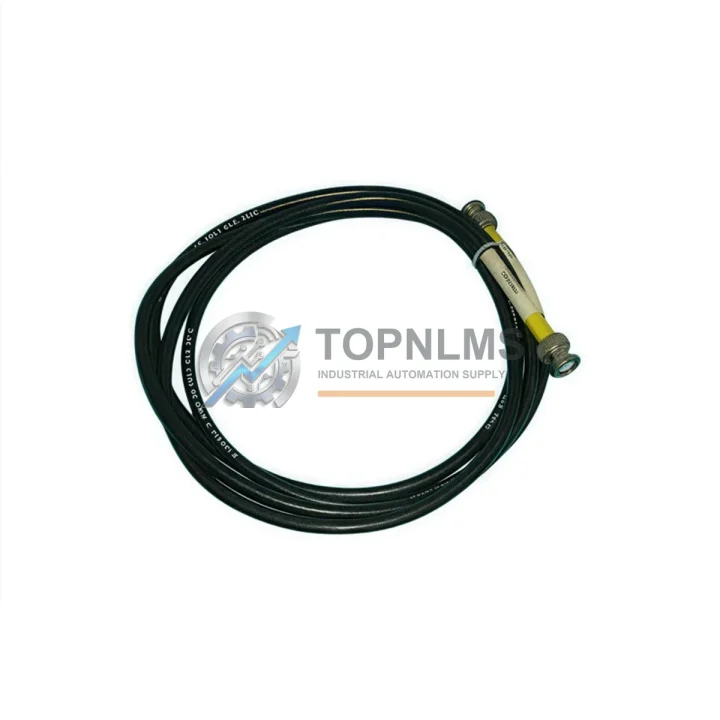

The Honeywell 51109806-002 is a ruggedized coaxial cable engineered for mission-critical signal transmission within the Honeywell TDC 3000 and Experion PKS Distributed Control System (DCS) architectures. Designed to maintain signal integrity under extreme industrial conditions — including high ambient temperatures, elevated humidity, mechanical vibration, airborne particulates, and intense electromagnetic interference — this cable is a foundational interconnect component for continuous-process industries where downtime is not an option.

In heavy industrial environments such as oil refineries, petrochemical complexes, power generation facilities, and metallurgical plants, coaxial signal cables are subjected to stresses that standard commercial-grade cables cannot withstand. The 51109806-002 addresses these demands with a shielded, low-loss construction that preserves signal fidelity across the full operating temperature range, resisting both capacitive coupling and radiated EMI from adjacent variable frequency drives, motor starters, and high-current bus bars commonly found in the same control cabinet or cable tray.

At TOPNLMS, every 51109806-002 unit is sourced through verified supply channels, individually inspected prior to dispatch, and shipped with full traceability documentation. A 12-month warranty is included as standard, covering manufacturing defects and functional failures under normal operating conditions.

Rugged Specifications Table

Comprehensive Protection Solutions

The 51109806-002 coaxial cable does not operate in isolation — it is an integral link in a broader Honeywell DCS signal chain. In a typical Experion PKS or TDC 3000 installation, this cable interconnects the Honeywell 51304485-150 Universal I/O Module with the 51309288-175 FTA (Field Termination Assembly), ensuring that analog and digital field signals reach the controller with zero degradation. When paired with the Honeywell 51196653-100 Power Supply Module, the system maintains stable 24 VDC rail voltage even during grid fluctuations, protecting the entire signal path from noise introduced by power transients.

In cabinets where the Honeywell 51401288-100 C300 Controller Module manages process loops, the integrity of every coaxial interconnect directly affects loop stability and PID response accuracy. Similarly, in systems using the Honeywell 51202329-501 LLMUX Module for multiplexed thermocouple inputs, a degraded coaxial cable can introduce ground loops or cross-talk that corrupts temperature readings across multiple channels simultaneously — a risk that the 51109806-002’s shielded construction is specifically designed to eliminate.

For installations that integrate Profibus DP or HART communication alongside the DCS backbone, the coaxial cable’s EMI rejection capability is equally critical. Devices such as the Honeywell 51304516-150 HART Multiplexer and 51309276-175 Analog Input FTA rely on clean signal paths to maintain HART communication integrity at 1200 baud over long cable runs in electrically noisy environments. In safety-instrumented systems, where the Honeywell FSC (Fail-Safe Controller) Safety I/O Modules must meet SIL 2 or SIL 3 requirements, coaxial cable quality is a compliance-relevant parameter — not merely a performance consideration.

Control cabinet integrators working with Honeywell 51198685-100 Redundancy Modules and 51309289-175 Digital Output FTAs will find the 51109806-002 a direct, specification-matched replacement that eliminates the need for field re-termination or adapter hardware, reducing maintenance downtime to the minimum possible interval.

Application in Critical Infrastructure

The Honeywell 51109806-002 coaxial cable is deployed across the most demanding segments of global industrial infrastructure. In upstream oil and gas operations — offshore platforms, onshore wellhead clusters, and gas compression stations — DCS signal cables must withstand salt-laden humid air, hydrocarbon vapor exposure, and continuous mechanical vibration from rotating equipment. The 51109806-002’s robust shielding and sealed construction make it a preferred interconnect in these Zone 1 and Zone 2 classified areas.

In thermal and hydroelectric power generation, where Experion PKS systems manage turbine control, boiler drum level, and generator excitation loops, signal cable reliability is directly linked to grid stability. A single failed coaxial interconnect can trigger a spurious trip, causing unplanned outages that cost operators tens of thousands of dollars per hour. Stocking verified replacement cables such as the 51109806-002 is a standard risk-mitigation practice for plant reliability engineers.

In municipal water treatment and wastewater management facilities, TDC 3000 and Experion PKS systems control dosing pumps, aeration blowers, and clarifier drives in environments characterized by high humidity, chlorine vapor, and biological aerosols. The cable’s resistance to chemical vapor permeation ensures long service life without insulation degradation. Metallurgical and steel-making plants present perhaps the harshest conditions of all — radiated heat from furnaces, heavy electromagnetic interference from arc furnaces and induction heaters, and pervasive metallic dust. In these environments, the 51109806-002’s multi-layer EMI shield is not optional; it is the difference between reliable process control and chronic signal faults.

Mining operations — both surface and underground — rely on DCS platforms for conveyor control, crusher management, and ventilation systems. Cable runs in these environments can exceed several hundred meters, making low-loss coaxial construction and high shield coverage essential for maintaining signal-to-noise ratios within DCS specification limits.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the Honeywell 51109806-002?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the unit fails to perform to Honeywell’s published specifications within the warranty period, TOPNLMS will provide a replacement or full refund. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling after delivery.

Q2: How is each unit tested before shipment?
Every 51109806-002 unit undergoes pre-shipment inspection covering visual integrity, connector condition, shield continuity, and where applicable, electrical performance verification. Units that do not pass inspection are quarantined and not dispatched. A test report or inspection certificate can be provided upon request for quality-critical procurement processes.

Q3: Is the 51109806-002 compatible with both TDC 3000 and Experion PKS platforms?
Yes. The 51109806-002 is a Honeywell-specified coaxial cable used across the TDC 3000 legacy platform and the Experion PKS / Experion LX migration architecture. It is dimensionally and electrically compatible with all standard Honeywell coaxial termination points in these systems. If you require confirmation for a specific cabinet configuration or FTA pairing, contact our technical team before ordering.

Q4: Can TOPNLMS support long-term or repeat supply of this part?
Yes. TOPNLMS maintains ongoing inventory of Honeywell TDC 3000 and Experion PKS spare parts, including the 51109806-002, to support planned maintenance schedules, emergency replacements, and long-term service contracts. We can provide volume pricing, reserved stock agreements, and scheduled delivery programs for facilities that require guaranteed availability. Contact us to discuss your site’s specific spare-parts strategy.
