Honeywell 38001704-100 Upgrade Solution for TDC 3000

Product Overview

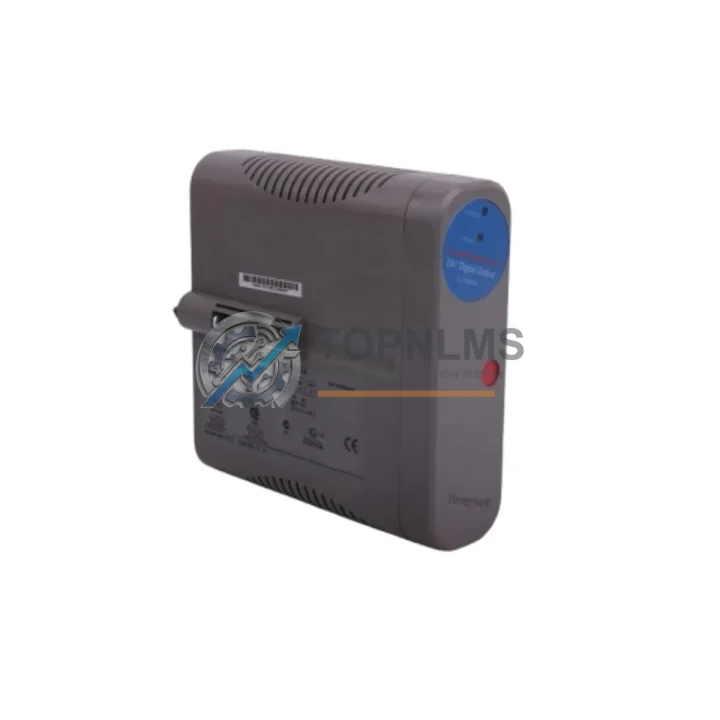

Honeywell 38001704-100 Upgrade Solution for TDC 3000: Smooth Migration, Zero Compromise

When a legacy Honeywell TDC 3000 or PlantScape distributed control system reaches end-of-life or a critical analog input module fails, every hour of unplanned downtime translates directly into production loss and safety risk. The Honeywell 38001704-100 Analog Input Module is a proven, in-stock replacement that allows plant engineers and procurement teams to restore full DCS functionality without redesigning the control architecture, re-engineering the wiring cabinet, or rewriting the application program.

The 38001704-100 is a multi-channel analog input module designed for the Honeywell TDC 3000 platform — one of the most widely deployed DCS architectures in refining, petrochemical, power generation, and continuous process industries. It accepts standard 4–20 mA process signals from field transmitters and converts them to digital values for the High-Performance Process Manager (HPM) or the Process Manager (PM) controller. The module slots directly into the existing TDC 3000 I/O chassis without mechanical modification, preserving the original wiring termination and field junction box layout.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC 3000 migration or emergency replacement rarely involves a single module in isolation. In most plant scenarios, the 38001704-100 Analog Input Module works in concert with a broader set of Honeywell DCS components that must remain operationally synchronized. During a planned upgrade or an unplanned failure event, procurement teams frequently source the Honeywell 51304485-100 Analog Output Module alongside the analog input card to maintain balanced I/O capacity within the same HPM chassis. The Honeywell 51401469-100 Power Supply Module is another common co-replacement item, as aging power supplies in TDC 3000 cabinets often degrade in parallel with I/O cards after years of continuous operation.

For sites running the Universal Control Network, the Honeywell 51190947-100 UCN Interface Module ensures that the backplane communication path remains intact when multiple cards are swapped during a maintenance window. Where field signal conditioning is required — particularly for thermocouple or RTD inputs that feed into the analog input subsystem — the Honeywell 51304453-100 Analog Input Termination Assembly provides the correct signal interface without altering the existing field wiring home-run cables.

Plants that are partially migrating from TDC 3000 to Experion PKS often retain legacy I/O racks while upgrading the controller layer. In these hybrid architectures, the Honeywell C300 Controller Module communicates with legacy I/O through the Honeywell IOLIM (I/O Link Interface Module), allowing the 38001704-100 to remain in service during a phased migration. This approach eliminates the need for a full cutover shutdown and dramatically reduces the capital expenditure of the modernization project.

For sites where the TDC 3000 Local Control Network (LCN) node hardware is also aging, the Honeywell 51401584-100 LCN Interface Card is a frequently requested companion part. Additionally, the Honeywell 51198947-100 History Module and associated data highway components are often refreshed at the same time as I/O cards to ensure the historian and alarm management layers remain reliable. All of these components are available through TOPNLMS with the same in-stock availability, pre-shipment testing, and 12-month warranty coverage as the 38001704-100.

Application in Critical Infrastructure

The Honeywell 38001704-100 is deployed across some of the most demanding continuous-process environments in the world. In petroleum refining, it monitors critical process variables — crude feed temperature, column pressure differentials, and reactor inlet flows — feeding real-time data to the HPM controller that governs distillation unit safety interlocks. A failed analog input card in this context can trigger a forced unit shutdown; having a verified replacement on the shelf is a non-negotiable element of spare parts strategy.

In natural gas processing plants, the module handles analog signals from pressure transmitters and flow meters distributed across compressor stations and dehydration units. The TDC 3000 platform’s proven reliability in these environments means that operators prefer to maintain the existing architecture rather than undertake a full DCS migration, making genuine replacement modules like the 38001704-100 essential long-term procurement items.

Power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — rely on TDC 3000 systems for boiler management, turbine control, and balance-of-plant automation. The analog input modules in these systems monitor steam temperature, feedwater flow, and combustion air parameters. Replacement cycles in power plants are typically planned during scheduled outages, and procurement lead times are critical; TOPNLMS maintains ready stock to support both planned maintenance and emergency breakdown scenarios.

Water treatment and wastewater facilities operating Honeywell PlantScape systems — the successor platform to TDC 3000 — also benefit from the 38001704-100’s cross-compatibility. Chemical dosing control, filtration pressure monitoring, and effluent flow measurement all depend on reliable analog input performance. In metallurgical and mining operations, where the module may be installed in remote or harsh-environment control rooms, the card’s robust design and backplane-powered architecture reduce the risk of field-level power supply failures.

Retrofit Guidance FAQ

Q1: Can the 38001704-100 replace my existing TDC 3000 analog input card without any wiring changes?
Yes. The 38001704-100 uses the same card-edge connector and termination assembly interface as the original TDC 3000 analog input modules. Field wiring connected to the MUX or termination panel does not need to be disturbed. Simply power down the chassis slot (or use hot-swap procedures if your HPM supports it), extract the failed card, insert the 38001704-100, and restore power. The HPM controller will recognize the module automatically during its next scan cycle.

Q2: Is the 38001704-100 compatible with both the TDC 3000 HPM and the older Process Manager (PM) controller?
The 38001704-100 is designed for the TDC 3000 I/O subsystem and is compatible with HPM-based configurations. Compatibility with older PM or AM (Application Module) chassis depends on the specific chassis revision and backplane version at your site. TOPNLMS recommends providing your chassis part number and firmware revision when placing an order so our technical team can confirm fit before shipment.

Q3: What testing is performed before shipment, and what does the 12-month warranty cover?
Every 38001704-100 unit shipped by TOPNLMS undergoes functional verification on a live TDC 3000 test bench, including channel-by-channel analog input accuracy checks, backplane communication handshake verification, and visual inspection for component condition. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will provide a replacement or full refund — no lengthy RMA bureaucracy.

Q4: Can TOPNLMS support a phased migration from TDC 3000 to Experion PKS while keeping the 38001704-100 in service?
Yes. Many customers use the 38001704-100 as a bridge component during a phased Experion PKS migration. By retaining the existing TDC 3000 I/O racks and connecting them to the new C300 controller via the IOLIM interface, the analog input modules remain fully functional throughout the migration. TOPNLMS can supply both the legacy I/O modules and the Experion PKS migration components to support a single-vendor procurement strategy for the entire project.

Warranty Assurance

TOPNLMS provides a 12-month warranty on every Honeywell 38001704-100 unit from the date of shipment. This warranty is backed by pre-shipment functional testing on a live TDC 3000 test platform, ensuring that every module leaving our facility has been verified for analog input accuracy, backplane communication integrity, and physical condition.

Our after-sales response commitment is straightforward: if a unit fails within the warranty period due to a manufacturing defect or functional fault, we will ship a replacement unit within 48 hours of fault confirmation — no extended waiting periods. For customers managing critical infrastructure with zero tolerance for downtime, TOPNLMS also offers priority stock reservation for repeat procurement programs, ensuring that your approved spare parts list is always covered.

All units are shipped with full traceability documentation, including test records and origin certification. Export compliance is handled in accordance with applicable trade regulations, and TOPNLMS has established logistics partnerships to support fast delivery to refineries, power plants, and process facilities across Asia, the Middle East, Europe, and the Americas.

For pricing, availability confirmation, or technical compatibility questions, contact our industrial automation procurement team directly.
