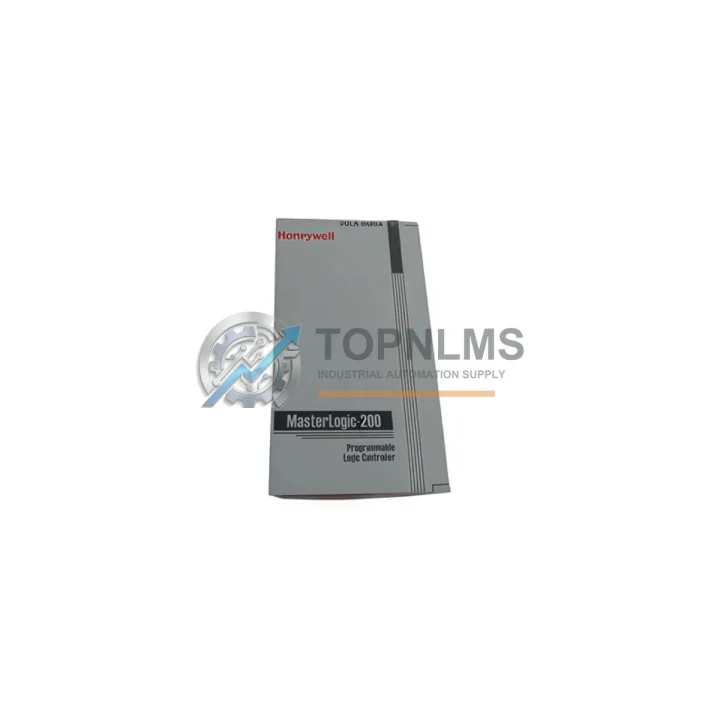

Honeywell 2MLR-DMMA Replacement for TDC 3000 Series

Product Overview

Honeywell 2MLR-DMMA Replacement for TDC 3000 Series: Seamless Chassis Slot Migration

The Honeywell 2MLR-DMMA is a blank slot filler module designed for the TDC 3000 distributed control system (DCS) chassis. As Honeywell’s TDC 3000 platform ages and facilities transition toward Experion PKS or hybrid modernization architectures, maintaining physical chassis integrity remains a critical operational requirement. Unused card slots in the TDC 3000 High-Performance Process Manager (HPPM) or Basic Process Manager (BPM) cabinets must be sealed with a properly rated blank filler to preserve EMI shielding, airflow balance, and backplane protection — all of which directly affect system uptime and regulatory compliance.

TOPNLMS stocks the 2MLR-DMMA as a verified drop-in replacement for facilities managing aging TDC 3000 infrastructure. Whether you are consolidating I/O cards, removing a retired Honeywell MC-TAIH12 analog input module, decommissioning a legacy MC-TDIY22 digital I/O card, or freeing up a slot previously occupied by a 2MLR-DMMB or 2MLR-DMMC variant, the 2MLR-DMMA provides the correct mechanical and electrical slot coverage to maintain chassis compliance.

Compatibility Comparison Table

Seamless Upgrade Solutions

In a typical TDC 3000 modernization or partial migration project, the 2MLR-DMMA is rarely the only component involved. When engineering teams begin consolidating I/O or retiring obsolete cards, the surrounding system components must be carefully managed to preserve control loop integrity and chassis stability.

For facilities decommissioning legacy analog input cards such as the Honeywell MC-TAIH12 or the MC-TAIH22, the vacated chassis slots must be immediately filled with a 2MLR-DMMA to prevent airflow bypass across the backplane. Similarly, when upgrading from older Honeywell MC-TDIY22 digital I/O modules to newer Experion-compatible I/O, the transition period often leaves multiple open slots that require temporary or permanent filler coverage.

Power distribution within the TDC 3000 cabinet is managed through dedicated Honeywell power supply modules (such as the MC-PWRJ1 series), and any reconfiguration of the card cage — including slot filler installation — should be coordinated with a review of the cabinet’s power budget and cooling airflow path. The 2MLR-DMMA’s passive design ensures it introduces no additional load to the power rail.

Communication infrastructure in TDC 3000 systems typically relies on the Local Control Network (LCN) and Universal Control Network (UCN). When migrating UCN-connected field devices or retiring a Honeywell NIM (Network Interface Module), the associated card slots freed in the HPPM chassis should be sealed with 2MLR-DMMA fillers to maintain the chassis’s certified operating environment. Likewise, if a Honeywell HPM (High-Performance Manager) is being partially depopulated as part of a phased Experion PKS migration, slot fillers are required at each vacated position.

For sites also managing Honeywell AM (Application Module) or HM (History Module) cards on the LCN node bus, the physical card cage discipline enforced by proper slot filler usage directly supports the thermal management requirements specified in Honeywell’s TDC 3000 installation guidelines. Procurement teams sourcing 2MLR-DMMA units alongside Honeywell 51304485-100 or similar legacy spare parts will find TOPNLMS able to consolidate multi-line orders for efficient site delivery.

Retrofit Guidance FAQ

Q: Does the 2MLR-DMMA require any wiring or termination work during installation?
No. The 2MLR-DMMA is a fully passive blank filler with no electrical connections to the backplane. Installation requires only sliding the module into the vacant card slot along the standard TDC 3000 card guides and securing the front panel latch. No wiring, no termination blocks, and no signal isolation is required.

Q: Will installing a 2MLR-DMMA affect my running control programs or PID loops?
No. Because the 2MLR-DMMA makes no active backplane connection, it has zero impact on running control strategies, PID loops, or LCN/UCN communications. It can be installed or removed during live system operation, subject to your site’s hot-swap and safety procedures.

Q: Is the 2MLR-DMMA compatible with all TDC 3000 chassis variants, including HPPM and BPM card cages?
Yes. The 2MLR-DMMA is designed to the standard TDC 3000 card form factor and is mechanically compatible with all standard TDC 3000 card cage variants, including HPPM, BPM, and AM chassis configurations. Always verify slot width and card guide spacing against your specific cabinet revision if working with non-standard or field-modified enclosures.

Q: Can I use the 2MLR-DMMA as a permanent replacement for a decommissioned I/O module?
Yes. The 2MLR-DMMA is suitable for both temporary (during migration) and permanent (post-decommission) slot coverage. It maintains chassis EMI integrity and airflow balance indefinitely and requires no maintenance.

Q: What is the lead time and shipping arrangement for the 2MLR-DMMA?
TOPNLMS ships from Xiamen, China. In-stock units are typically dispatched within 1–3 business days. International shipments are handled via DHL, FedEx, or UPS Express, with tracking provided upon dispatch. For urgent site requirements, please contact us directly at [email protected] or +86 18359293191 to confirm real-time stock availability and expedited shipping options.

Warranty Assurance

Every Honeywell 2MLR-DMMA unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a pre-shipment inspection covering physical condition, connector integrity, and label verification against the declared part number. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our support team with your order reference and a description of the issue, and we will arrange a replacement unit or issue a credit note based on your preference. Our average response time for warranty inquiries is within 1 business day.

For procurement teams managing multi-site TDC 3000 spare parts programs, TOPNLMS can provide batch inspection reports, packing lists, and commercial invoices formatted for customs clearance in major industrial markets. We support EXW, FOB Xiamen, and CIF terms depending on order volume and destination.

TOPNLMS is committed to supporting industrial facilities through every phase of DCS lifecycle management — from active production support to end-of-life migration — with reliable parts supply, transparent sourcing, and responsive after-sales service.
