Honeywell 2MLL-CH2B-CC Ruggedized CC-Link Interface Module

Product Overview

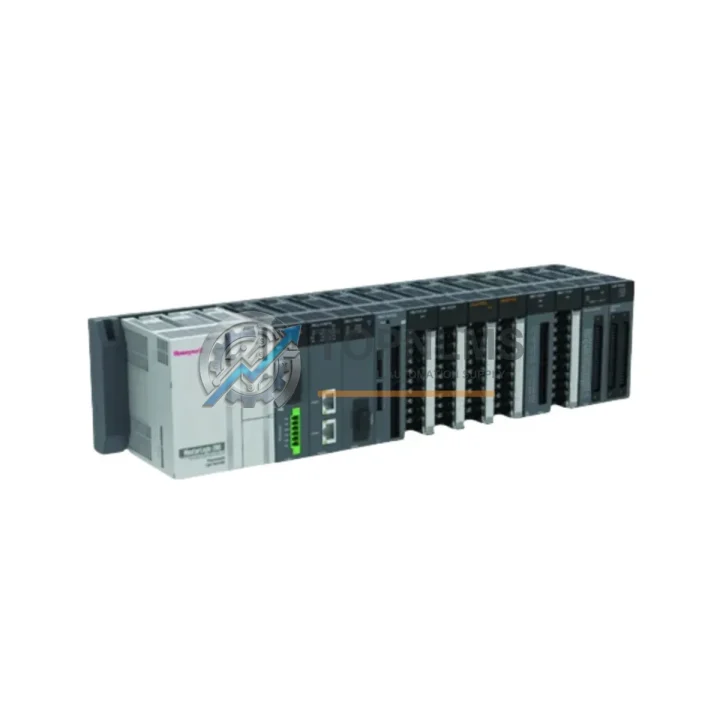

Honeywell 2MLL-CH2B-CC Ruggedized CC-Link Interface Module for Harsh Environments

The Honeywell 2MLL-CH2B-CC is a high-performance CC-Link fieldbus interface module engineered for the MasterLogic Series PLC platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature foundries, high-humidity coastal processing plants, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this module delivers uncompromising communication integrity where conventional hardware fails. Its ruggedized construction, wide operating temperature tolerance, and robust EMI shielding make it a trusted backbone component for mission-critical control architectures across global process industries.

As a CC-Link master or local station interface, the 2MLL-CH2B-CC enables seamless, high-speed cyclic data exchange between the Honeywell MasterLogic CPU and distributed field devices including remote I/O stations, variable frequency drives (VFDs), servo amplifiers, and intelligent field instruments. With a maximum CC-Link network speed of 10 Mbps and support for up to 64 remote stations, this module provides the bandwidth and scalability required for large-scale distributed control systems in continuous production environments.

Rugged Specifications Table

Comprehensive Protection Solutions

The 2MLL-CH2B-CC is rarely deployed in isolation. In a fully integrated Honeywell MasterLogic control cabinet, it operates alongside the ML-CPU300 central processing unit, which handles ladder logic execution and system diagnostics, and the 2MLL-PS24 power supply module, which provides stable 24 VDC backplane power even under fluctuating grid conditions. For analog signal acquisition from field transmitters, the 2MLL-AD08A analog input module and 2MLL-DA04A analog output module are commonly paired within the same rack, enabling closed-loop process control over the CC-Link network.

In applications requiring discrete I/O expansion across the CC-Link network, the 2MLL-DI32A 32-channel digital input module and 2MLL-DO32T 32-channel transistor output module serve as remote station endpoints, extending the control reach to field actuators, solenoid valves, and motor starters without additional wiring runs to the main cabinet. Where functional safety is mandated — such as in SIL 2-rated emergency shutdown systems — the Honeywell FSC (Fail-Safe Controller) safety module can be integrated into the same network architecture, with the 2MLL-CH2B-CC serving as the communication bridge between the safety PLC and the process control layer.

For installations involving variable-speed motor control, the 2MLL-CH2B-CC interfaces directly with CC-Link-compatible Mitsubishi FR-A800 series variable frequency drives and Yaskawa GA700 drives, enabling remote parameter monitoring and speed reference commands from the MasterLogic CPU. Terminal block modules such as the Honeywell 2MLL-TB32 terminal base simplify field wiring connections and reduce installation time in dense control panel environments. Communication redundancy can be achieved by pairing the 2MLL-CH2B-CC with a 2MLL-CH2B-CC redundant interface module in hot-standby configuration, ensuring zero-downtime failover in continuous production lines.

Application in Critical Infrastructure

In oil and gas upstream operations, the Honeywell 2MLL-CH2B-CC is deployed in wellhead control panels and compressor station automation systems, where it must withstand ambient temperatures exceeding 50°C, corrosive hydrogen sulfide atmospheres, and persistent mechanical vibration from rotating equipment. Its sealed connector design and conformal-coated PCB construction prevent moisture ingress and corrosion-induced signal degradation over multi-year service intervals without scheduled maintenance.

In coal-fired and gas-fired power generation plants, the module manages CC-Link communication between the main DCS control room and distributed boiler burner management systems (BMS), turbine governor panels, and auxiliary equipment control cabinets. The module’s deterministic communication cycle — critical for coordinated turbine load-following — ensures that control commands are delivered within the required scan time even under heavy electromagnetic interference from high-voltage switchgear and large transformer banks.

In municipal water treatment and wastewater facilities, the 2MLL-CH2B-CC connects SCADA-level supervisory systems to remote pump stations, chemical dosing skids, and UV disinfection units distributed across geographically dispersed sites. Its long-distance CC-Link cable support (up to 1,200 m at 156 kbps) eliminates the need for intermediate repeaters in many mid-scale installations, reducing both capital cost and potential failure points in the communication chain.

In metallurgical and steel production environments, where radiated heat from furnaces and induction heating equipment creates extreme thermal stress on control hardware, the module’s wide operating temperature range and thermally optimized backplane mounting ensure continuous operation through production cycles that cannot tolerate unplanned shutdowns. Replacement of a failed CC-Link interface module in a hot rolling mill can be completed in under 15 minutes using the MasterLogic hot-swap procedure, minimizing production loss during corrective maintenance events.
