Honeywell 16159/1/1 Ruggedized Digital Input Module

Product Overview

Honeywell 16159/1/1 Ruggedized Digital Input Module: Industrial Resilience for Harsh Environments

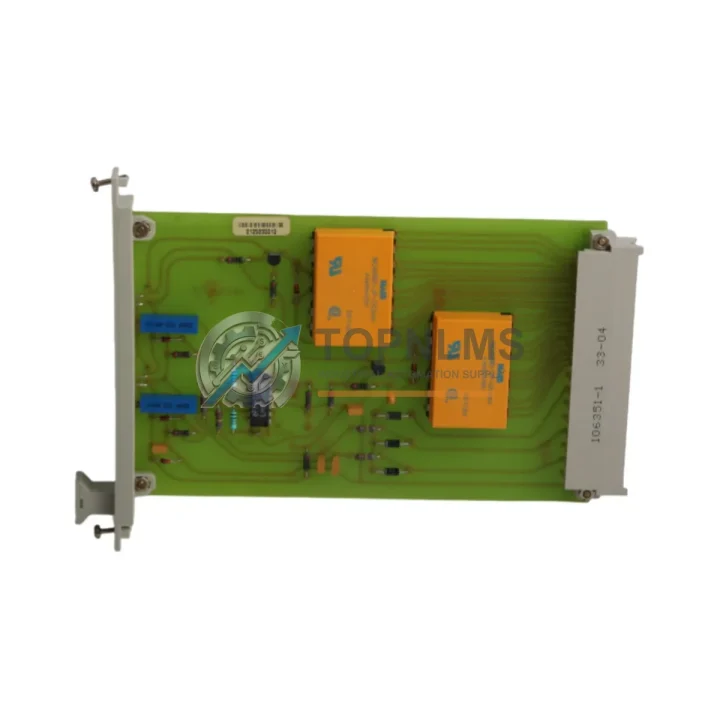

The Honeywell 16159/1/1 is a ruggedized Digital Input Module engineered for continuous, fault-tolerant operation within the Honeywell TDC 3000 and Experion PKS Distributed Control System (DCS) architectures. Designed to meet the uncompromising demands of heavy industry, this module delivers stable, high-integrity digital signal acquisition in environments characterized by extreme temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI). Where process uptime is non-negotiable, the 16159/1/1 is the field-proven choice for plant engineers and procurement specialists worldwide.

Built to Honeywell’s stringent quality standards, this I/O module integrates seamlessly into the TDC 3000 Local Control Network (LCN) and Experion PKS C200/C300 controller environments, providing deterministic digital input scanning with high noise immunity. Its robust backplane connector and conformal-coated PCB construction resist corrosion and condensation, making it equally at home in offshore platforms, chemical processing units, and high-dust mining operations.

Rugged Specifications Table

Comprehensive Protection Solutions

The Honeywell 16159/1/1 does not operate in isolation — it is a critical node within a broader, integrated control and safety architecture. In a typical Experion PKS or TDC 3000 installation, this Digital Input Module works in concert with the Honeywell 16156/1/1 Digital Output Module to form a complete discrete I/O subsystem, enabling bidirectional field device control and status monitoring from a single controller chassis.

For analog process variables such as temperature, pressure, and flow, the 16159/1/1 is commonly deployed alongside the Honeywell 16152/2/1 Analog Input Module and the Honeywell 16154/1/1 Analog Output Module, providing a unified mixed-signal I/O strategy within the same HPM (High-Performance Process Manager) or APM (Advanced Process Manager) rack. This co-location minimizes wiring complexity and reduces scan-cycle latency across the process loop.

Power integrity is maintained by the Honeywell 51204172-175 Power Supply Module, which delivers regulated, redundant DC power to the I/O bus, ensuring that even during utility fluctuations or brownout conditions, the 16159/1/1 continues to acquire field signals without interruption. For applications requiring functional safety compliance, the module is frequently paired with the Honeywell FSC (Fail-Safe Controller) Safety I/O modules, enabling SIL 2/3-rated emergency shutdown (ESD) and fire-and-gas (F&G) system integration.

Communication integrity across the plant network is supported by the Honeywell 51304516-100 Data Hiway Interface Module and compatible Honeywell UCN (Universal Control Network) coaxial tap assemblies, which maintain deterministic, high-speed data exchange between the I/O subsystem and the operator workstation. In facilities transitioning to modern Ethernet-based architectures, the 16159/1/1 can coexist with Honeywell Experion PKS ENET cards and Cisco IE series industrial managed switches, preserving legacy I/O investments while enabling phased modernization.

Terminal block assemblies — including the Honeywell 51196655-100 Field Termination Assembly (FTA) — provide the physical interface between the 16159/1/1 and field wiring, offering surge protection, loop-powered device support, and simplified maintenance access. For cabinet-level protection, Phoenix Contact TRABTECH surge protection devices and Weidmüller terminal blocks are commonly specified alongside this module to meet IEC 61000-4-5 transient immunity requirements in high-lightning-risk or high-inductive-load environments.

Application in Critical Infrastructure

The Honeywell 16159/1/1 has established a long service record across the most demanding sectors of global critical infrastructure:

Oil & Gas Upstream and Midstream: On offshore production platforms and onshore gas compression stations, this module monitors valve position feedback, pump run/stop status, and emergency shutdown (ESD) initiator signals. Its optical isolation and EMI hardening are essential in environments where high-voltage motor drives and variable frequency drives (VFDs) generate significant electrical noise on shared cable trays.

Petrochemical and Refining: In fluid catalytic cracking (FCC) units, hydrocracker reactors, and distillation columns, the 16159/1/1 provides reliable digital input acquisition for high-temperature process interlocks, flame detector status, and rotating equipment protection systems. Continuous operation at elevated ambient temperatures — common in fired heater areas — is supported by the module’s extended thermal rating.

Power Generation and Transmission: Coal-fired, gas turbine, and combined-cycle power plants rely on Honeywell TDC 3000 and Experion PKS systems for boiler management, turbine control, and balance-of-plant (BOP) automation. The 16159/1/1 acquires breaker status, relay contact feedback, and protection relay trip signals, feeding real-time data to the operator console for grid stability management.

Mining and Mineral Processing: In underground and open-pit mining operations, where vibration from blasting and heavy machinery is constant, the 16159/1/1’s robust mechanical design and conformal coating protect against particulate ingress and mechanical shock. It monitors conveyor belt status, crusher interlock signals, and ventilation fan run feedback in environments where module failure can halt production for hours.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use this module to monitor pump station status, valve position, and level switch inputs across geographically distributed SCADA/DCS networks. Its low power consumption and wide humidity tolerance make it suitable for outdoor pump houses and underground wet wells.

Metallurgy and Steel Production: In electric arc furnace (EAF) and basic oxygen furnace (BOF) steelmaking environments, extreme radiated heat, electromagnetic pulses from furnace transformers, and airborne metallic dust present severe challenges to control system hardware. The 16159/1/1’s shielded design and optical isolation provide the necessary protection for reliable operation in these conditions.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the Honeywell 16159/1/1?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit undergoes pre-shipment functional testing, including digital input channel verification, backplane communication check, and isolation resistance measurement. If a module fails within the warranty period due to a covered defect, TOPNLMS will provide a replacement unit or full refund at no additional cost. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How is each unit tested before shipment?
Every Honeywell 16159/1/1 dispatched from our facility undergoes a multi-stage quality inspection: visual inspection for physical damage, connector integrity check, powered functional test confirming all 16 digital input channels respond correctly, and firmware/revision verification against Honeywell’s published compatibility matrix. Units that do not pass all test stages are quarantined and not offered for sale. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 16159/1/1 compatible with both TDC 3000 and Experion PKS systems?
Yes. The Honeywell 16159/1/1 is designed for the TDC 3000 I/O bus architecture and is also compatible with Experion PKS systems that retain legacy TDC 3000 I/O infrastructure — a common configuration in brownfield plant upgrades. Compatibility with specific controller revisions (HPM, APM, C200, C300) should be confirmed against your system’s I/O link configuration and Honeywell’s compatibility documentation. TOPNLMS technical staff can assist with compatibility verification prior to purchase.

Q4: Can TOPNLMS support long-term or repeat supply of the 16159/1/1 for ongoing maintenance programs?
Yes. TOPNLMS maintains a dedicated inventory of Honeywell TDC 3000 and Experion PKS spare parts to support plant maintenance, turnaround, and emergency replacement programs. We can accommodate blanket purchase orders, scheduled delivery agreements, and priority stock reservations for critical spare parts. For facilities managing aging DCS infrastructure, we recommend establishing a standing spare parts agreement to ensure module availability when unplanned failures occur. Contact our team at [email protected] or +86 18359293191 to discuss your supply requirements.
