Honeywell 10310/3/1 Original Industrial Spare — System Stability & Ground Fault Protection

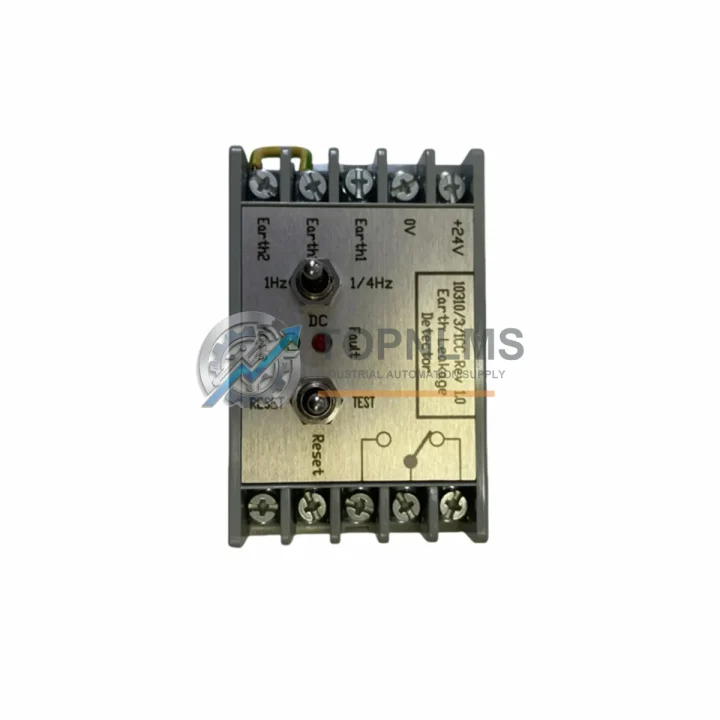

The Honeywell 10310/3/1 is an original 3-phase earth leakage detector and ground fault relay from the proven 10310 Series, engineered for continuous protection of industrial power distribution systems. In manufacturing environments where unplanned downtime translates directly into production loss, having a verified original spare of this relay on hand is a foundational element of any responsible preventive maintenance program. Whether you are managing a legacy control cabinet, upgrading an aging electrical panel, or building a strategic spare-parts inventory, the 10310/3/1 delivers the detection sensitivity, response speed, and installation compatibility required to keep three-phase systems running safely and reliably.

Ground fault events in industrial facilities are among the most disruptive and potentially dangerous electrical failures. A single undetected leakage current can escalate from a nuisance trip to equipment damage, personnel hazard, or extended production shutdown. The Honeywell 10310/3/1 continuously monitors all three phases for residual current imbalance, triggering a relay output the moment leakage exceeds the configured threshold — isolating the fault before it propagates to connected drives, motors, or PLC I/O circuits.

Critical Technical Specs

Preventive Maintenance Strategy

A ground fault relay does not operate in isolation — it is one node in a broader electrical protection architecture. When scheduling a cabinet inspection or planned shutdown to replace or test the Honeywell 10310/3/1, maintenance engineers should treat the event as an opportunity to audit the health of the entire protection chain. Neglecting adjacent components after replacing the relay itself is a common cause of repeat failures and unnecessary return visits.

Begin with the current transformer (CT) toroid that feeds the 10310/3/1 — a degraded or misaligned CT will produce erratic leakage readings and false trips even with a new relay installed. Inspect the CT for physical damage, verify its cable routing passes all three phase conductors symmetrically, and confirm the secondary wiring connections are tight and corrosion-free. At the same time, check the main circuit breaker or MCCB upstream of the monitored circuit: worn contacts or a breaker that is slow to trip under fault conditions undermines the protection the 10310/3/1 is designed to provide.

Within the same control cabinet, inspect the 24 V DC power supply module that energizes the relay coil and any associated PLC I/O cards. A power supply operating near its rated load or showing output ripple above specification is a latent failure waiting to surface during peak production. Pair this inspection with a review of the DIN rail terminal blocks and busbar connections on the distribution rail — loose terminals are a leading cause of intermittent ground faults that are difficult to reproduce during scheduled maintenance windows.

If the 10310/3/1 feeds a trip signal into a PLC digital input module (such as a Honeywell or third-party 24 V DC DI card), verify the input channel is reading correctly and that the wiring from the relay’s NO/NC contacts is intact. This is also the right moment to inspect any signal isolators or relay output modules in the signal path — these components age alongside the protection relay and are frequently overlooked during fault investigations. Where the ground fault relay output is wired through an intermediate relay or contactor module to trip a motor starter or drive, check the contactor’s coil resistance and contact wear; a contactor that fails to open on command negates the protection entirely.

For facilities running variable frequency drives (VFDs) on the protected circuits, note that VFDs inherently generate capacitive leakage current to ground through their EMC filters. If the 10310/3/1 is set to a sensitivity level that does not account for this background leakage, nuisance tripping will occur. Review the relay’s threshold setting against the drive manufacturer’s specified leakage current and adjust accordingly — or consider adding a line reactor upstream of the drive to reduce conducted emissions. Finally, ensure the HMI or SCADA system receiving the fault alarm from the PLC is correctly configured to log the event with a timestamp, enabling trend analysis that can predict future ground fault events before they cause unplanned downtime.

Building a small buffer stock of the 10310/3/1 alongside companion components — including spare CT toroids, DIN rail terminal blocks, 24 V DC power supply modules, intermediate relay modules, and fuse protection modules — reduces mean time to repair (MTTR) significantly and is a best practice for any facility operating multiple three-phase circuits under continuous production schedules.

Strategic Replacement Solutions

The Honeywell 10310/3/1 is a direct form-fit-function replacement for any existing 10310 Series earth leakage relay installation. Because it is an original Honeywell component — not a third-party clone or remanufactured unit — it preserves the original calibration tolerances, relay contact ratings, and DIN rail footprint without requiring panel modifications or re-wiring. This is particularly valuable in facilities where the control cabinet documentation is incomplete or where the original commissioning engineer is no longer available to validate a substitute specification.

For older installations where the 10310/3/1 was originally specified alongside now-discontinued Honeywell protection relays, sourcing an original spare from a verified distributor eliminates the risk of compatibility issues that arise when mixing generations of protection hardware. The relay’s standard SPDT output contact can interface directly with any PLC digital input, safety relay, or contactor coil rated for the contact’s switching capacity — making it straightforward to integrate into both legacy relay-logic panels and modern PLC-controlled MCC configurations.

Facilities managing a fleet of identical machines or production lines benefit from standardizing on the 10310/3/1 as the site-wide ground fault relay for all three-phase circuits in the same voltage class. Standardization reduces the number of unique spare part numbers held in the maintenance storeroom, simplifies technician training, and enables cross-machine cannibalization in emergency scenarios — a proven strategy for minimizing production impact during critical failures.

Each unit supplied by TOPNLMS is tested for relay coil continuity, contact switching function, and output signal integrity prior to dispatch. Units are shipped in anti-static, impact-resistant packaging with full traceability documentation. A 12-month warranty covers all manufacturing defects from the date of delivery, with direct technical support available via email and phone for installation and commissioning queries.
