Honeywell 10216/2/1 Ruggedized Safety Output Module for Harsh Environments

Product Overview

Honeywell 10216/2/1 Ruggedized Safety Output Module for Harsh Environments

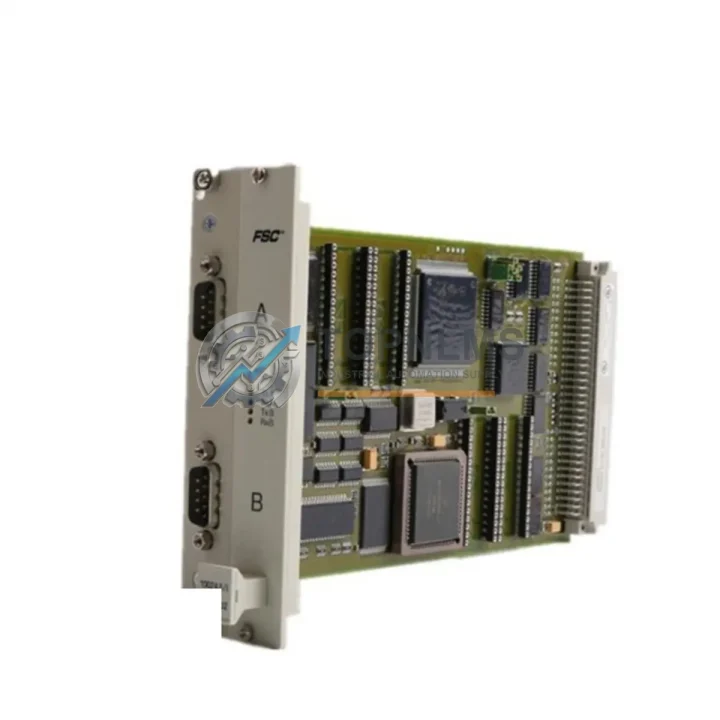

The Honeywell 10216/2/1 is a dual-channel digital output module with continuous line monitoring, engineered as a core component of the Honeywell Safety Manager system. Designed to operate reliably in the most demanding industrial environments — including high-temperature process plants, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this module delivers the fault-tolerant output control that safety-critical infrastructure demands.

In continuous production environments where unplanned downtime carries catastrophic operational and financial consequences, the 10216/2/1 provides the dual-channel redundancy and real-time line monitoring that safety engineers rely on. Its continuous line monitoring capability detects open-circuit and short-circuit faults on output wiring before they can propagate into a dangerous state, ensuring that field devices such as solenoid valves, emergency shutdown actuators, and safety relays receive verified, uninterrupted command signals at all times.

Built to IEC 61508 and IEC 61511 functional safety standards, the 10216/2/1 is SIL2-rated and integrates seamlessly within the Honeywell Safety Manager architecture. It operates alongside companion modules including the Honeywell 10216/1/1 single-channel digital output module, the 10215/2/1 dual-channel digital input module, and the 10211/2/1 analog input module, forming a cohesive safety instrumented system (SIS) capable of managing emergency shutdown (ESD), fire and gas detection (F&G), and burner management system (BMS) functions across the full plant lifecycle.

The module’s ruggedized design addresses the full spectrum of industrial environmental stressors. Its conformal-coated PCB resists moisture ingress and corrosive atmospheres found in offshore platforms and chemical processing plants. The wide operating temperature range accommodates both sub-zero cold-start conditions in northern refineries and the elevated ambient temperatures of steel mill control rooms. EMI/RFI shielding ensures signal integrity in environments with heavy variable-frequency drives (VFDs), large motor starters, and high-voltage switching equipment operating in close proximity to the control cabinet.

Rugged Specifications Table

Comprehensive Protection Solutions

The 10216/2/1 does not operate in isolation — it is one node in a broader safety architecture that must function cohesively under the most adverse field conditions. In a typical Safety Manager cabinet, the module works in concert with the Honeywell 10215/2/1 dual-channel digital input module, which reads field sensor states, and the Honeywell 10211/2/1 analog input module, which processes 4–20 mA signals from pressure transmitters, temperature sensors, and flow meters. Together, these I/O modules feed the Safety Manager’s central processing unit, which executes the safety logic and drives the 10216/2/1 outputs to actuate field devices.

On the power supply side, the Safety Manager system relies on redundant Honeywell SM power supply modules to ensure that no single power failure can compromise the safety function. The 10216/2/1’s output circuits are further protected by Honeywell safety relay modules and terminal modules that provide galvanic isolation between the control cabinet and field wiring, reducing the risk of fault propagation from field-side transients or ground faults.

For facilities that integrate the Safety Manager with a broader distributed control system (DCS), the Honeywell SM communication module enables Modbus RTU or HART protocol connectivity, allowing the safety system to exchange status and diagnostic data with the plant’s main DCS — such as a Honeywell Experion PKS or a third-party DCS — without compromising the safety layer’s independence. In applications where the control cabinet also houses Siemens SIMATIC S7-series PLCs or ABB AC500 safety controllers for non-safety process control, the 10216/2/1 maintains its dedicated safety function through strict hardware and software separation, as required by IEC 61511 clause 11.

Variable-frequency drives (VFDs) and large motor starters in adjacent panels are common sources of conducted and radiated EMI. The 10216/2/1’s shielded design, combined with proper cabinet grounding practices and the use of surge protection terminal blocks on field wiring entries, ensures that output signal integrity is maintained even in the presence of high-frequency switching noise from drives rated at hundreds of kilowatts.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities — including wellhead control panels, pipeline compressor stations, and LNG liquefaction trains — the 10216/2/1 drives the solenoid valves and actuators that execute emergency shutdown sequences. When a high-pressure exceedance or gas detection event triggers the Safety Manager’s ESD logic, the module’s dual-channel output ensures that the shutdown command reaches the field device through two independent paths, eliminating single-point-of-failure risk in the final element of the safety instrumented function (SIF).

In coal-fired and gas-fired power generation plants, the module is deployed in burner management systems (BMS) to control fuel shutoff valves and igniter circuits. The continuous line monitoring function is particularly valuable here: it provides real-time diagnostic feedback to the control room, confirming that output wiring to critical valves is intact during normal operation — not just at the moment of a safety demand. This supports the proof-test interval requirements of IEC 61511 and reduces the burden on maintenance teams conducting periodic functional safety tests.

In mining and mineral processing operations, where conveyor systems, crushers, and ball mills generate intense mechanical vibration and airborne dust, the 10216/2/1’s robust mechanical design and conformal coating protect the module’s internal circuitry from the particulate contamination and vibration fatigue that degrade standard industrial modules over time. Its long mean time between failures (MTBF) reduces the frequency of unplanned module replacements, supporting the continuous production targets that mining operations demand.

In water and wastewater treatment plants, the module controls pump shutdown and valve isolation functions in response to overflow, chemical dosing faults, or equipment failures. Its wide humidity tolerance makes it suitable for the damp, corrosive atmospheres typical of pump stations and chemical dosing rooms. In metallurgical and steel production facilities, where furnace control and cooling system safety are paramount, the 10216/2/1 provides the reliable output switching that prevents thermal runaway and protects both personnel and capital equipment.
