Honeywell 10024/H/F Replacement for TDC 3000 DCS

Product Overview

Honeywell 10024/H/F Replacement for TDC 3000 DCS: Seamless Migration & Compatibility Upgrade

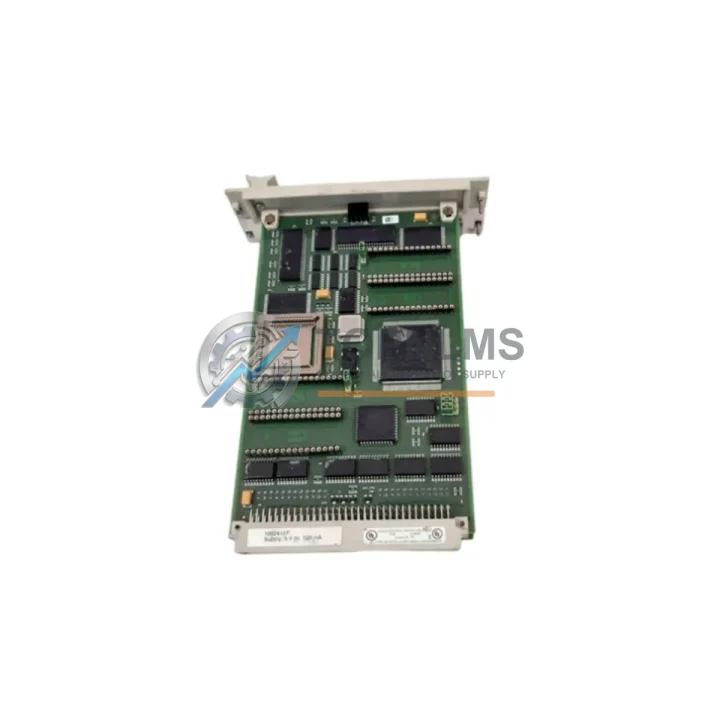

The Honeywell 10024/H/F Enhanced Communication Module is a critical component within the TDC 3000 Distributed Control System (DCS) architecture. As legacy TDC 3000 installations approach end-of-life or face discontinued spare-part availability, industrial facilities worldwide are actively seeking verified replacement and upgrade pathways that preserve existing wiring infrastructure, communication protocols, and control logic — without triggering a full system overhaul.

TOPNLMS supplies the 10024/H/F as a direct replacement module for facilities operating Honeywell TDC 3000 platforms. Our inventory is sourced from authorized channels, subjected to pre-shipment functional verification, and backed by a 12-month warranty. Whether your facility is executing a like-for-like spare replacement or planning a phased migration toward the Honeywell Experion PKS platform, the 10024/H/F serves as a stable bridge component during the transition period.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TDC 3000 communication module replacement rarely involves a single component in isolation. In practice, field engineers replacing the 10024/H/F will typically audit the surrounding system architecture to ensure the entire communication chain remains stable. During such migrations, several adjacent components frequently require simultaneous attention.

The Honeywell 10024/H/F communicates over the Local Control Network (LCN), which interconnects the History Module, the Application Module, and the Universal Station. If the LCN coaxial cable infrastructure or the Honeywell 10024/H/E LCN Interface Module shows degradation, replacing the communication module alone will not resolve intermittent network faults. Engineers should verify the integrity of the Honeywell 51401642-150 LCN Tap and associated coaxial termination hardware before commissioning the replacement 10024/H/F.

On the process I/O side, the TDC 3000 architecture relies on Honeywell PM I/O Link Modules and FTA (Field Termination Assembly) panels to route analog and digital signals from field instruments into the control network. When upgrading the communication module, it is advisable to inspect the Honeywell 51304485-100 Power Supply Module within the same card cage, as aging PSUs are a common root cause of communication instability that is often misattributed to the communication module itself.

For facilities planning a phased migration toward Honeywell Experion PKS, the 10024/H/F can serve as a temporary stabilization measure while the Honeywell C300 Controller and associated IOTA (I/O Termination Assembly) infrastructure are staged for installation. This approach minimizes production downtime by allowing the legacy TDC 3000 system to remain operational during the parallel commissioning phase.

In control cabinet environments where space is constrained, the Honeywell 10024/H/F retains the same physical footprint as its predecessors, eliminating the need for panel modifications. However, if the migration scope includes upgrading the Honeywell Universal Station (US) or the History Module (HM), additional card cage slots and backplane power budget calculations should be performed in advance. The Honeywell 51190685-100 Redundant Power Supply is commonly specified in such upgrade projects to ensure power continuity during the cutover window.

For communication protocol continuity, facilities that have already introduced Honeywell Experion HS nodes alongside legacy TDC 3000 equipment will find that the 10024/H/F maintains full LCN protocol compatibility, allowing the two system generations to coexist on the same network segment without gateway hardware. This is a significant advantage for brownfield upgrade projects where budget constraints prevent a full rip-and-replace approach.

Retrofit Guidance FAQ

Q: Can the 10024/H/F be installed without modifying existing field wiring?
A: Yes. The 10024/H/F uses the same backplane connector and card cage slot as earlier TDC 3000 communication module revisions. No field wiring changes are required for a like-for-like replacement. All signal routing is handled through the existing backplane and FTA panels.

Q: Is re-programming or re-configuration of the TDC 3000 system required after installation?
A: For a direct replacement of a failed or degraded module of the same revision family, no re-programming is required. The TDC 3000 system will recognize the replacement module automatically upon power-up. If upgrading from a significantly older revision, a configuration download from the Engineering Console may be required — this is a standard TDC 3000 commissioning procedure.

Q: What communication protocols does the 10024/H/F support?
A: The module operates on the Honeywell Local Control Network (LCN) and is compatible with the Universal Control Network (UCN) architecture. It does not natively support Ethernet/IP or PROFIBUS, but these protocols can be introduced via dedicated gateway modules if required by the migration scope.

Q: How much physical space does the module require in the control cabinet?
A: The 10024/H/F occupies a single standard TDC 3000 card cage slot. No additional panel space or DIN rail mounting is required. The module is powered entirely through the card cage backplane.

Q: What should be checked before replacing the communication module to avoid repeat failures?
A: Before installing the replacement 10024/H/F, verify the card cage power supply output voltages, inspect LCN coaxial cable terminations and tap integrity, and confirm that the backplane connectors are free of corrosion or mechanical damage. Addressing these root causes before module replacement significantly reduces the risk of repeat failures.

Q: Is the 10024/H/F compatible with Honeywell Experion PKS migration projects?
A: Yes. The 10024/H/F can coexist with Experion PKS nodes on the same LCN segment, making it suitable for phased migration projects where legacy TDC 3000 and modern Experion infrastructure operate in parallel during the transition period.

Warranty Assurance

Every Honeywell 10024/H/F Enhanced Communication Module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional verification process to confirm communication interface integrity, backplane connector condition, and module identification. Units that do not pass verification are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, subject to inspection of the returned module. Our after-sales response target is within 24 hours of a warranty claim submission. Replacement units are dispatched from our Xiamen warehouse, with international express shipping available to minimize the impact on your production schedule.

For B2B procurement teams, TOPNLMS can provide a Certificate of Conformance and pre-shipment inspection report upon request. Bulk orders and standing purchase agreements are supported, with lead time and pricing available upon inquiry.

We understand that unplanned downtime in a DCS-controlled process environment carries significant operational and financial consequences. Our procurement support team is available to assist with urgent replacement sourcing, cross-reference verification, and technical documentation requests.
