Honeywell 10006/2/1 Replacement Solution for TDC 3000

Product Overview

Honeywell 10006/2/1 Replacement Solution for TDC 3000: Smooth Transition & Legacy System Compatibility

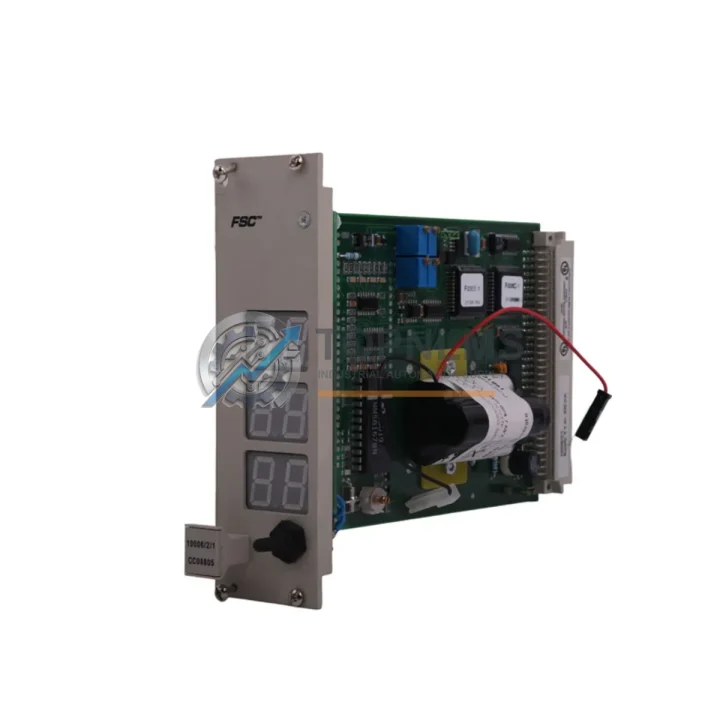

The Honeywell 10006/2/1 is a Data Backup Module (DBM) designed for the TDC 3000 Distributed Control System platform — one of the most widely deployed process-control architectures in refining, petrochemical, and power generation industries. As Honeywell has progressively phased out TDC 3000 hardware support, facilities running legacy configurations face increasing pressure to source verified replacement units or plan structured migration paths. TOPNLMS supplies tested, shelf-ready 10006/2/1 modules to bridge that gap, enabling plants to maintain operational continuity without committing to a full DCS overhaul.

The 10006/2/1 integrates directly into the TDC 3000 Universal Control Network (UCN) architecture, providing real-time clock synchronization and data backup functions critical to historian integrity and alarm management. When the original DBM fails or becomes unavailable, the downstream impact extends to the Local Control Network (LCN) nodes, operator consoles, and any AM (Application Module) or HPM (High-Performance Process Manager) units relying on synchronized time references. A verified replacement module eliminates cascading faults and restores system-wide clock coherence without requiring firmware changes or network reconfiguration.

Migration from a failed or end-of-life 10006/2/1 to a replacement unit follows a well-established procedure within the TDC 3000 chassis environment. The module seats into the standard TDC 3000 card cage using the original backplane connector, preserving existing wiring to the Data Hiway and power distribution bus. No rewiring of field termination assemblies (FTAs) or marshalling panels is required. Engineers familiar with the TDC 3000 Engineering Workstation (EWS) can complete module swap and clock re-synchronization within a planned maintenance window, typically without taking the UCN segment offline.

For sites undertaking a broader modernization — such as migrating from TDC 3000 to Experion PKS — the 10006/2/1 replacement serves as a stabilization measure during the transition period. While the Experion C300 Controller and EHPM (Experion High-Performance Process Manager) represent the forward migration path, many facilities maintain parallel TDC 3000 infrastructure during phased cutover. Keeping the DBM functional ensures that historian data, batch records, and alarm logs remain intact throughout the migration, satisfying regulatory and audit requirements.

Plants operating mixed environments — where TDC 3000 coexists with Experion HS (Historian Server) or third-party SCADA systems via OPC-DA or OPC-UA gateways — depend on accurate real-time clock data from the DBM to maintain timestamp consistency across platforms. A faulty or missing 10006/2/1 introduces timestamp drift that corrupts cross-system event correlation, complicating root-cause analysis and compliance reporting. Replacing the module with a verified unit restores clock authority to the TDC 3000 network segment immediately upon installation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete TDC 3000 maintenance or migration project rarely involves a single module. When replacing the 10006/2/1 DBM, engineers typically audit adjacent components in the same chassis and control network. The Honeywell 10006/1/1 Local Control Network Interface Module and 10006/3/1 Network Interface Module are common co-replacements, as they share the same card cage and are subject to identical aging conditions. Power distribution within the TDC 3000 cabinet is managed by the Honeywell 10006/P/1 Power Supply Module, which should be inspected and replaced if capacitor aging is suspected — a known failure mode in systems exceeding 15 years of continuous operation.

For sites migrating toward Experion PKS, the Honeywell C300 Process Controller and associated IOTA (I/O Termination Assembly) panels provide the forward-compatible I/O infrastructure. During the transition, Honeywell PMIO (Process Manager I/O) modules — including analog input cards such as the MC-PAIH03 and digital output cards such as the MC-PDOY22 — can be retained on existing FTAs, reducing rewiring costs. Communication continuity between legacy TDC 3000 segments and new Experion nodes is typically handled via the Honeywell UCN/FTE Gateway, which bridges the older Data Hiway protocol to Fault-Tolerant Ethernet without requiring changes to field device addressing.

For operator interface modernization running in parallel, the Honeywell Experion HS Operator Station can be introduced alongside existing TDC 3000 consoles, allowing operators to familiarize themselves with the new environment before full cutover. Signal conditioning between legacy 4–20 mA field loops and new I/O cards may require signal isolators or loop-powered barriers, particularly where intrinsic safety requirements apply in hazardous area classifications.

Retrofit Guidance FAQ

Q: Can the 10006/2/1 be replaced without shutting down the TDC 3000 system?
A: In most TDC 3000 configurations, the DBM supports hot-swap replacement. The UCN and Data Hiway remain operational during the swap. Clock re-synchronization occurs automatically once the new module initializes. Confirm with your site’s TDC 3000 system documentation before proceeding.

Q: Will existing wiring and FTA connections need to be modified?
A: No. The 10006/2/1 connects exclusively via the card cage backplane. Field wiring, marshalling panels, and FTAs are unaffected by the module replacement.

Q: Is the replacement module compatible with all TDC 3000 firmware versions?
A: The 10006/2/1 is compatible across the standard TDC 3000 firmware release range. No firmware update is required on the replacement unit or on adjacent LCN/UCN nodes.

Q: How does the real-time clock affect historian and alarm data?
A: The DBM’s RTC provides the authoritative time reference for the TDC 3000 network. A failed or missing RTC causes timestamp drift across AM, HPM, and historian records. Replacing the 10006/2/1 restores accurate timestamping immediately, ensuring data integrity for compliance and audit purposes.

Q: What is the lead time and shipping arrangement?
A: Units are stocked in Xiamen and ship within 1–3 business days of order confirmation. International express delivery (DHL / FedEx) is available to most destinations. Customs documentation, including commercial invoice and packing list, is provided with each shipment.

Warranty Assurance

Every Honeywell 10006/2/1 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including backplane interface continuity checks and real-time clock battery validation. If a module exhibits any defect within the warranty period, TOPNLMS will arrange priority replacement shipment at no additional cost to the buyer.

Our after-sales response time is within 24 hours on business days. For urgent plant situations, expedited handling is available — contact our team directly to arrange priority processing. All units are shipped with anti-static packaging, moisture barrier bags, and shock-absorbing foam inserts to ensure safe transit to your facility.

TOPNLMS maintains a standing inventory of TDC 3000 series components to support both emergency replacement and planned maintenance programs. Bulk procurement and long-term supply agreements are available for facilities managing multi-site TDC 3000 fleets.
