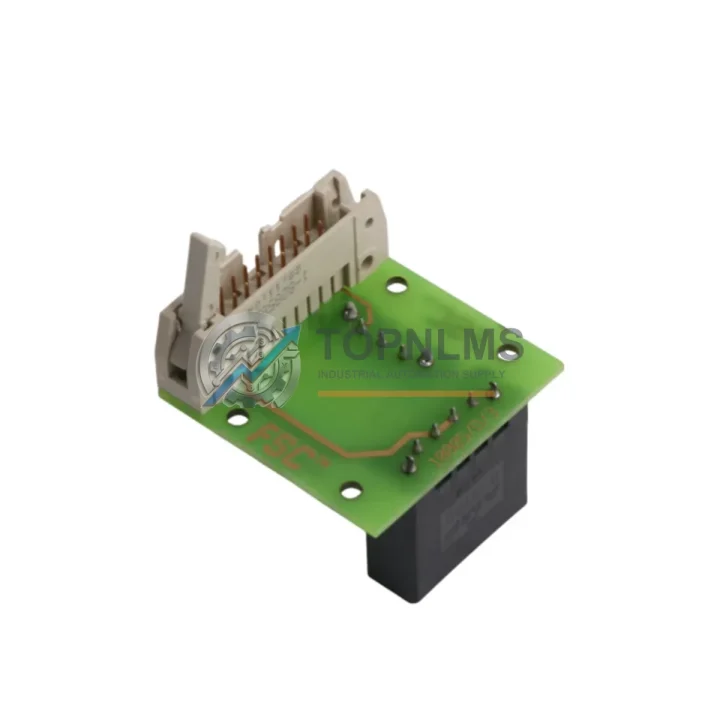

Honeywell 10005/0/3 Replacement for TDC 3000 HPM

Product Overview

Honeywell 10005/0/3 Replacement for TDC 3000 HPM: Seamless Transition & Legacy System Upgrade

The Honeywell 10005/0/3 is the I/O Link Controller module for the TDC 3000 High-Performance Manager (HPM) platform — one of the most widely deployed Distributed Control Systems in refining, petrochemical, and power generation facilities worldwide. As Honeywell progressively phases out TDC 3000 hardware support, plant engineers and procurement teams face increasing pressure to source verified replacement units that maintain full backward compatibility with existing HPM cabinets, wiring infrastructure, and control strategies.

TOPNLMS supplies tested, ready-to-ship 10005/0/3 I/O Link Controller modules to support both emergency breakdown replacements and planned migration projects. Every unit undergoes pre-shipment functional verification and ships with a 12-month warranty, giving your maintenance team the confidence to proceed without extended downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful HPM I/O Link Controller replacement rarely involves a single module in isolation. In practice, the 10005/0/3 operates within a tightly integrated subsystem. During migration or emergency replacement, engineers typically address several adjacent components simultaneously to ensure system integrity.

The HPM Power Supply Module (commonly the 10006/x/x series) must be verified for output stability before inserting a replacement I/O Link Controller — a degraded power rail is a frequent root cause of repeated controller faults. Similarly, the HPM Processor Module firmware version governs which I/O Link Controller revisions are recognized on the backplane; mismatched firmware between the processor and the 10005/0/3 can prevent the module from coming online.

Field wiring connects to the HPM through I/O Termination Assemblies (FTA/ITA panels), which remain in place during a controller swap. Confirming that the termination panel model matches the I/O module type — analog input, analog output, digital input, or digital output — is a mandatory pre-installation step. For plants running HART-enabled field instruments, the associated HART Multiplexer Interface modules must also be checked for compatibility with the replacement controller revision.

Communication upstream to the Local Control Network (LCN) passes through the HPM Network Interface Module. If the LCN segment is being upgraded concurrently — for example, migrating from coaxial LCN to Ethernet-based Fault-Tolerant Ethernet (FTE) — the network interface module selection must align with the new topology before the I/O Link Controller is commissioned.

For sites executing a broader migration from TDC 3000 to Experion PKS, the 10005/0/3 may serve as an interim solution while Series C or Series D I/O modules are phased in. In this scenario, the Experion C300 Controller and associated CHARM I/O modules represent the target architecture, but the existing HPM I/O infrastructure — including the 10005/0/3 — can remain operational during the transition period, reducing the scope of any single outage window.

Additional components commonly addressed during HPM maintenance windows include redundant I/O Link cables, HPM card file backplane connectors, and DIN-rail mounted signal isolators used to protect analog inputs from ground loops in legacy field wiring. Sourcing these alongside the 10005/0/3 from a single supplier simplifies logistics and reduces lead-time risk.

Retrofit Guidance FAQ

Q: Can I replace the 10005/0/3 without shutting down the entire HPM?
A: In a redundant HPM configuration with a standby I/O Link Controller active, the failed primary controller can typically be swapped without a process shutdown. In non-redundant configurations, the associated I/O points will go offline during the swap. Coordinate with your DCS engineer and follow Honeywell’s HPM maintenance procedures before proceeding.

Q: Does the replacement unit require firmware loading?
A: The 10005/0/3 firmware is stored on the module itself. In most cases, the HPM Processor will synchronize configuration to the replacement module automatically upon insertion. However, if the replacement unit carries a different firmware revision than the failed unit, a manual firmware update via the Honeywell Engineering Workstation may be required.

Q: Are the field wiring terminations affected by the swap?
A: No. Field wiring connects to the FTA/ITA termination panels, not directly to the 10005/0/3. The controller swap does not require any field wiring changes, which significantly reduces the risk of wiring errors during the maintenance window.

Q: What communication protocol does the 10005/0/3 use?
A: The module communicates over the Honeywell proprietary I/O Link Bus between the HPM card file and the I/O modules. This is distinct from the LCN (Local Control Network) that connects the HPM to the operator stations and historian. No third-party protocol conversion is required for a like-for-like replacement.

Q: How do I verify physical space compatibility in the control cabinet?
A: The 10005/0/3 occupies a standard HPM card file slot. Confirm the target slot is vacant or that the failed module has been removed. No additional mounting hardware is required. Ensure adequate airflow clearance per Honeywell’s HPM installation guidelines.

Warranty Assurance

Every Honeywell 10005/0/3 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Pre-shipment testing includes power-on verification, communication bus integrity check, and visual inspection for connector and board condition. Units that do not pass testing are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the fault assessment. Our technical team responds to warranty inquiries within one business day. Expedited replacement shipping is available for critical process applications where downtime cost is high.

Procurement teams can request a test report, photos, or video verification of the specific unit prior to shipment. We maintain stock in Xiamen, China, with export documentation prepared for standard customs clearance. Typical lead time for in-stock units is 3–7 business days to most international destinations.

For volume orders, blanket purchase agreements, or consignment stock arrangements, contact our sales team directly to discuss terms.
