HMS Anybus AB7065-C Replacement/Upgrade for Communicator

Product Overview

HMS Anybus AB7065-C Replacement/Upgrade Solution for Communicator Series: Smooth Migration from Legacy PROFIBUS to Modbus RTU Systems

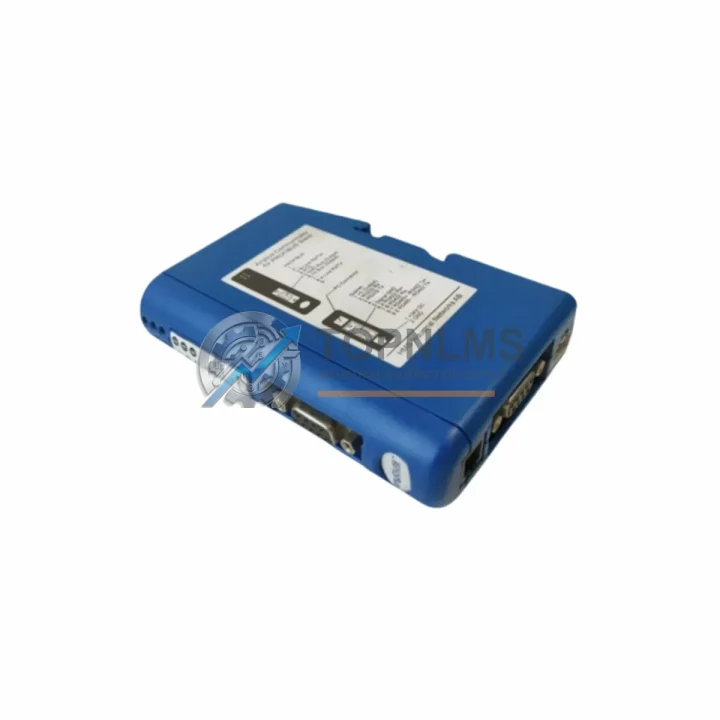

The HMS Anybus AB7065-C is a field-proven industrial protocol gateway that bridges PROFIBUS DP-V1 master/slave networks with Modbus RTU serial devices — a critical link in countless legacy automation architectures across manufacturing, process control, water treatment, and energy sectors. As the AB7065-C approaches end-of-availability in many regional supply chains, plant engineers and procurement teams face the challenge of sourcing verified replacements or planning a structured migration to a supported platform without triggering costly production shutdowns.

At TOPNLMS, we stock the AB7065-C and its direct-compatible successors, pre-tested and ready to ship. Whether you need a like-for-like drop-in replacement or a guided upgrade path to the current Anybus Communicator generation, our technical team supports your transition from first inquiry through on-site commissioning.

Compatibility Comparison Table

Seamless Upgrade Solutions: Migration Components for PROFIBUS–Modbus RTU Systems

A successful AB7065-C replacement rarely involves the gateway alone. In most retrofit projects, the gateway sits at the intersection of a Siemens S7-300 or S7-400 PLC acting as the PROFIBUS DP master, and a bank of Modbus RTU field devices — variable-frequency drives, smart meters, flow controllers, or third-party I/O blocks. When the AB7065-C is swapped, the surrounding system components must be verified for compatibility.

On the PROFIBUS side, the DP master interface card — such as a Siemens CP 342-5 or the onboard DP port of a CPU 315-2 DP — continues to operate without modification, since the replacement gateway presents an identical PROFIBUS slave profile. The GSD file is re-imported into STEP 7 or TIA Portal, the slave address is matched, and the DP network topology remains unchanged. If the installation uses a PROFIBUS repeater or RS-485 bus terminator to extend segment length, those components are unaffected.

On the Modbus RTU side, the existing RS-485 wiring to downstream devices — whether a Schneider Electric ATV312 drive, an energy meter, or a third-party remote I/O module — is reconnected to the same terminal block pinout. Baud rate, parity, stop bits, and Modbus slave addresses are re-entered via the ACM software, which reads and writes the same configuration file format used on the original AB7065-C. No PLC program changes are required if the I/O data mapping is preserved.

For plants running mixed protocol environments, the AB7065-C replacement integrates cleanly alongside other Anybus Communicator gateways in the same control cabinet — for example, an AB7007 handling PROFIBUS-to-DeviceNet conversion or an AB7072 bridging EtherNet/IP to Modbus RTU. All units share the same DIN rail mounting profile and 24 VDC power rail, simplifying cabinet layout and spare-parts inventory.

Where the legacy system includes a Siemens ET 200S or ET 200M distributed I/O rack connected via PROFIBUS, the gateway replacement does not affect those nodes — they remain on the same DP segment and continue to exchange data with the PLC independently. Similarly, if a Siemens OP 277 HMI or third-party panel PC is connected via MPI or PROFIBUS, its communication path is unaffected by the gateway swap.

For customers planning a broader migration from PROFIBUS to Industrial Ethernet, the AB7065-C can serve as a transitional device while the Modbus RTU field layer is gradually replaced with EtherNet/IP or PROFINET capable devices. In that scenario, an Anybus X-gateway AB7628 (PROFIBUS DP to PROFINET IO) may be introduced in parallel, allowing the PLC to be migrated to a Siemens S7-1500 or Allen-Bradley ControlLogix platform without disrupting the existing Modbus RTU field devices during the transition period.

Signal isolation is another consideration in aging installations. If the RS-485 segment shows noise or ground loop issues, a Phoenix Contact MINI MCR signal isolator or equivalent DIN rail isolator can be inserted between the AB7065-C serial port and the field cable without any configuration change to the gateway itself.

Retrofit Guidance FAQ

Q: Do I need to rewire the PROFIBUS connector when replacing the AB7065-C?
No. The replacement unit uses the same DB9 female PROFIBUS connector and the same pin assignment. The existing cable, termination resistors, and bus address switch settings are transferred directly. Only the PROFIBUS slave address needs to be confirmed and matched on the new unit.

Q: Will my existing PLC program need to be modified?
In most cases, no. The replacement gateway presents the same I/O data structure to the PROFIBUS master. If the GSD file version differs, re-import the new GSD in STEP 7 or TIA Portal, verify the I/O module configuration matches the original, and perform a hardware configuration download. The PLC application program (OB, FB, FC blocks) does not require modification if the data mapping is unchanged.

Q: How do I transfer the Modbus RTU configuration from the old unit to the new one?
Use the Anybus Configuration Manager (ACM) software. If you have the original .abcfg project file, open it and download it to the new gateway via the USB configuration port. If the original file is lost, the configuration can be reconstructed by reading the Modbus register map from the field device documentation and re-entering the polling commands in ACM. TOPNLMS can provide ACM setup guidance as part of after-sales support.

Q: Is the AB7065-C compatible with PROFIBUS DP-V0 masters, or only DP-V1?
The AB7065-C supports both DP-V0 and DP-V1 operation. It can function as a standard DP-V0 slave when connected to older masters that do not support acyclic DP-V1 services. No configuration change is required — the gateway automatically adapts to the master’s capability level.

Q: What is the physical installation space requirement?
The AB7065-C occupies approximately 45 mm of DIN rail width. The replacement unit has the same form factor. No additional cabinet space is required, and the existing cable management and ferrite clamps can be reused.

Q: Can the gateway operate in an ATEX Zone 2 environment?
The standard AB7065-C carries ATEX Zone 2 certification. Please confirm with TOPNLMS at the time of order whether the replacement unit in stock carries the same ATEX marking, as certification variants may differ by production batch.

Q: What commissioning steps are required after installation?
After physical installation and wiring: (1) Set the PROFIBUS slave address using the rotary switches. (2) Download the ACM configuration to the gateway. (3) Power on and verify the PROFIBUS RUN LED. (4) Trigger a Modbus RTU poll from the gateway and verify response from field devices. (5) Perform a PLC hardware configuration download if the GSD file was updated. Total commissioning time for an experienced engineer is typically under two hours for a direct replacement.

Warranty Assurance

Every HMS Anybus AB7065-C unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a functional verification test: PROFIBUS DP enumeration, Modbus RTU polling, power-on self-test, and LED status confirmation. Units that do not pass all test criteria are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our standard response time for warranty inquiries is one business day. Replacement units are dispatched from our Xiamen warehouse, with DHL Express, FedEx, or UPS options available for urgent requirements.

For customers requiring on-site support or remote commissioning assistance, our technical team is available via email and phone. We maintain configuration records for all units sold, enabling rapid re-configuration support if the original ACM project file is unavailable.

Procurement teams can request a formal quotation, proforma invoice, and certificate of conformity for each order. We support T/T bank transfer, PayPal, and trade finance arrangements for qualified buyers.
