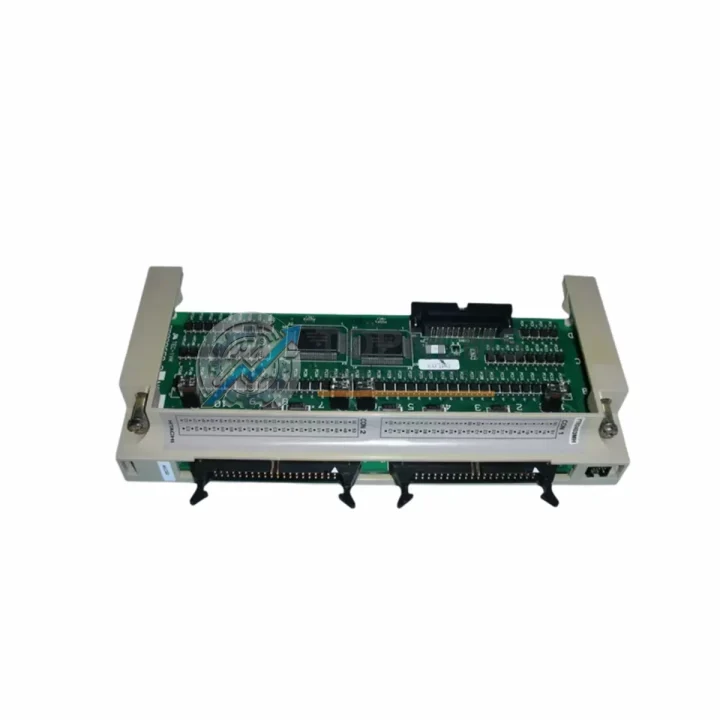

HITACHI YTR24D3MH Ruggedized Transistor Output Module

Product Overview

HITACHI YTR24D3MH Ruggedized Transistor Output Module: Industrial Resilience for Harsh Environments

The HITACHI YTR24D3MH is a 24VDC transistor output module engineered for the HITACHI H/EH Series programmable logic controller platform — one of the most trusted PLC architectures deployed across heavy industry, continuous process lines, and safety-critical infrastructure worldwide. Designed to deliver deterministic, high-speed digital output switching in environments where conventional electronics fail, the YTR24D3MH is the backbone of control cabinets operating under extreme thermal stress, persistent vibration, corrosive atmospheres, and electromagnetic interference.

Whether installed in a petrochemical refinery, a coal preparation plant, a municipal water treatment facility, or a steel rolling mill, this module maintains signal integrity and output reliability where uptime is non-negotiable. Its transistor-based output architecture eliminates mechanical wear, enabling millions of switching cycles without degradation — a critical advantage over relay-type alternatives in high-frequency actuation applications.

In demanding industrial environments — where ambient temperatures routinely exceed 45°C, where airborne particulate contaminates unprotected electronics, and where high-current motor switching generates persistent electromagnetic interference — the YTR24D3MH continues to perform within specification. Its optically isolated output channels decouple the PLC logic bus from field-side voltage transients, protecting the CPU and backplane from damage caused by inductive load switching, ground faults, and cable-induced surge events. This level of field-side protection is not a convenience feature; in continuous production environments, it is the difference between a controlled shutdown and an unplanned outage that cascades across an entire process line.

For maintenance engineers and procurement teams managing spare parts inventories for HITACHI H/EH Series installations, the YTR24D3MH represents a direct, pin-compatible replacement for aging output modules without requiring backplane reconfiguration, CPU firmware updates, or field wiring changes. This backward compatibility significantly reduces the engineering cost and downtime risk associated with module replacement during planned maintenance windows or emergency callouts.

Rugged Specifications Table

Comprehensive Protection Solutions

The YTR24D3MH does not operate in isolation — it is one node in a tightly integrated control architecture. In a typical HITACHI H/EH Series control cabinet, this output module works in concert with the HITACHI EH-CPU548 central processing unit, which handles ladder logic execution and coordinates I/O scanning across the backplane. Input signals are gathered by companion modules such as the HITACHI YTR16D1 DC input module, ensuring a matched signal chain from field sensor to actuator command with no impedance mismatch or protocol conversion overhead.

For power distribution within the cabinet, the HITACHI EH-PS24 24VDC power supply module provides stable, regulated voltage to the entire rack — a prerequisite for transistor output modules that demand clean DC power to maintain switching accuracy under variable load conditions. In applications where analog process variables such as temperature, pressure, or flow must be controlled alongside discrete outputs, the HITACHI EH-AO04 analog output module is commonly deployed on the same backplane, sharing the same CPU scan cycle and eliminating the latency introduced by inter-controller communication.

Communication between the HITACHI PLC rack and supervisory SCADA systems or distributed control system (DCS) hosts is typically handled through the HITACHI EH-ETH Ethernet communication module or the HITACHI EH-PROFIBUS fieldbus interface, both of which mount directly to the H/EH Series backplane and require no external gateway hardware. In safety-instrumented system (SIS) architectures, the YTR24D3MH output module is often paired with dedicated HITACHI safety relay modules and external terminal blocks to provide galvanic separation between the PLC output circuit and field-side actuators such as solenoid valves, motor starters, and pilot lights.

For installations requiring surge protection on output lines — particularly in outdoor substations or long cable runs in mining environments — surge protection devices are routinely installed in series with the YTR24D3MH output channels, preserving module integrity against transient overvoltages induced by lightning or motor switching events. In variable-frequency drive (VFD) applications, the YTR24D3MH provides the enable and fault-reset digital output signals to HITACHI SJ700 and HITACHI WJ200 series inverters, completing a fully integrated HITACHI drive-and-control ecosystem within a single control cabinet.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the HITACHI YTR24D3MH controls wellhead valve actuators, emergency shutdown (ESD) solenoids, and compressor start/stop sequences. Its transistor output architecture enables sub-millisecond response times that relay-based systems cannot match — a decisive advantage in ESD logic where actuation delay can escalate to a process safety event. The module’s optical isolation ensures that ground potential differences between the control room and the wellhead junction box do not introduce common-mode noise into the PLC logic bus.

In coal and hard-rock mining operations, the module drives conveyor belt motor contactors, ventilation fan starters, and dewatering pump controls across underground and surface installations. The solid-state output design eliminates contact bounce and arcing that would otherwise introduce timing errors in sequential motor start logic — a critical consideration in mines where ventilation fan sequencing is governed by safety regulations with defined response time requirements.

At thermal and hydroelectric power generation plants, the YTR24D3MH is deployed in turbine auxiliary control panels, where it manages cooling water valve sequencing, lube oil pump interlocks, and generator excitation control signals. Continuous 24/7 operation at elevated ambient temperatures — typical in turbine hall environments — is well within the module’s rated thermal envelope, and its vibration tolerance accommodates the mechanical resonance transmitted through turbine foundation structures.

In municipal and industrial water treatment plants, the module controls dosing pump enable signals, UV disinfection system interlocks, and filter backwash valve sequencing. Its solid-state output design eliminates contact bounce and arcing that would otherwise introduce timing errors in chemical dosing sequences where precise pulse-width control determines treatment efficacy and regulatory compliance.

In metallurgical and steel production facilities, the YTR24D3MH operates within rolling mill automation systems, managing cooling water spray valves, roller table drive enable signals, and furnace burner management outputs — all in the presence of intense electromagnetic fields generated by large induction furnaces and high-current bus bars. The module’s EMC-hardened design maintains output state integrity even when installed within meters of high-power induction heating equipment.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions as specified in the HITACHI H/EH Series technical documentation. If a module fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault symptom. Response time is within one business day.

Q2: How is each YTR24D3MH unit tested before shipment?
Every unit undergoes a pre-shipment functional inspection that includes power-on verification, output channel continuity testing across all 24 points, and visual inspection for physical damage or counterfeit indicators. Units that do not pass inspection are quarantined and not offered for sale. A test report is available upon request for customers with incoming quality control requirements or IEC 61511 functional safety documentation obligations.

Q3: Is the YTR24D3MH compatible with both the HITACHI H Series and EH Series backplanes?
Yes. The YTR24D3MH is designed for the HITACHI H/EH Series PLC platform and is compatible with standard H Series and EH Series backplane slots. Customers migrating from older H Series installations to EH Series hardware can retain existing YTR24D3MH modules without modification, protecting their capital investment in field wiring and I/O infrastructure. No CPU firmware update or I/O address remapping is required for direct module substitution.

Q4: Can TOPNLMS support long-term or repeat procurement of the YTR24D3MH?
Yes. TOPNLMS maintains dedicated stock of HITACHI H/EH Series modules to support ongoing maintenance, planned shutdowns, and emergency spare parts requirements. Customers operating continuous production lines — where unplanned downtime carries significant financial consequences — are encouraged to discuss standing purchase agreements or consignment stock arrangements directly with our technical sales team at [email protected] or +86 18359293191.
