HITACHI XDC24DMH Replacement/Upgrade for EH-150

Product Overview

HITACHI XDC24DMH Replacement/Upgrade Solution for EH-150: Smooth Migration from Legacy Systems

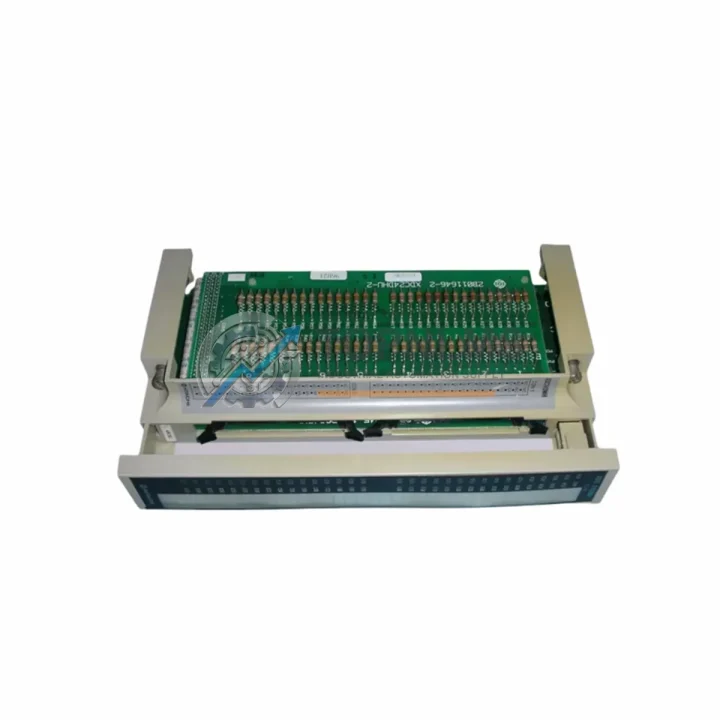

The HITACHI XDC24DMH is a 24-point digital I/O module designed for the HITACHI EH-150 Series PLC platform. As industrial facilities face increasing pressure to modernize aging control infrastructure, the XDC24DMH serves as both a direct replacement for failed or end-of-life units and a key component in structured upgrade projects migrating from earlier HITACHI H-series or EH-series controllers. Whether your facility is replacing a single failed module or executing a full control cabinet retrofit, the XDC24DMH delivers the wiring compatibility, communication protocol alignment, and physical form factor required for a seamless transition with minimal downtime.

Many plants operating legacy HITACHI H-200 or H-700 series PLCs are now transitioning to the EH-150 platform to take advantage of improved scan times, expanded I/O capacity, and better network integration. The XDC24DMH slots directly into the EH-150 base rack without mechanical modification, preserving existing field wiring terminations and reducing re-engineering costs. For sites running mixed I/O architectures, the module integrates cleanly alongside the HITACHI XAI04MH analog input module and XAO02MH analog output module within the same rack, allowing engineers to build hybrid digital-analog I/O configurations without introducing additional communication overhead.

From a communication protocol perspective, the XDC24DMH operates natively within the EH-150 backplane bus, eliminating the need for protocol converters or gateway devices when replacing older discrete I/O modules. Sites that have already deployed HITACHI EH-ETH Ethernet communication modules or EH-PROFIBUS fieldbus adapters in their EH-150 racks will find that adding or replacing XDC24DMH modules requires no changes to the network configuration or PLC program addressing, provided the slot assignment is maintained. This is a critical advantage during live plant upgrades where minimizing program re-validation time is a priority.

For control cabinet space planning, the XDC24DMH occupies a single slot in the EH-150 base unit or expansion rack, including the HITACHI EH-BS3 and EH-BS8 base units. Its compact profile and standard DIN-rail-compatible rack mounting mean that replacement projects in space-constrained panels can proceed without cabinet redesign. Power supply requirements are met by the existing HITACHI EH-PS2 or EH-PS3 power supply modules already installed in most EH-150 configurations, with no additional power budget calculation required for a like-for-like module swap.

During field commissioning, engineers replacing a failed XDC24DMH will find that the module’s I/O mapping is restored automatically upon insertion when the CPU retains its program and I/O configuration. For upgrade projects involving program migration from H-series to EH-150, the HITACHI LADDER EDITOR programming software supports direct import of legacy ladder logic, significantly reducing re-programming effort. Signal isolation between field devices and the PLC backplane is maintained through the module’s built-in optical isolation, protecting the controller from transient voltages common in industrial environments with variable-frequency drives, solenoid valves, and motor starters on the same panel.

Procurement teams evaluating the XDC24DMH as a replacement or upgrade component can confirm availability, lead time, and pricing directly through TOPNLMS. Units are inspected and function-tested prior to shipment, and all modules are supplied with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete EH-150 migration or XDC24DMH replacement project typically involves more than a single module swap. Depending on the scope of the retrofit, engineers commonly source the following components alongside the XDC24DMH to complete the upgrade without interruption:

The HITACHI EH-CPU448 CPU module provides the processing backbone for expanded EH-150 configurations, supporting larger program memory and faster scan cycles than earlier EH-150 CPU variants — a common upgrade target when the XDC24DMH is being added as part of an I/O expansion rather than a direct replacement. For analog signal integration, the HITACHI XAI04MH analog input module and XAO02MH analog output module are frequently installed in the same rack to handle temperature, pressure, and flow signals from field transmitters, complementing the XDC24DMH’s discrete I/O capacity.

Network connectivity upgrades often accompany I/O module replacements. The HITACHI EH-ETH Ethernet communication module enables SCADA and HMI integration over standard TCP/IP networks, while the HITACHI EH-PROFIBUS adapter supports legacy fieldbus architectures still present in many process plants. For facilities standardizing on Modbus RTU, the HITACHI EH-MODEM serial communication module provides RS-232/RS-485 connectivity without requiring a separate gateway device.

Power infrastructure is another consideration: the HITACHI EH-PS3 power supply module is the recommended unit for fully populated EH-150 racks, ensuring adequate current margin when multiple I/O modules including the XDC24DMH are installed simultaneously. Finally, for HMI integration, HITACHI’s EH-OB series operator panels connect directly to the EH-150 CPU via the dedicated HMI port, providing local visualization without additional communication hardware — a practical choice for retrofit projects where panel space and budget are constrained.

Retrofit Guidance FAQ

Q: Can I replace a failed XDC24DMH without modifying the PLC program?
A: Yes. If the replacement module is installed in the same rack slot and the CPU program is intact, the I/O mapping is restored automatically on power-up. No program changes are required for a like-for-like slot replacement.

Q: Is field wiring compatible when upgrading from an H-series system to EH-150?
A: Field wiring termination points differ between H-series and EH-150 racks. A wiring review is recommended. However, within the EH-150 platform, replacing one XDC24DMH with another requires no field wiring changes.

Q: Does the XDC24DMH support Profibus or Ethernet communication directly?
A: No. The XDC24DMH is a local I/O module that communicates via the EH-150 backplane bus. Network protocols such as PROFIBUS or Ethernet are handled by dedicated communication modules (EH-PROFIBUS, EH-ETH) installed in the same rack.

Q: What are the physical space requirements for installing the XDC24DMH?
A: The module occupies one slot in an EH-150 base unit (EH-BS3 or EH-BS8). No additional panel space beyond the standard rack slot is required. Cabinet depth and rail spacing follow standard EH-150 installation specifications.

Q: Can the XDC24DMH be used in an expansion rack configuration?
A: Yes. The module is compatible with EH-150 expansion racks connected to the main CPU via the EH-150 I/O link, allowing distributed I/O configurations across multiple cabinets or remote panels.

Q: How do I verify the module is functioning correctly after installation?
A: Use HITACHI LADDER EDITOR to monitor I/O status in real time. Each channel’s ON/OFF state is visible in the I/O monitor view. LED indicators on the module face also provide channel-level status during commissioning without requiring a connected programming device.

Warranty Assurance

All HITACHI XDC24DMH modules supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional inspection to verify I/O channel integrity, backplane connector condition, and LED indicator operation. Modules that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for customers experiencing production downtime. Our response target for warranty inquiries is one business day. Replacement units are dispatched from our Xiamen warehouse, with express shipping options available for urgent requirements.

For procurement teams requiring documentation, we can provide inspection reports, shipment records, and product origin confirmation upon request. Volume orders and blanket purchase agreements are supported for MRO and spare parts programs.

Contact our technical sales team to confirm current stock availability, lead time, and pricing before placing your order.
