HITACHI SJ300TM 3B295619-3 Replacement for SJ300 VFD: Smooth Migration, Zero Compromise

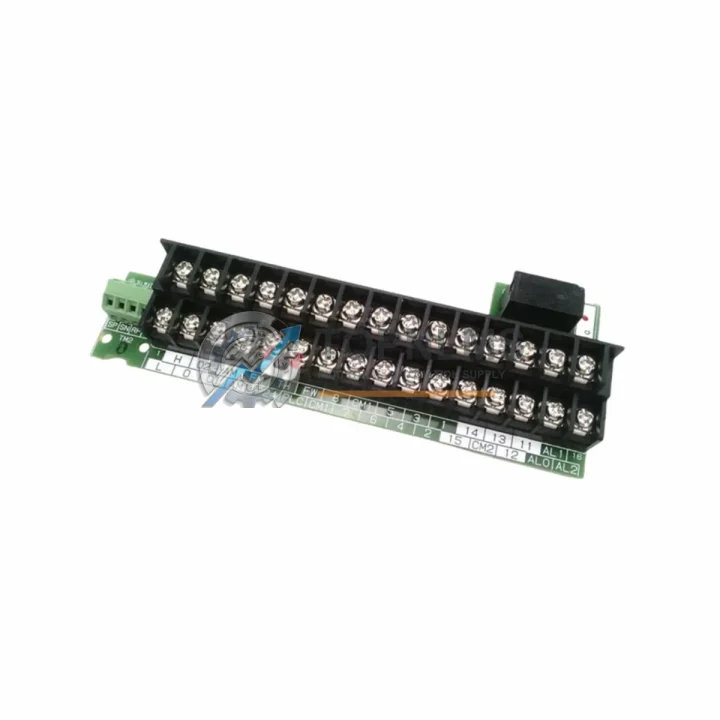

When a variable frequency drive control board fails on a production line, every minute of downtime translates directly into lost output and escalating maintenance costs. The HITACHI SJ300TM 3B295619-3 Control Terminal Board is the precision-engineered I/O interface at the heart of the HITACHI SJ300 Series VFD, governing all analog and digital signal routing between the drive’s power stage and the plant control system. TOPNLMS maintains verified stock of this board to support urgent replacement, planned maintenance, and system modernization projects across manufacturing, HVAC, water treatment, and heavy industrial applications.

Whether you are replacing a failed unit on an existing SJ300 drive or upgrading a legacy control architecture, the SJ300TM 3B295619-3 offers a direct, drop-in solution that preserves your existing wiring harness, terminal layout, and PLC interface — eliminating the need for costly rewiring or software reconfiguration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SJ300 drive restoration or system migration rarely involves a single component. In practice, engineers replacing the SJ300TM 3B295619-3 terminal board often find it necessary to inspect or simultaneously replace adjacent components to ensure the entire drive system returns to full operational integrity.

The HITACHI SJ300 Series main control board works in direct coordination with the terminal board, managing the drive’s core inverter logic, parameter storage, and fault diagnostics. If the terminal board failure was caused by an upstream voltage spike or ground fault, the main control board should be evaluated before commissioning the replacement terminal board. Similarly, the SJ300 Series power supply board provides the regulated DC rails that feed both the control and terminal boards — a degraded power supply can cause repeated terminal board failures and should be verified as part of any thorough repair procedure.

For facilities running HITACHI drives in networked automation environments, the SJ300 RS-485 communication option card (compatible with Modbus RTU) connects directly to the terminal board’s communication port, enabling integration with SCADA systems, PLCs such as the Mitsubishi MELSEC Q Series or Siemens S7-300, and distributed I/O networks. Ensuring this option card is undamaged and correctly configured is a critical step in restoring full network visibility of the drive after a terminal board swap.

In control cabinets where multiple SJ300 drives operate in parallel — common in multi-pump water treatment stations, multi-axis conveyor systems, and HVAC air handling units — the HITACHI SJ300 Series keypad / operator panel provides local parameter access and fault readout. Technicians performing a terminal board replacement should use the operator panel to verify parameter settings are intact and that the drive’s frequency reference source, acceleration/deceleration ramps, and protective relay outputs are correctly configured post-installation.

Where the SJ300 drive interfaces with a PLC analog output module (typically 4–20mA or 0–10V speed reference), the terminal board’s analog input terminals must be verified for correct signal scaling after replacement. In Siemens TIA Portal or Mitsubishi GX Works environments, this may require a brief I/O calibration step. For legacy systems using signal isolators or signal conditioners between the PLC and the VFD terminal board, these devices should also be inspected to confirm they are passing clean, noise-free reference signals — particularly in environments with significant electromagnetic interference from welding equipment, large motors, or high-frequency switching devices.

Finally, for customers managing a broader drive fleet, TOPNLMS also stocks related HITACHI L300P Series and HITACHI WJ200 Series control components, providing a consolidated source for multi-generation HITACHI VFD spare parts management. This simplifies procurement, reduces lead times, and supports a unified 12-month warranty coverage policy across your entire spare parts inventory.

Retrofit Guidance FAQ

Q1: Can I install the SJ300TM 3B295619-3 without rewiring my existing terminal connections?
Yes. The SJ300TM 3B295619-3 uses the identical terminal block layout as all SJ300 Series terminal boards. Your existing wiring harness — including analog reference inputs, digital command inputs, relay output wiring, and communication cable — connects directly to the replacement board without modification. This is one of the primary advantages of sourcing a genuine OEM replacement rather than attempting a cross-series substitution.

Q2: Will my SJ300 drive parameters be retained after replacing the terminal board?
Drive parameters in the SJ300 Series are stored on the main control board, not the terminal board. Replacing the terminal board alone does not erase or alter stored parameters. However, TOPNLMS recommends backing up all drive parameters using the HITACHI operator panel or a compatible programming tool before performing any board-level replacement, as a precautionary measure against unexpected power interruptions during the swap procedure.

Q3: Is this board compatible with RS-485 / Modbus RTU communication option cards?
Yes. The SJ300TM 3B295619-3 terminal board is fully compatible with HITACHI SJ300 Series RS-485 communication option cards supporting Modbus RTU protocol. After replacement, verify the communication address, baud rate, and parity settings in the drive parameters match your network configuration. No changes to the PLC or SCADA communication program should be required.

Q4: What does the 12-month warranty cover, and what is the replacement process?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. Each board undergoes functional testing and visual inspection prior to dispatch. In the event of a warranty claim, TOPNLMS provides direct technical support, failure analysis assistance, and expedited replacement shipping. Our procurement guarantee includes full traceability documentation, original packaging where available, and responsive after-sales support via [email protected] or +86 18359293191.
