HITACHI PHM-DT 33018744-2 Replacement for PHM-DT Series

Product Overview

HITACHI PHM-DT 33018744-2 Replacement for PHM-DT Series: Smooth Transition & Legacy System Compatibility

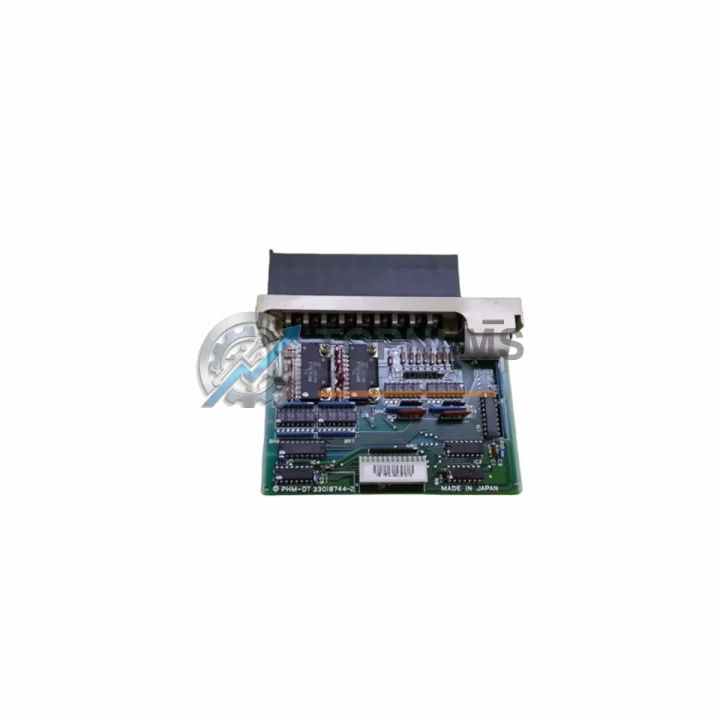

The HITACHI PHM-DT 33018744-2 is a DCS PCB control module engineered for process automation environments where reliability and backward compatibility are non-negotiable. As industrial facilities face the reality of aging Hitachi HISEC and EX Series DCS platforms reaching end-of-life, the PHM-DT 33018744-2 serves as a proven replacement and upgrade solution that preserves existing wiring infrastructure, communication architecture, and control logic — dramatically reducing migration risk and unplanned downtime.

Whether your facility is transitioning from an earlier PHM-series board revision, retiring a discontinued Hitachi DCS node, or consolidating spare parts inventory ahead of a planned shutdown, this module delivers the electrical and functional compatibility required for a seamless retrofit without full system redesign.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DCS migration around the PHM-DT 33018744-2 rarely involves a single module swap. In practice, field engineers replacing a failed or end-of-life Hitachi DCS control board will simultaneously audit adjacent components to prevent cascading failures. During a typical PHM-DT series retrofit, the following components are commonly evaluated or replaced alongside this module:

The Hitachi PHM-DT series power supply module is the first component to inspect — a degraded backplane power unit can cause intermittent faults that mimic control board failure. Similarly, the Hitachi DCS I/O expansion module connected downstream should be verified for signal integrity before commissioning the replacement board. In multi-node architectures, the Hitachi communication interface module (responsible for DCS bus arbitration) must be confirmed compatible with the revision level of the PHM-DT 33018744-2 to avoid bus contention errors.

For facilities running hybrid control architectures, the Hitachi analog input module and Hitachi analog output module connected to the same rack segment should be tested under load after the control board swap, as signal reference calibration may shift slightly between board revisions. If the DCS cabinet also houses a Hitachi terminal block assembly or marshalling panel, verify that field wiring terminations remain within specification — no rewiring is typically required for a direct PHM-DT revision upgrade, but terminal torque values should be re-confirmed per the original engineering drawings.

In systems where the Hitachi DCS interfaces with a third-party SCADA or HMI layer via a Hitachi serial communication module or Modbus gateway card, the communication parameters (baud rate, parity, station address) stored in the replacement module should be verified against the existing configuration file before going live. For sites that have already partially migrated to a newer control platform, a Hitachi protocol converter module may be required to bridge legacy DCS nodes with modern Ethernet-based supervisory systems.

Finally, if the replacement is part of a broader spare parts consolidation program, procurement teams frequently source the Hitachi DCS rack backplane and Hitachi CPU controller module at the same time to establish a complete hot-standby spare set — reducing future emergency procurement lead times from weeks to hours.

Retrofit Guidance FAQ

Q: Can I replace the PHM-DT 33018744-2 without modifying existing field wiring?
A: Yes. The PHM-DT 33018744-2 is a direct drop-in replacement for earlier PHM-DT series revisions. The terminal layout and connector pinout are preserved, so no field wiring changes are required. Simply power down the affected DCS node, extract the failed board, insert the replacement, and restore power following your site’s standard hot-work procedure.

Q: Is the control program (application logic) retained after the board swap?
A: Control logic in Hitachi DCS systems is typically stored in the CPU controller module or on a dedicated memory card — not on the PHM-DT control board itself. In most configurations, replacing the PHM-DT 33018744-2 does not require re-downloading the application program. However, confirm with your DCS documentation whether any board-level parameters (e.g., node address, I/O range settings) need to be re-entered via the engineering workstation after replacement.

Q: What communication protocols does the PHM-DT 33018744-2 support?
A: This module operates on the Hitachi proprietary DCS internal bus protocol. It is designed for use within Hitachi HISEC or compatible DCS architectures. If your system requires bridging to Modbus RTU, PROFIBUS, or Ethernet/IP, a separate Hitachi communication gateway or protocol converter module is required — the PHM-DT control board itself does not perform protocol translation.

Q: Will the module fit in my existing DCS cabinet without physical modification?
A: Yes. The PHM-DT 33018744-2 maintains the same physical form factor as earlier PHM-DT series boards. It slots directly into the standard Hitachi DCS rack without requiring cabinet modifications, additional mounting hardware, or changes to cable management.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, perform a standard DCS node health check from the engineering workstation. Confirm that the module appears online in the system topology, that all I/O channels report expected values, and that no fault codes are active on the DCS operator station. A 30-minute warm-up observation period under normal process load is recommended before returning the loop to automatic control.

Q: What if the replacement module does not resolve the fault?
A: If the fault persists after replacing the PHM-DT 33018744-2, the root cause may lie in the backplane power supply, the DCS rack itself, or an upstream CPU module fault. TOPNLMS provides 12-month warranty coverage — if the supplied module is confirmed defective upon installation, we will arrange a replacement or full refund. Contact our technical team at [email protected] for post-installation support.

Warranty Assurance

Every HITACHI PHM-DT 33018744-2 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a pre-shipment functional inspection to verify board integrity, connector condition, and absence of physical damage. Units are packed in anti-static protective packaging with foam cushioning to prevent transit damage.

If a module is found to be defective on arrival (DOA) or fails within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or issue a full refund — subject to return inspection. Our standard after-sales response time is within 24 business hours. For urgent plant situations requiring expedited replacement, please contact us directly to arrange priority processing.

We maintain in-stock inventory of the PHM-DT 33018744-2 and related Hitachi DCS spare parts to support emergency procurement requirements. Orders confirmed before the daily cut-off are typically dispatched the same business day from our Xiamen warehouse, with DHL Express, FedEx International, and sea freight options available depending on urgency and destination.

For B2B procurement inquiries, volume pricing, or technical pre-sales consultation, contact the TOPNLMS industrial automation team directly.
