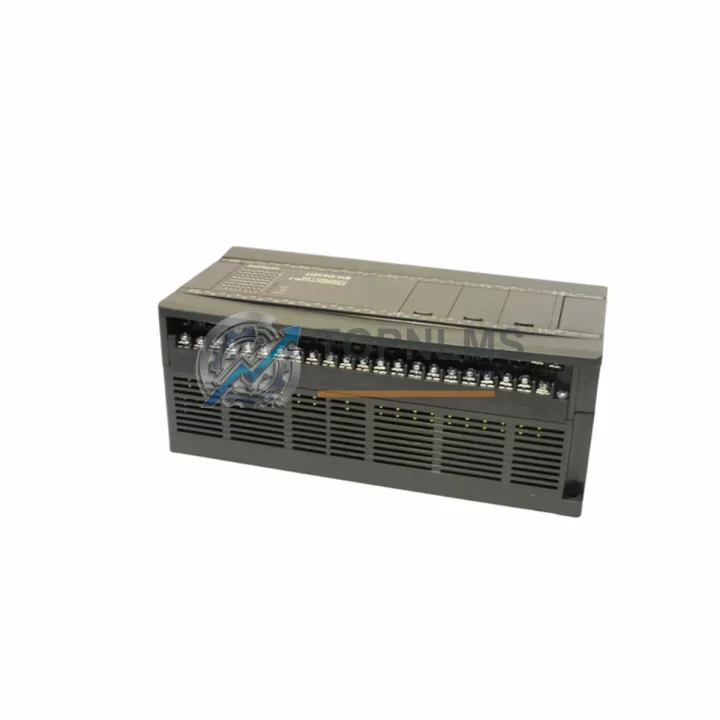

HITACHI MVL-D64DT Ruggedized Digital Output Module

Product Overview

HITACHI MVL-D64DT Ruggedized Digital Output Module: Industrial Resilience for Harsh Environments

The HITACHI MVL-D64DT is a 64-point transistor-type digital output module engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Designed as part of HITACHI’s proven MVL Series programmable controller platform, this module delivers high-density I/O expansion with the electrical robustness and thermal stability required by process-critical applications in oil & gas, power generation, mining, metallurgy, water treatment, and heavy manufacturing.

Where conventional output modules fail under sustained vibration, wide temperature swings, or persistent electromagnetic interference, the MVL-D64DT maintains signal integrity across all 64 transistor output channels. Its solid-state switching architecture eliminates mechanical wear, extending mean time between failures (MTBF) and reducing unplanned downtime on continuous production lines where every minute of stoppage carries significant cost.

Rugged Specifications Table

Comprehensive Protection Solutions

The MVL-D64DT is rarely deployed in isolation. In a fully integrated HITACHI MVL Series control cabinet, it works in concert with the MVL-CPU1 central processing unit, which orchestrates scan-cycle logic and manages inter-module communication across the backplane. High-density digital input acquisition is handled by companion modules such as the MVL-D64DT‘s counterpart input module, the MVL-D64DS, ensuring symmetrical I/O architecture for balanced system design.

For analog process variables — temperature, pressure, flow — the MVL-A08AI analog input module integrates seamlessly on the same rack, feeding real-time process data to the CPU without additional protocol conversion overhead. On the power supply side, the MVL-PA2 power supply module provides stable, regulated DC power to the entire rack, with built-in overvoltage and overcurrent protection that shields the MVL-D64DT and all co-installed modules from upstream power anomalies.

In safety-critical zones — particularly in chemical plants or explosive-atmosphere areas classified under ATEX or IECEx — the MVL-D64DT is typically paired with HITACHI safety relay modules and certified intrinsic safety barriers to ensure that output signals reaching field devices remain within safe energy limits. Communication between the MVL PLC rack and supervisory SCADA systems is facilitated by MVL-series communication modules supporting MODBUS RTU, PROFIBUS-DP, or Ethernet/IP, depending on site protocol requirements.

Terminal block assemblies — including HITACHI MVL connector terminal modules — provide the physical interface between the MVL-D64DT’s 64 output channels and field wiring, with clearly labeled, vibration-resistant screw terminals rated for industrial cable gauges. Variable-frequency drives (VFDs) and servo amplifiers connected downstream of the MVL-D64DT benefit from the module’s fast output response time, enabling precise start/stop sequencing of motors and actuators on high-speed production lines.

Application in Critical Infrastructure

In oil and gas upstream operations, the MVL-D64DT controls solenoid valves, motor starters, and alarm annunciators across wellhead automation panels. Its photocoupler isolation prevents ground loops and surge currents — common in field environments with long cable runs — from corrupting output states or damaging the module’s internal circuitry.

At thermal and hydroelectric power stations, the module manages turbine auxiliary systems, cooling water pump controls, and switchgear interlocking. The wide operating temperature range and vibration tolerance make it suitable for installation in generator hall control panels where ambient conditions fluctuate significantly with load cycles.

In underground mining operations, where dust ingress, mechanical shock from blasting, and high humidity are constant challenges, the MVL-D64DT’s robust construction and conformal-coated PCB (where applicable) provide the reliability margins that safety regulations demand. Conveyor belt control, ventilation fan sequencing, and emergency stop circuit actuation are typical output functions managed by this module in mining automation architectures.

Water and wastewater treatment facilities rely on the MVL-D64DT for pump station control, chemical dosing valve actuation, and UV disinfection system management. The module’s ability to handle 64 discrete output points from a single slot minimizes rack space consumption — a critical advantage in compact pump station control panels.

In metallurgical and steel mill environments, where electromagnetic interference from large induction furnaces and arc welders is severe, the MVL-D64DT’s optical isolation and noise-suppression design maintain output signal fidelity even in close proximity to high-power electrical equipment. Rolling mill drive sequencing, ladle transfer car control, and furnace door actuation are representative applications.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the MVL-D64DT?
Every MVL-D64DT shipped by TOPNLMS carries a 12-month warranty from the date of delivery. If the module exhibits any manufacturing defect or functional failure under normal operating conditions within this period, we provide repair, replacement, or full refund — at our discretion and in coordination with the customer. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q2: How is each unit tested before shipment?
All MVL-D64DT modules undergo a pre-shipment functional inspection that includes power-on verification, output channel continuity testing, and visual inspection for physical damage or counterfeit indicators. Units sourced from authorized distribution channels are cross-referenced against HITACHI’s genuine part markings. We do not ship modules that fail any inspection criterion.

Q3: Is the MVL-D64DT compatible with existing HITACHI MVL Series installations?
Yes. The MVL-D64DT is a direct drop-in replacement for existing MVL Series racks without requiring CPU firmware changes or backplane modifications, provided the rack’s power budget accommodates the module’s load current. It is backward-compatible with all MVL Series CPU modules and can coexist with other MVL I/O, analog, and communication modules on the same backplane.

Q4: Can TOPNLMS support long-term or repeat procurement of the MVL-D64DT?
Yes. TOPNLMS maintains dedicated stock reserves for high-demand industrial automation modules, including the MVL-D64DT, to support both emergency replacement orders and planned maintenance procurement schedules. We offer volume pricing for standing orders and can provide lead-time commitments for project-based purchasing. Contact our technical sales team to discuss your site’s ongoing spare-parts strategy.
