HITACHI LYD105A Replacement for EH Series PLC

Product Overview

HITACHI LYD105A Replacement for EH Series PLC: Smooth Migration & Legacy System Upgrade

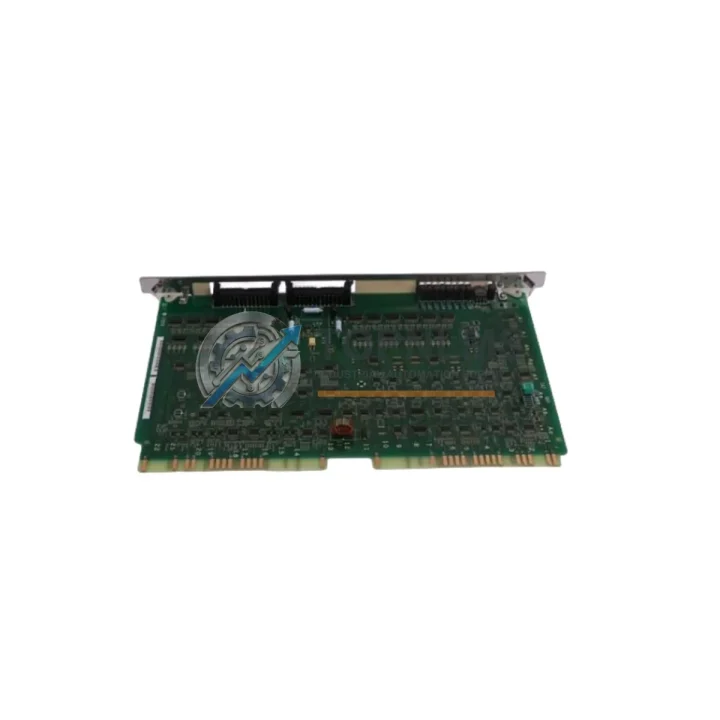

The HITACHI LYD105A is a 16-point DC digital input module designed for the HITACHI EH Series programmable logic controller platform. As industrial facilities face the end-of-life of legacy EH Series control systems, sourcing a verified, drop-in replacement for the LYD105A has become a critical procurement priority. Whether you are maintaining an existing EH Series rack or executing a phased migration to a newer control architecture, the LYD105A provides the electrical and logical compatibility required to minimize engineering rework and eliminate unplanned downtime.

The LYD105A accepts 24 VDC discrete input signals and interfaces directly with the EH Series CPU backplane without requiring firmware changes or I/O address remapping in most standard configurations. Field wiring connected to the original module can typically be re-terminated to the replacement unit using the same terminal block layout, reducing rewiring labor to near zero. For facilities running HITACHI’s ladder logic programming environment, the module’s I/O map is preserved, meaning existing programs compiled for the EH Series CPU — such as those running on the EH-150 or EH-A series controllers — do not require modification before commissioning the replacement module.

When planning a retrofit or upgrade, engineers frequently need to address the broader system context. The LYD105A sits within a rack that may also house the LYD205A analog input module, the LYD305A digital output module, and the LYD405A analog output module. Power distribution within the rack is managed by the EH Series power supply unit, and the CPU communicates with remote I/O drops via the EH-ETH Ethernet communication module or legacy serial links using the EH-SIO serial interface module. All of these components share the same backplane bus architecture, and replacing the LYD105A does not disrupt the communication or power topology of adjacent modules.

For sites transitioning from older HITACHI H Series or EC Series PLCs to the EH platform, the LYD105A serves as the standardized digital input interface in the new rack assembly. Migration projects of this type typically involve replacing the H-CPU or EC-CPU controller, reusing existing field wiring where voltage levels are compatible, and commissioning new I/O modules including the LYD105A to match the updated I/O list. The EH Series programming software supports import of legacy ladder programs, further reducing migration engineering hours.

In control cabinet installations, the LYD105A occupies a single slot in the EH Series base unit. Its compact form factor is compatible with both the 5-slot and 12-slot EH Series base units, making it suitable for space-constrained panels. The module draws power from the backplane and does not require an external auxiliary power supply, simplifying cabinet wiring. Signal isolation between field inputs and the backplane logic is provided internally, protecting the CPU from transient voltages common in industrial environments such as motor starter feedback signals, proximity sensor outputs, and pushbutton circuits.

Procurement teams evaluating the LYD105A as a replacement or safety stock item should note that TOPNLMS maintains verified inventory of this module and related EH Series components. Each unit undergoes functional testing prior to shipment, including input channel verification across all 16 points. Units are shipped in anti-static packaging with inspection documentation. Standard lead time from our Xiamen warehouse is 3–7 business days for international destinations, with expedited options available for urgent plant maintenance scenarios.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful EH Series migration or maintenance project rarely involves a single module. When replacing the LYD105A, engineers should audit the full rack configuration to identify other components approaching end-of-life or requiring standardization. The LYD305A digital output module is the most common companion module in mixed I/O racks and should be evaluated alongside the LYD105A replacement. For analog signal acquisition, the LYD205A analog input module handles 4–20 mA and 0–10 V process signals and is frequently found in the same base unit as the LYD105A in process control applications.

Communication infrastructure is equally important during migration. Sites using HITACHI’s EH-ETH Ethernet module for SCADA connectivity or the EH-SIO serial interface module for Modbus RTU or RS-485 device networks should verify firmware compatibility with the replacement I/O modules. In cases where the existing EH Series power supply unit is aging, replacing it concurrently with the LYD105A reduces the risk of a secondary failure shortly after the I/O module swap. For remote I/O architectures, the EH Series remote I/O master module and its corresponding remote I/O slave units should be inspected for firmware version alignment.

Programming and commissioning support is simplified when the HITACHI EH Series programming cable is available on-site. This cable connects a laptop running the EH Series ladder programming software to the CPU’s programming port, enabling online monitoring of input channel states immediately after the LYD105A is installed — confirming correct field wiring before returning the system to production. For facilities upgrading to a newer HITACHI H Series or third-party PLC platform, signal isolators and terminal conversion modules may be required to bridge wiring differences between the legacy EH terminal layout and the new I/O module’s connector format.

Retrofit Guidance FAQ

Q: Can I install the LYD105A without modifying my existing ladder program?
A: Yes. The LYD105A is a direct replacement for the original EH Series digital input module. The I/O address assignment is preserved on the backplane, so the CPU reads the new module’s inputs at the same addresses as the original. No program download is required in most standard rack configurations.

Q: Do I need to rewire the field terminals when replacing the module?
A: No rewiring is required. The LYD105A uses the same terminal block pitch and pin assignment as the original EH Series digital input module. Field cables can be transferred directly from the old module’s terminal block to the replacement unit.

Q: Is the LYD105A compatible with both the 5-slot and 12-slot EH Series base units?
A: Yes. The module fits any standard EH Series base unit slot and is compatible with all EH Series CPU variants including the EH-150 and EH-A series controllers.

Q: What communication protocols does the LYD105A support?
A: The LYD105A communicates via the EH Series backplane parallel bus. It does not require a separate network connection. Higher-level communication protocols such as Ethernet/IP, Modbus TCP, or PROFIBUS are handled by dedicated communication modules installed in separate slots of the same rack.

Q: Can the LYD105A be used in a migration from an older HITACHI H Series or EC Series system?
A: Yes, when the target platform is the EH Series. The LYD105A is the standard digital input module for EH Series racks. If migrating from H Series or EC Series hardware, the EH Series base unit, CPU, and power supply must also be installed as part of the rack assembly.

Q: How do I verify the module is functioning correctly after installation?
A: Connect the HITACHI EH Series programming cable to the CPU’s programming port and use the EH Series ladder software to monitor the input channel status in real time. Activate each field device connected to the LYD105A and confirm the corresponding input bit toggles correctly before returning the system to automatic operation.

Warranty Assurance

Every HITACHI LYD105A unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a multi-point functional test including input channel verification across all 16 points, backplane connector inspection, and visual quality control. Units that do not pass testing are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund depending on the nature of the fault and the customer’s preference. Our after-sales response target is 24 hours for initial fault assessment. Customers are not required to return the faulty unit before a replacement is dispatched for critical plant maintenance situations — contact our sales team to arrange an advance replacement under warranty.

Shipping is handled from our Xiamen warehouse with standard international lead times of 3–7 business days. Expedited shipping via DHL Express or FedEx Priority is available for urgent maintenance requirements. All shipments include a commercial invoice, packing list, and test report. Import documentation support is available on request for customers in regulated markets.

TOPNLMS has been supplying industrial automation components to manufacturing, energy, and process industries since 2010. Our inventory is sourced directly from authorized distributors and verified suppliers, and we maintain safety stock of high-demand EH Series modules to support rapid response for plant maintenance emergencies.
