Hitachi LYA100A Original Industrial Spare H-Series Compatible

Product Overview

Hitachi LYA100A Original Industrial Spare H-Series Compatible: System Stability and Industrial Spare Parts Maintenance Value

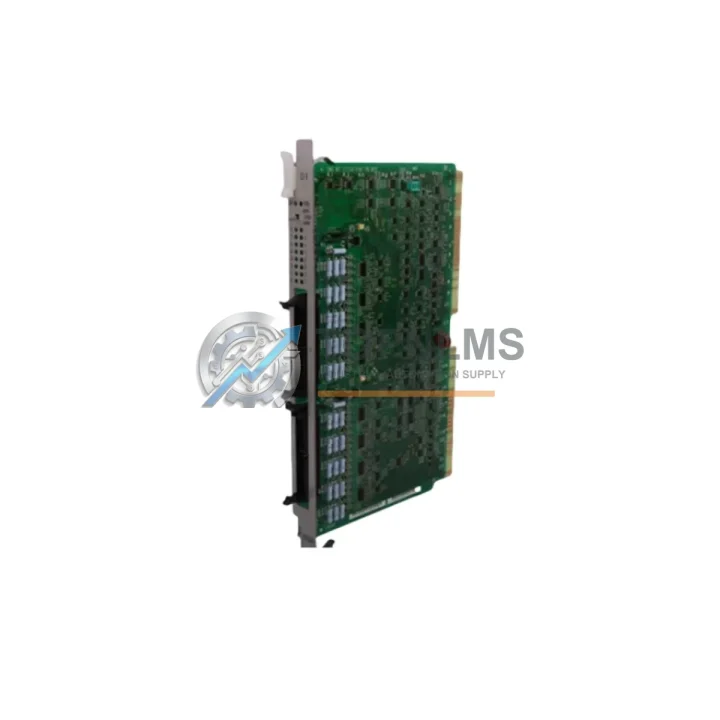

The Hitachi LYA100A is a relay output module designed for the Hitachi H-Series programmable logic controller platform — one of the most widely deployed PLC families in discrete manufacturing, material handling, and process automation across Asia-Pacific industrial facilities. As production lines age and original equipment manufacturers phase out legacy support, maintaining a verified stock of original spare modules like the LYA100A becomes a cornerstone of any credible preventive maintenance program. Unplanned downtime caused by a failed output module can halt an entire production cell within seconds; having a tested, ready-to-install replacement on the shelf is the single most effective insurance against that risk.

The LYA100A provides relay-type discrete outputs, making it suitable for driving solenoid valves, motor contactors, indicator lamps, and other field devices that require dry-contact switching. Its compatibility with the H-Series backplane and CPU modules means it can be swapped into an existing rack without firmware reconfiguration in most standard applications, dramatically reducing mean time to repair (MTTR) during emergency maintenance windows.

Critical Technical Specs

Preventive Maintenance Strategy

A relay output module like the LYA100A rarely fails in isolation. In most H-Series control cabinets, the output module works in close coordination with several other components, and a thorough maintenance inspection should address the entire output circuit — not just the module itself. When scheduling a planned maintenance window to replace or inspect the LYA100A, maintenance engineers should simultaneously verify the condition of the Hitachi H-Series CPU module (such as the EH-CPU448 or compatible variants), which governs the scan cycle and output refresh rate. A degraded CPU can cause erratic relay switching that mimics output module failure.

The H-Series power supply module (e.g., LPS series) should be load-tested during the same window, as an under-voltage power rail is a leading cause of relay contact chatter and premature coil wear. Downstream of the LYA100A, the terminal blocks and wiring harnesses connecting relay outputs to field devices deserve close attention — corroded or loose terminals account for a significant proportion of apparent output module faults that are actually wiring issues.

For facilities running mixed I/O architectures, it is prudent to inspect the H-Series digital input module (LXA series) in the same rack, since input and output modules share the backplane bus and a failing input module can generate spurious diagnostics that complicate fault isolation. If the control cabinet includes analog I/O modules for process variable monitoring, their calibration should be verified during the same outage to avoid a second unplanned shutdown shortly after the relay module replacement.

Communication integrity is equally important: the H-Series communication module (such as the LNK or ETH series) should be checked for firmware currency and connector integrity, particularly in facilities where the PLC communicates with SCADA systems or HMI panels over Ethernet or RS-485. A loose communication module can cause the CPU to enter fault mode, which may be misdiagnosed as an output module problem. Similarly, any signal isolators or surge protection modules installed between the LYA100A outputs and field devices should be tested for proper isolation resistance, as a failed isolator can expose the relay contacts to transient voltages that shorten service life.

Finally, the H-Series rack or base unit itself should be inspected for backplane connector wear, especially in high-vibration environments. Facilities that operate the H-Series platform in dusty or humid conditions should also maintain a stock of replacement fuse modules for the output circuit protection, as blown fuses are frequently the first symptom of an overloaded relay output — and replacing the fuse without addressing the root cause will simply result in repeat failures.

Strategic Replacement Solutions

The Hitachi LYA100A addresses one of the most persistent challenges in industrial maintenance: sourcing verified original spare parts for PLC platforms that are no longer in active production but remain deeply embedded in operational infrastructure. Many H-Series installations have been running continuously for 10 to 20 years, and the original system integrators may no longer be available to provide support. In this context, a genuine LYA100A module — tested, documented, and backed by a 12-month warranty — offers a direct plug-in replacement that preserves the original system architecture without requiring any ladder logic modification, I/O address remapping, or engineering rework.

This is particularly valuable for facilities that cannot afford the capital expenditure of a full PLC platform migration. By extending the service life of the existing H-Series system with verified original spare modules, maintenance managers can defer migration costs by several years while maintaining full production capacity. The LYA100A’s relay output architecture also means it can drive a wide range of field devices without additional interface hardware, simplifying the replacement process for technicians who may not have deep familiarity with the original system design.

For multi-site operations managing several H-Series installations, establishing a centralized spare parts inventory that includes the LYA100A alongside compatible CPU, power supply, and I/O modules creates a resilient maintenance posture that minimizes both emergency procurement lead times and the risk of sourcing counterfeit or non-original components from unverified suppliers. All units supplied by TOPNLMS are function-tested prior to shipment and covered by a 12-month warranty, providing procurement teams with the documentation and assurance required for maintenance records and audit compliance.

Support FAQ

Q1: Is the LYA100A a genuine original Hitachi module, or a compatible replacement?
The LYA100A supplied by TOPNLMS is a genuine original Hitachi module, not a third-party compatible or remanufactured unit. Each module is sourced through verified industrial supply channels and undergoes function testing before dispatch. A 12-month warranty is provided from the date of shipment.

Q2: How do I verify compatibility with my existing H-Series rack before ordering?
The LYA100A is designed for direct installation into the Hitachi H-Series PLC backplane. To confirm compatibility, check your existing rack model number and CPU type against the H-Series hardware manual. If you can share your current rack configuration or CPU model number with our technical team at [email protected], we can confirm compatibility before you place your order.

Q3: What is the typical lead time and how is the module packaged for shipment?
In-stock units are typically dispatched within 1–3 business days of order confirmation. Each module is individually packaged in anti-static protective packaging with appropriate cushioning for international freight. Tracking information is provided upon dispatch. Express shipping options are available for urgent maintenance requirements.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact [email protected] with your order reference, a description of the fault, and any available diagnostic information. Our technical team will assess the claim and arrange replacement or repair as appropriate.
