HIMA Z7128 Ruggedized Field Wiring Module for Harsh Environments

Product Overview

HIMA Z7128 Ruggedized Field Wiring Module for Harsh Environments

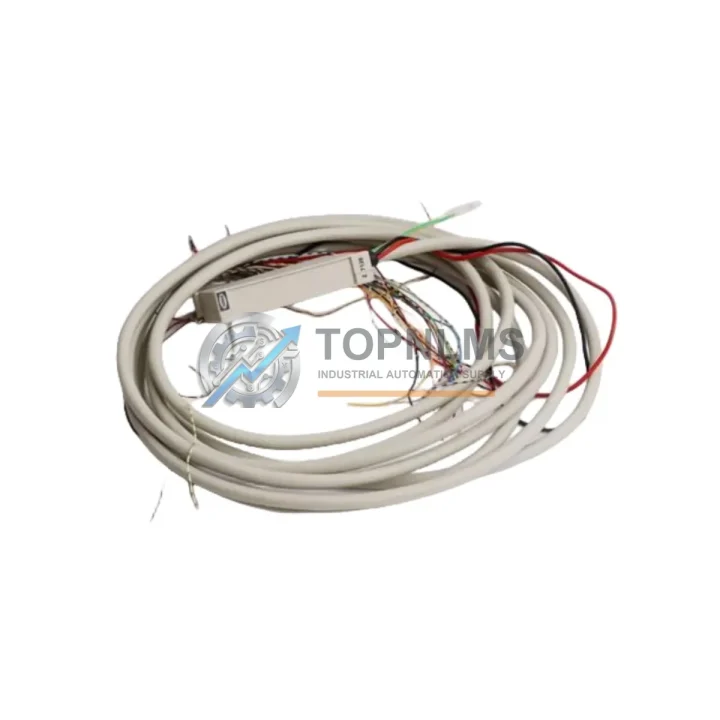

The HIMA Z7128 is a precision-engineered field wiring cable plug designed for seamless integration with the HIMatrix and HIMax safety-rated I/O module families. Built to HIMA’s exacting standards for safety instrumented systems (SIS), the Z7128 delivers consistent, interference-free signal connectivity in the most demanding industrial environments — from offshore oil platforms and petrochemical refineries to underground mining operations and high-voltage power substations.

Where conventional connectors fail under sustained mechanical vibration, thermal cycling, or corrosive atmospheric exposure, the Z7128 maintains its rated contact integrity. Its ruggedized housing and gold-plated contact pins resist oxidation and micro-arcing, ensuring that every I/O channel connected through it remains within specification across the full operational lifecycle of the safety system. For process engineers and maintenance teams responsible for SIL 2 and SIL 3 certified control loops, this level of field-level reliability is non-negotiable.

Rugged Specifications Table

Comprehensive Protection Solutions

The Z7128 does not operate in isolation — it is a critical interface component within a broader HIMA safety architecture. In a typical HIMatrix-based safety instrumented system, the Z7128 field wiring plug connects directly to the HIMA F3 DIO 20/8 01 digital I/O module, which handles discrete input and output signals from field instruments such as pressure switches, solenoid valves, and emergency shutdown actuators. Alongside it, the HIMA F3 AI 8/4 01 analog input module processes 4–20 mA signals from transmitters monitoring temperature, flow, and level — all routed through Z7128-compatible wiring harnesses.

In HIMax-based architectures deployed in large-scale power generation or refinery applications, the Z7128 interfaces with the HIMA X-MIO 8/8 01 mixed I/O module, enabling both digital and analog field connections within a single backplane slot. The HIMA X-CPU 01 central processing unit governs the safety logic, while the HIMA X-COM 01 communication module handles PROFIBUS DP and Modbus TCP/IP data exchange with the plant DCS — typically a Siemens SIMATIC PCS 7 or Honeywell Experion PKS system. Reliable field wiring integrity at the Z7128 level is what ensures these upstream communication layers receive clean, validated process data.

For power conditioning within the control cabinet, the HIMA F3 Power 01 redundant power supply module provides the 24 VDC rail that energizes all HIMatrix I/O modules. Paired with a Phoenix Contact QUINT-PS or Weidmüller PRO MAX industrial DIN-rail power supply as a secondary feed, the system achieves the power redundancy required for SIL 3 applications. Terminal blocks — typically Weidmüller WDU 2.5 or Phoenix Contact UK 2.5 B — distribute field wiring within the cabinet, with each conductor ultimately terminating at a Z7128 plug before mating with the HIMA I/O module face.

In safety relay applications, the HIMA HIMatrix F35 controller coordinates with Pilz PNOZ X or Schmersal SRB safety relay modules to manage machine guarding and emergency stop circuits. The Z7128 ensures that the wiring interface between the HIMatrix output channels and these downstream safety relays remains mechanically secure under the vibration loads common in press lines, robotic welding cells, and conveyor systems. For facilities running continuous production lines where unplanned downtime carries significant financial and safety consequences, maintaining a stock of Z7128 plugs as certified spare parts is standard practice among reliability engineers.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the HIMA Z7128 is routinely deployed within wellhead control panels and pipeline emergency shutdown (ESD) systems. Offshore platforms operating in the North Sea or South China Sea subject control cabinet wiring to salt-laden humid air, constant mechanical vibration from wave motion and rotating machinery, and wide ambient temperature swings. The Z7128’s robust contact design maintains signal integrity under these conditions, supporting the HIMatrix safety controller’s ability to execute ESD logic within the required response time — typically under 100 ms for SIL 2 certified loops.

In coal and metal mining operations, underground control rooms face explosive dust atmospheres, high humidity from water ingress, and electromagnetic interference from large variable frequency drives (VFDs) controlling conveyor belts and ventilation fans. The Z7128, installed within IP54-rated or higher control enclosures, provides the field wiring interface for HIMatrix modules monitoring methane gas detectors, belt misalignment switches, and fire suppression actuators. Its compatibility with shielded cable assemblies helps suppress common-mode noise induced by nearby VFDs — such as the ABB ACS880 or Siemens SINAMICS G120 series — that could otherwise corrupt safety-critical I/O signals.

In power generation and grid substations, the Z7128 supports HIMax-based turbine protection systems and transformer differential protection panels. High-voltage switching operations generate transient electromagnetic pulses that can damage unprotected field wiring interfaces; the Z7128’s shielded construction and HIMA’s EMC-rated system design mitigate this risk. Water treatment plants and metallurgical facilities similarly rely on the Z7128 to maintain continuous operation of chemical dosing control loops and furnace temperature regulation systems, where a single wiring fault could trigger a costly process shutdown or safety incident.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the HIMA Z7128?
The 12-month warranty covers all manufacturing defects, contact failure, and functional non-conformance under normal operating conditions as specified by HIMA. Each unit shipped by TOPNLMS has been individually inspected and function-tested prior to dispatch. If a defect is identified within the warranty period, we provide a replacement unit or full refund — no restocking fees applied.

Q2: How is the Z7128 tested before shipment?
Every Z7128 unit undergoes a pre-shipment inspection protocol that includes visual examination for contact pin integrity, housing crack detection, and continuity verification across all contact positions. Units sourced from authorized HIMA distribution channels are accompanied by original manufacturer documentation. Batch traceability records are maintained for all inventory held at our Xiamen warehouse.

Q3: Is the Z7128 compatible with both HIMatrix and HIMax I/O modules?
Yes. The Z7128 is the standard field wiring cable plug specified by HIMA for use across the HIMatrix F-series (F3 DIO, F3 AI, F3 AO, F60, F35) and HIMax X-MIO module families. It is backward-compatible with legacy HIMatrix installations and forward-compatible with current HIMax system expansions. Always verify the specific module face connector count against your system documentation before ordering.

Q4: Can TOPNLMS support long-term or repeat procurement of the Z7128?
Yes. TOPNLMS maintains standing inventory of the Z7128 and other HIMA HIMatrix/HIMax spare parts to support planned maintenance schedules, emergency replacements, and capital project builds. We offer volume pricing for orders of 10 units or more, and can provide lead-time commitments for scheduled procurement programs. Contact our technical sales team to discuss a spare parts framework agreement tailored to your facility’s maintenance cycle.
