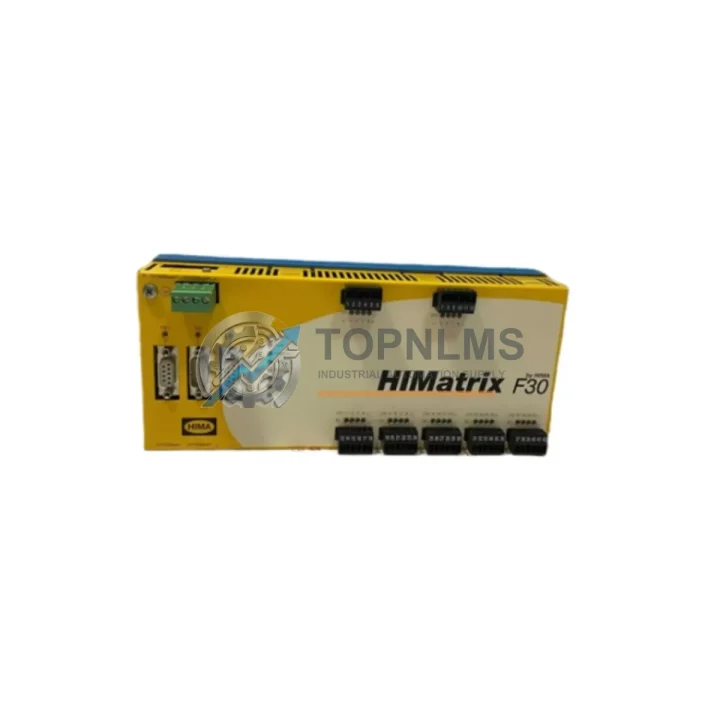

HIMA HIMATRIX F30 01 Replacement Safety Controller

Product Overview

HIMA HIMATRIX F30 01 Replacement Safety Controller: Seamless Migration from Legacy F-Series Systems

The HIMA HIMATRIX F30 01 is a distributed safety controller designed for Safety Integrity Level 3 (SIL3) applications in process automation, oil & gas, petrochemical, and power generation industries. As legacy HIMATRIX F-series installations approach end-of-life or face discontinued spare-part availability, plant engineers and procurement teams are increasingly seeking a verified, drop-in replacement that preserves existing wiring infrastructure, retains compatibility with established safety logic, and minimizes planned or unplanned downtime during the transition.

TOPNLMS supplies the HIMATRIX F30 01 as a direct replacement module, fully tested prior to shipment, with a 12-month warranty covering hardware defects and functional failures. Each unit is inspected against HIMA’s original factory specifications to ensure it meets the same SIL3 certification requirements as the original installation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy HIMA safety system to the HIMATRIX F30 01 rarely involves replacing a single module in isolation. In practice, the upgrade process touches multiple layers of the control architecture, and understanding the interdependencies between components is critical to achieving a smooth cutover with minimal process interruption.

For sites currently running older HIMA H41q or HIMatrix F20 01 controllers, the transition to the F30 01 typically begins with an audit of the existing I/O wiring. The HIMATRIX F30 01 uses standard 24 VDC digital I/O with screw-terminal or spring-clamp field wiring connectors, which in most cases allows direct reuse of existing field cables without re-termination. Where the legacy system used a centralized I/O backplane, engineers often introduce distributed HIMATRIX F3 DIO 20/8 01 digital I/O modules or F3 AI 8/4 01 analog input modules to replicate the original I/O point count while gaining the flexibility of distributed placement closer to field instruments.

Communication protocol migration is another key consideration. Many legacy HIMA installations relied on PROFIBUS DP for integration with DCS platforms such as Yokogawa CENTUM VP or Honeywell Experion PKS. The HIMATRIX F30 01 natively supports PROFIBUS DP as a slave device, preserving the existing DCS configuration and avoiding costly re-engineering of the supervisory layer. For sites moving toward Ethernet-based architectures, the F30 01’s SafeEthernet interface enables peer-to-peer safety communication with other HIMATRIX nodes, supporting the gradual migration of safety bus segments without a full system replacement.

Power supply infrastructure should also be reviewed during the upgrade. The F30 01 operates on 24 VDC and supports redundant power feed connections. Sites previously using AC-powered safety controllers will need to verify that an appropriate HIMA F3 PS 10 01 or equivalent 24 VDC power supply module is available in the control cabinet. In many retrofit projects, the existing cabinet power rail is already 24 VDC, making this a straightforward verification rather than a hardware change.

For programming and logic migration, the ELOP II Factory engineering environment supports import of legacy HIMA project files, significantly reducing the effort required to port existing safety function blocks to the F30 01 target. Engineers working on sites with older ELOP II Desktop projects should plan for a logic review and re-validation cycle, particularly for any custom function blocks that reference hardware-specific addresses. A HIMA programming cable (USB-to-Ethernet adapter compatible with ELOP II Factory) is required for initial project download and online diagnostics during commissioning.

In control cabinet retrofit scenarios where physical space is constrained, the F30 01’s compact DIN-rail form factor offers a significant advantage over older rack-mounted HIMA systems. The reduced footprint often allows the new controller to be installed within the existing cabinet envelope, avoiding the cost and lead time associated with new cabinet fabrication. Where additional I/O capacity is needed, HIMATRIX F3 DIO 8/8 01 compact I/O modules can be distributed across the cabinet or mounted in satellite junction boxes, connected to the F30 01 via the SafeEthernet bus.

For applications requiring integration with third-party HMI platforms, the F30 01 supports Modbus TCP, enabling straightforward data exchange with SCADA systems and operator panels from vendors such as Siemens, Schneider Electric, or Weintek. Sites using legacy serial Modbus RTU communication will require a Modbus RTU-to-TCP gateway or a serial communication module to bridge the protocol gap during the transition period.

Finally, for sites managing a phased migration — where some safety loops remain on the legacy system while others are cut over to the F30 01 — a signal isolator or safety relay module (such as a Phoenix Contact or Pepperl+Fuchs SIL-rated isolator) may be required at the boundary between old and new systems to maintain signal integrity and prevent ground loops during the parallel-run period.

Retrofit Guidance FAQ

Q: Can the HIMATRIX F30 01 reuse existing field wiring from a legacy HIMA H41q or F20 01 installation?
A: In most cases, yes. The F30 01 uses standard 24 VDC digital I/O with industry-standard terminal connectors. Existing field cables can typically be re-terminated directly to the F30 01 or its associated I/O modules without modification, provided the signal types (DI, DO, AI, AO) and voltage levels are compatible. A wiring audit is recommended before cutover.

Q: Is the ELOP II Factory project from a legacy HIMATRIX system directly transferable to the F30 01?
A: ELOP II Factory supports project migration from earlier HIMATRIX targets. However, hardware-specific configurations (I/O addresses, communication parameters, and hardware object assignments) must be reviewed and updated to match the F30 01 hardware profile. A full Factory Acceptance Test (FAT) and Site Acceptance Test (SAT) are recommended after migration.

Q: Does the F30 01 support PROFIBUS DP for integration with existing DCS systems?
A: Yes. The HIMATRIX F30 01 supports PROFIBUS DP slave operation, allowing it to integrate with DCS platforms that use PROFIBUS DP as the primary fieldbus. Existing GSD files and DCS configuration may need to be updated to reflect the new device profile.

Q: What are the physical installation requirements for replacing a rack-mounted legacy controller with the F30 01?
A: The F30 01 is DIN-rail mounted and has a compact form factor. Replacing a rack-mounted legacy controller will require a DIN-rail mounting kit and may require modifications to the existing cabinet layout. In most cases, the F30 01 can be accommodated within the existing cabinet without structural changes.

Q: How is the F30 01 powered, and is redundant power supply supported?
A: The F30 01 operates on 24 VDC and supports dual redundant power supply connections. Both power feeds are monitored, and a power supply fault is reported as a diagnostic alarm without causing a safety shutdown, provided the redundant feed remains healthy.

Q: What communication protocols does the F30 01 support for peer safety communication?
A: The F30 01 uses HIMA’s SafeEthernet protocol for SIL3-rated peer-to-peer safety communication between HIMATRIX nodes. For non-safety data exchange, Modbus TCP is supported for integration with SCADA, HMI, and DCS systems.

Warranty Assurance

Every HIMA HIMATRIX F30 01 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional verification test to confirm power-up behavior, communication interface operation, and I/O channel integrity. Units that do not pass the pre-shipment test are not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, subject to inspection of the returned item. Warranty claims are processed within 5 business days of receipt of the returned unit. Our after-sales team is available via email at [email protected] and by phone at +86 18359293191 to support troubleshooting, commissioning queries, and warranty coordination.

For procurement teams managing critical spare inventories, TOPNLMS maintains stock of the HIMATRIX F30 01 and related HIMATRIX F-series components to support both planned maintenance windows and emergency breakdown replacements. Lead times, quantity pricing, and export documentation (including country of origin certificates and test reports) are available on request.

Fast dispatch from Xiamen, China, with DHL Express, FedEx International Priority, and sea freight options available depending on urgency and destination. Export documentation including commercial invoice, packing list, and certificate of origin is provided as standard.
