Hima F8652X Replacement/Upgrade Solution for HIMax

Product Overview

Hima F8652X Replacement/Upgrade Solution for HIMax: Seamless Transition from Legacy Safety PLC Systems

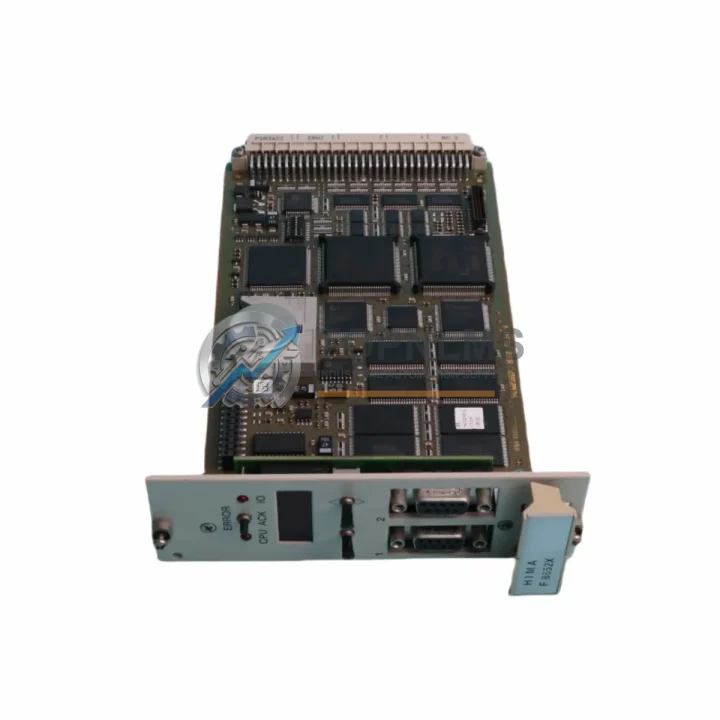

The Hima F8652X is the central processing module of the HIMax safety-rated programmable logic controller platform, designed and manufactured by HIMA Paul Hildebrandt GmbH in Germany. Certified to IEC 61508 SIL 3, this CPU module serves as the computational core of safety-critical control architectures across oil & gas, petrochemical, power generation, and process automation industries. As legacy HIMax installations age and original Hima F8652X units reach end-of-service life, plant engineers and procurement teams face the challenge of sourcing a verified replacement that preserves system integrity without triggering a full safety lifecycle re-validation.

TOPNLMS stocks the Hima F8652X as a direct replacement module, fully tested prior to shipment, with a 12-month warranty and rapid dispatch from our Xiamen warehouse. Whether you are executing a planned turnaround, responding to an unplanned failure, or executing a phased modernization of your HIMax safety system, this module is available for immediate procurement.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful HIMax system migration or F8652X replacement rarely involves a single module in isolation. In practice, plant engineers undertaking a safety system upgrade or emergency replacement will encounter a cluster of interdependent components that must be evaluated alongside the CPU module itself.

The HIMax backplane and rack assembly (F8650A or F8650B series) forms the physical and electrical backbone into which the F8652X slots. If the existing rack shows signs of connector wear or corrosion — common in installations exceeding ten years — replacing the CPU module alone may not restore full system reliability. Similarly, the HIMax power supply module (such as the F8621A) must be verified to deliver stable 24 VDC within tolerance, as CPU module failures are sometimes misdiagnosed when the root cause is power rail instability.

On the I/O side, the HIMax platform supports a range of digital and analog I/O modules — including the F8704R digital input module and the F8708R digital output module — which communicate with the F8652X over the internal HIMax bus. During a CPU replacement, it is standard practice to verify that firmware versions across these I/O modules are compatible with the replacement CPU’s operating system version. Mismatched firmware between the F8652X and downstream I/O modules is a known source of post-replacement diagnostic faults.

Communication continuity is another critical consideration. Many HIMax installations interface with distributed control systems (DCS) or SCADA platforms via SAFEETHERNET or Modbus TCP. The HIMax communication module (F8627X or F8628X series) handles protocol bridging and must remain configured correctly after a CPU swap. In plants where legacy PROFIBUS DP networks connect field devices — including variable frequency drives, valve positioners, and remote I/O stations — the PROFIBUS master configuration stored in the SILworX project file must be re-downloaded to the replacement F8652X before the system can resume normal operation.

For sites migrating from older HIMatrix F30 or F60 series standalone controllers to the HIMax platform, the engineering scope expands significantly. The HIMatrix uses a different physical form factor and a different programming paradigm under ELOP II NT, meaning that control logic must be re-engineered in SILworX and I/O wiring must be re-terminated to HIMax-compatible terminal modules. In these migration projects, the F8652X serves as the new safety CPU, while HIMax terminal boards and signal conditioning modules replace the HIMatrix’s integrated I/O connectors.

HMI connectivity is also worth addressing: plants using Hima-compatible SCADA gateways or third-party HMI panels communicating via OPC DA/UA will need to verify that the OPC server configuration references the correct CPU node address after replacement. In redundant HIMax configurations, the F8652X operates as part of a 1oo2D or 2oo3 voting architecture alongside a companion CPU module, so both units should ideally be sourced from the same production batch to ensure firmware parity.

Finally, for sites that maintain a local spare parts inventory, procurement teams often bundle the F8652X with a spare HIMax memory card and a SILworX programming cable (USB to HIMax service port) to ensure that field engineers can perform a complete CPU replacement and re-commissioning without waiting for additional parts to arrive.

Retrofit Guidance FAQ

Q: Can the F8652X be installed without powering down the entire HIMax rack?
A: In a fully redundant HIMax configuration with two CPU modules, the F8652X supports hot-swap replacement of the standby CPU. The active CPU continues to execute the safety program while the standby is replaced. After insertion, the new module synchronizes automatically. Single-CPU configurations require a controlled shutdown before replacement.

Q: Do I need to re-download the SILworX project after replacing the F8652X?
A: In most cases, yes. The replacement CPU will not retain the previous module’s application program in volatile memory. The SILworX project file must be downloaded from the engineering workstation via the HIMax service port or Ethernet connection. Ensure the project file version matches the CPU firmware version to avoid compatibility errors.

Q: Is the F8652X backward compatible with older HIMax rack revisions?
A: The F8652X is designed for the HIMax modular rack platform. Compatibility with specific rack revisions depends on the backplane hardware version and firmware. TOPNLMS recommends providing your existing rack serial number and firmware version when placing an order so our technical team can confirm compatibility before shipment.

Q: What communication protocols does the F8652X support natively?
A: The F8652X supports SAFEETHERNET (Hima’s proprietary safety communication protocol), Modbus TCP, and PROFIBUS DP (via the appropriate communication module). OPC DA/UA connectivity is available through the HIMax OPC server software running on a connected engineering workstation.

Q: How do I verify that the replacement F8652X is genuine and not a counterfeit?
A: TOPNLMS sources all Hima modules through verified supply channels. Each F8652X unit is inspected and function-tested prior to shipment. We provide a test report and serial number documentation with every order. The 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q: Can the F8652X be used to replace a Hima H41q or H51q controller?
A: The F8652X is a HIMax platform module and is not a direct plug-in replacement for H41q or H51q standalone controllers, which use a different physical form factor and programming environment. Migration from H-series to HIMax requires a full system re-engineering project. TOPNLMS can advise on the required HIMax rack, power supply, and I/O module configuration for such migrations.

Warranty Assurance

Every Hima F8652X unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional test procedure to verify power-on behavior, communication port integrity, and module identification. Units that do not pass our pre-shipment inspection are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, subject to inspection of the returned module. Our after-sales response target is within 24 hours of a warranty claim submission. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize plant downtime.

For procurement teams requiring documentation, we can provide a certificate of conformity, pre-shipment test report, and packing list with each order. Export documentation for international shipments is prepared in compliance with Chinese customs regulations and the destination country’s import requirements.

To place an order or request a technical consultation, contact our team directly:

• Email: [email protected]
• Phone/WhatsApp: +86 18359293191
• Website: https://topnlms.com
