HIMA F8627 Original Industrial Spare HIMax Compatible

Product Overview

HIMA F8627 Original Industrial Spare HIMax Compatible: Ensuring Safety System Continuity and Uptime

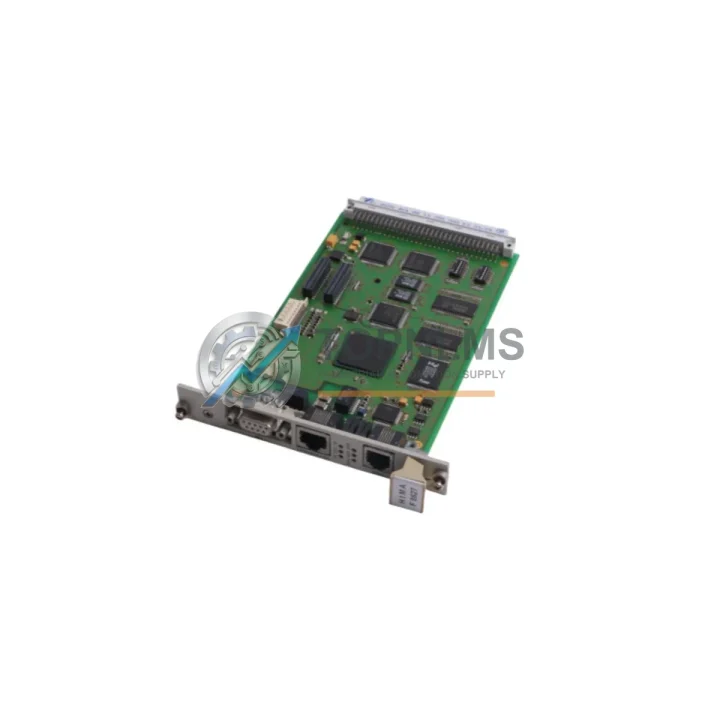

The HIMA F8627 SafeEthernet Communication Module is a critical original spare part designed for HIMax safety PLC systems — HIMA’s flagship high-availability, fault-tolerant safety controller platform widely deployed in oil & gas, petrochemical, power generation, and process automation industries. When a safety communication link fails or degrades, the consequences extend far beyond a simple fault alarm: entire safety instrumented systems (SIS) can be forced into a safe state, triggering costly unplanned shutdowns. Maintaining a verified, tested F8627 module in your spare parts inventory is one of the most cost-effective risk mitigation strategies available to maintenance engineers and reliability teams.

The F8627 implements HIMA’s proprietary SafeEthernet protocol, a deterministic, black-channel-capable communication layer that enables certified safe data exchange between HIMax CPUs, remote I/O racks, and peer safety controllers. Unlike standard industrial Ethernet, SafeEthernet carries built-in error detection, sequence monitoring, and watchdog mechanisms that satisfy IEC 61508 SIL 3 requirements without relying on the underlying network infrastructure for safety integrity. This makes the F8627 a non-substitutable component — only an original HIMA F8627 can restore full certified functionality to your HIMax safety network.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for HIMax-based safety systems must treat the F8627 not as an isolated component but as part of an interconnected safety communication architecture. During scheduled shutdowns or annual SIS proof tests, maintenance teams should systematically inspect the entire communication backbone alongside the F8627 module.

Begin with the HIMax CPU modules (F8650 / F8651) — the central processing units that originate and terminate SafeEthernet traffic. A degraded CPU firmware version or hardware fault can manifest as intermittent communication errors that are incorrectly attributed to the F8627. Verify CPU firmware compatibility with your installed F8627 revision before replacement.

Next, inspect the HIMax power supply modules (F8621A / F8622A). Unstable backplane power is a leading cause of premature communication module failure. Measure output voltage under load and replace any power supply showing ripple beyond specification — this single step can extend the service life of all installed F8627 modules significantly.

The HIMax I/O modules — including digital input modules such as the F3236 and digital output modules such as the F3330 — should be inspected for loose seating, corrosion on backplane connectors, and firmware currency. I/O modules that share the same rack as the F8627 communicate over the internal HIMax bus; a faulty I/O module can generate bus errors that stress the communication module unnecessarily.

Ethernet infrastructure feeding the F8627 deserves equal attention. Industrial managed switches configured for SafeEthernet traffic must maintain consistent VLAN segmentation and QoS prioritization. Inspect switch port statistics for CRC errors, late collisions, and input drops — any of these indicate cabling or switch hardware issues that will degrade F8627 performance even after a module replacement. Simultaneously, verify the integrity of Cat6 shielded Ethernet cables and RJ45 connectors at both the module and switch ends; industrial environments with vibration and thermal cycling are particularly hard on connector terminations.

For plants running HIMA HIMatrix or HIMAX remote I/O stations connected via SafeEthernet, confirm that remote station firmware is synchronized with the central HIMax system version. Firmware mismatches between the F8627 and remote stations are a documented source of communication timeouts that can trigger spurious safe-state demands.

Finally, review your terminal blocks and field wiring in the safety controller cabinet. Loose terminations on 24 VDC power distribution, signal commons, and shield grounds create noise that propagates into communication circuits. A torque check on all terminal screws and a continuity test on shield grounds costs minutes but prevents hours of fault-finding later.

Strategic Replacement Solutions

The HIMA F8627 addresses one of the most persistent challenges in long-lifecycle safety system management: sourcing certified original spare parts for platforms that have been in service for 10–20 years. Many HIMax installations were commissioned in the early 2000s and remain fully operational — their safety logic is validated, their proof test records are established, and plant operators have no business case to replace the entire SIS. What they need is a reliable supply of original hardware to sustain the platform through its remaining service life.

Substituting the F8627 with a non-original or counterfeit module is not a viable option in safety-critical applications. The SafeEthernet protocol implementation is firmware-locked to HIMA hardware, and any deviation from the original module specification invalidates the SIL 3 certification of the communication path. This means that for every HIMax system still in service, the F8627 remains an irreplaceable component — and procurement teams must secure supply from verified sources.

Stocking a minimum of one cold-spare F8627 per HIMax system — and two spares for systems with redundant communication configurations — is the industry-standard recommendation for SIS spare parts management per IEC 61511 guidance. For multi-train facilities with three or more HIMax systems, a shared pool of three to four F8627 modules provides statistically adequate coverage while minimizing capital tied up in inventory.

When replacing an F8627 in a live redundant HIMax system, the hot-swap procedure allows module exchange without de-energizing the safety controller, provided the redundant communication path remains healthy. This capability dramatically reduces the replacement window from a full planned shutdown to a routine maintenance task — a key operational advantage that justifies maintaining verified spare modules on-site rather than relying on emergency procurement.

Each F8627 supplied by TOPNLMS is sourced from verified industrial channels, subjected to functional testing prior to shipment, and covered by a 12-month warranty. Shipment is supported worldwide with appropriate export documentation for industrial components.

Support FAQ

Q1: How do I verify that an F8627 module is compatible with my specific HIMax system version?
Compatibility is determined by the HIMax system firmware version and the F8627 hardware revision. Check your HIMax system documentation or the HIMA SILworX engineering tool for the supported module revision matrix. When ordering, provide your current HIMax CPU firmware version and we will confirm compatibility before shipment.

Q2: What is the recommended spare parts stocking strategy for the F8627?
For a single HIMax system with a non-redundant SafeEthernet configuration, maintain one cold spare. For redundant configurations, maintain two spares. For multi-system facilities, a shared pool of three to four units is standard practice per IEC 61511 spare parts management guidance. Rotate spares through functional testing every three to five years to confirm readiness.

Q3: What testing and inspection does each F8627 undergo before shipment?
Each module is visually inspected for physical damage, connector integrity, and component condition. Functional testing verifies power-up behavior and communication initialization. Modules that do not pass inspection are not shipped. A 12-month warranty covers defects in materials and workmanship from the date of delivery.

Q4: Can the F8627 be replaced on-site without a full system shutdown?
In HIMax systems configured with redundant SafeEthernet communication, the F8627 supports hot-swap replacement while the redundant path maintains safety communication. The replacement procedure must follow HIMA’s documented hot-swap guidelines and should be performed by qualified SIS maintenance personnel. For non-redundant configurations, a controlled safe-state entry is required before module exchange.
