HIMA F7131 Replacement & Upgrade for HIMax Series

Product Overview

HIMA F7131 Replacement & Upgrade for HIMax Series: Smooth Migration from Legacy Power Distribution Systems

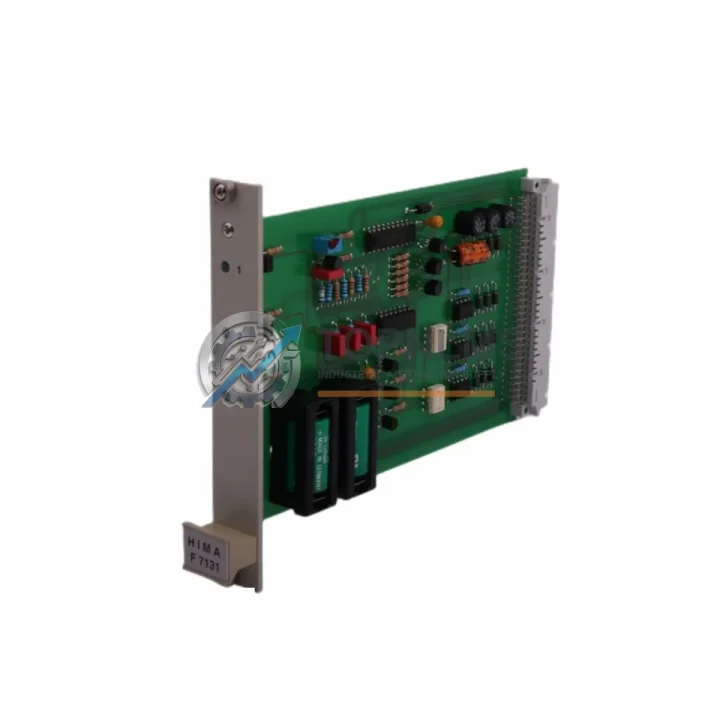

The HIMA F7131 is a dedicated Power Distribution Module engineered for the HIMax safety PLC platform — one of the most widely deployed Safety Instrumented System (SIS) architectures in process automation, oil & gas, chemical, and power generation industries. As legacy HIMax installations age and original F7131 units approach end-of-service life, facilities face increasing pressure to source verified replacement modules that maintain full backward compatibility with existing rack infrastructure, wiring harnesses, and safety logic programs.

TOPNLMS supplies the HIMA F7131 as a direct drop-in replacement for installed HIMax systems. Each unit is sourced from authorized distribution channels, inspected prior to shipment, and backed by a 12-month warranty. Whether you are executing a planned maintenance swap, responding to an unplanned module failure, or building a critical-spare inventory buffer, the F7131 is available for immediate dispatch from our Xiamen warehouse.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful HIMax power distribution upgrade rarely involves a single module in isolation. In practice, field engineers replacing an F7131 are often simultaneously addressing adjacent components that share the same rack, power bus, or communication backbone. During the migration process, the following HIMax and compatible components are commonly evaluated alongside the F7131:

The HIMA F3330 HIMax Central Processing Unit is the logical starting point for any system-level review — if the CPU firmware has been updated since the original F7131 installation, confirming module compatibility with the current ELOP II or SILworX project version is a standard commissioning step. Similarly, the HIMA F3236 Digital Input Module and HIMA F3332 Digital Output Module are frequently inspected during the same maintenance window, since power distribution changes can affect I/O channel availability and loop integrity across the rack.

For facilities running redundant power architectures, the HIMA F7130 Power Supply Module is often ordered alongside the F7131 to maintain a matched redundant pair. Engineers upgrading from older single-supply configurations to a fully redundant HIMax power topology will typically source both modules simultaneously to minimize future downtime exposure.

Communication-intensive HIMax installations — particularly those interfacing with DCS platforms via PROFIBUS DP or Modbus TCP — may also require inspection of the HIMA F8652E Communication Module. While the F7131 itself does not carry fieldbus traffic, power stability directly affects communication module performance, and a degraded power distribution module is a common root cause of intermittent fieldbus faults.

On the I/O side, the HIMA F3214 Analog Input Module and HIMA F3216 Analog Output Module are standard companions in process control cabinets where the F7131 distributes power to analog signal conditioning circuits. Facilities performing a full cabinet refurbishment often replace these modules as a preventive measure during the same planned outage used to swap the power distribution module.

For installations where the HIMax rack interfaces with remote I/O via the HIMA SafeEthernet protocol, the network switch infrastructure and fiber patch panels within the control cabinet should be verified for compatibility with the refreshed power distribution topology. Finally, engineering teams executing a broader migration from legacy HIMA H41q or H51q series controllers to the HIMax platform will find the F7131 is a required component in the new rack build-out, making it a natural procurement item alongside HIMax backplanes, termination boards, and SILworX license upgrades.

Retrofit Guidance FAQ

Q: Does replacing the F7131 require any wiring changes at the terminal block level?
A: No. The F7131 connects to the HIMax rack via the standard backplane connector. Field wiring to I/O modules and power supply inputs is unaffected. The swap is mechanical only — remove the faulty module, insert the replacement, and restore power.

Q: Will the replacement F7131 require a new SILworX or ELOP II project download?
A: In standard replacement scenarios, no program download is required. The HIMax CPU recognizes the F7131 by its slot position and module type automatically. If the system has been reconfigured since the original installation, a partial download limited to the affected rack may be required — consult your site’s validation protocol.

Q: Is the F7131 compatible with both single and redundant HIMax CPU configurations?
A: Yes. The F7131 operates identically in simplex and redundant CPU architectures. In redundant configurations, the module supports hot-swap replacement without requiring a system shutdown, subject to site safety procedures and the applicable SIL validation plan.

Q: What communication protocols does the F7131 support?
A: As a power distribution module, the F7131 does not carry fieldbus or Ethernet traffic. It communicates exclusively via the HIMax internal backplane bus. All external protocols — PROFIBUS DP, Modbus TCP, SafeEthernet, OPC UA — are handled by dedicated communication modules in adjacent slots and are unaffected by the F7131 replacement.

Q: Can the F7131 be installed in older HIMax rack generations?
A: The F7131 is designed for the HIMax rack platform. Compatibility with specific rack hardware revisions should be confirmed against the HIMA system documentation for your installation. TOPNLMS technical support can assist with cross-referencing your rack serial number and firmware version prior to shipment.

Q: How much physical space does the F7131 occupy in the control cabinet?
A: The F7131 occupies a single standard HIMax module slot. No additional DIN rail space, cable duct modification, or cabinet re-layout is required for a like-for-like replacement.

Warranty Assurance

Every HIMA F7131 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes visual examination, connector integrity verification, and functional bench testing where applicable. Units that fail to perform as specified within the warranty period are eligible for replacement or credit — no lengthy RMA bureaucracy.

We understand that unplanned module failures in safety-critical systems create immediate operational pressure. Our standard order processing time is 1–3 business days, with express dispatch available for urgent requirements. Shipment originates from our Xiamen warehouse, with DHL Express, FedEx International Priority, and sea freight options available depending on your timeline and budget.

For procurement teams managing critical spare inventories, TOPNLMS offers blanket order arrangements and reserved stock programs for high-demand HIMax components. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stock options tailored to your maintenance schedule.

All units are shipped with appropriate ESD protective packaging, and export documentation — including commercial invoice, packing list, and certificate of origin — is prepared to support customs clearance in your destination country.
