HIMA F6214 Replacement Solution for HIMatrix SIL2/3: Seamless Safety System Transition

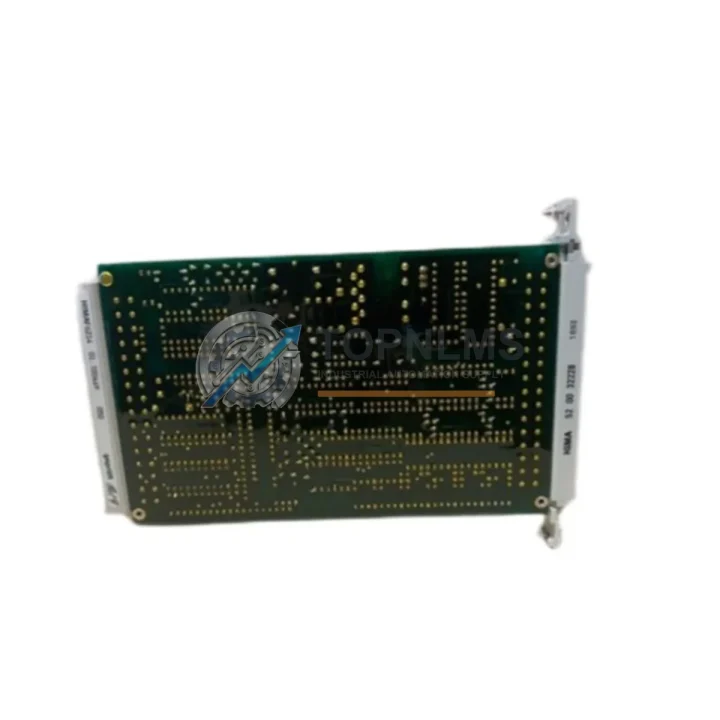

The HIMA F6214 is a high-integrity analog input module designed for the HIMatrix safety controller platform, certified to IEC 61508 SIL 2 and SIL 3. As legacy HIMatrix installations age and original F6214 units reach end-of-service life, plant engineers and automation managers face the critical challenge of sourcing verified replacement modules without compromising functional safety certification or triggering costly system re-validation. TOPNLMS supplies tested, original HIMA F6214 modules with full traceability, enabling a smooth, low-risk migration path for your existing HIMatrix safety architecture.

Whether you are replacing a failed module in a running safety instrumented system (SIS), upgrading a brownfield plant from an older HIMatrix generation, or consolidating spare parts inventory ahead of a scheduled turnaround, the F6214 integrates directly into your existing HIMatrix rack without firmware changes, wiring modifications, or re-engineering of your safety logic. The module retains full compatibility with the HIMatrix engineering tool, preserving your existing function block programs, I/O mapping, and diagnostic routines.

In practice, field engineers replacing an F6214 in a process plant SIS report that the swap-out procedure — from module extraction to hot-standby re-synchronization — can be completed within a single maintenance window. The F6214’s 16-channel analog input design supports 4–20 mA HART signals, allowing it to coexist with existing HART-capable field instruments such as pressure transmitters, flow meters, and temperature sensors already wired to the terminal base. No re-ranging or re-calibration of field devices is required when the replacement module is installed in the same slot position.

For sites running mixed HIMatrix configurations — for example, a safety controller paired with an F3 DIO 20/8 01 digital I/O module, an F6217 analog output module, or an F8621A communication module — the F6214 operates transparently within the same backplane bus. Engineers integrating the F6214 alongside an F3 SOE 8 01 sequence-of-events module or an F3 MUX 8 01 multiplexer module will find that the existing rack addressing and diagnostic polling remain unchanged. This is particularly valuable in SIL 3 applications where any unplanned configuration change could trigger a proof-test requirement under IEC 61511.

Sites migrating from older HIMA ELOP II-based systems to the current HIMatrix platform can use the F6214 as part of a phased hardware refresh. In such migrations, the analog input wiring from legacy terminal strips is typically re-terminated to the F6214’s compatible terminal base, and the ELOP II analog input function blocks are re-mapped to their HIMatrix equivalents in the HIMatrix engineering environment. TOPNLMS can advise on terminal base compatibility — specifically whether your installation uses the F 60xx series terminal bases — to ensure the replacement module seats correctly without mechanical modification.

For control cabinet integrators, the F6214’s compact form factor and standard HIMatrix slot pitch mean that no panel re-layout is required. Power consumption remains within the HIMatrix power supply budget, so existing F 8650E or F 8652E power supply modules do not need to be upsized. This is a significant advantage in brownfield retrofits where cabinet space and power rail capacity are fixed constraints.

Communication protocol compatibility is fully preserved. The F6214 communicates over the HIMatrix internal bus, and its diagnostic data is accessible via the same OPC DA/UA server interface used by your existing SCADA or DCS historian. Sites using Profibus DP or Modbus TCP gateways connected to the HIMatrix CPU will see no change in the analog input data structure or register mapping after the F6214 replacement.

TOPNLMS maintains stock of the HIMA F6214 and related HIMatrix I/O modules, sourced directly from authorized distribution channels. Each unit undergoes incoming inspection and functional verification before dispatch. Orders placed before 14:00 CST are typically shipped same day, with DHL Express and FedEx International Priority options available for urgent plant requirements. Delivery to most industrial regions in Europe, the Middle East, Southeast Asia, and the Americas is achievable within 3–5 business days.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete HIMatrix safety system migration typically involves more than a single module swap. When replacing the F6214, engineers commonly address adjacent components in the same maintenance window. The F3 DIO 20/8 01 digital I/O module is frequently replaced alongside the F6214 in mixed analog/digital SIS architectures, as both share the same rack and terminal base family. The F6217 analog output module is the natural companion to the F6214 in closed-loop safety applications, providing the 4–20 mA output channels needed to drive final control elements such as control valves and actuators.

For systems requiring communication gateway upgrades, the F8621A Profibus DP communication module enables the HIMatrix controller to interface with existing DCS infrastructure without protocol conversion middleware. Sites running OPC-based SCADA integration may also require the F8650E or F8652E power supply modules to be verified for load capacity when additional I/O modules are added to the rack. The F3 SOE 8 01 sequence-of-events module is commonly retained during F6214 replacement projects, as its timestamping function is independent of the analog input channels.

For field wiring termination, the F 6000 terminal base series provides the mechanical and electrical interface between the F6214 and field cables. Signal isolators — such as HIMA-compatible galvanic isolators for 4–20 mA loops — are recommended when replacing modules in installations with long cable runs or high common-mode noise environments. Programming cables and USB-to-HIMatrix interface adapters are available for engineers who need to perform online configuration changes or diagnostic downloads during the replacement procedure without taking the controller offline.

Retrofit Guidance FAQ

Q: Can I replace the F6214 without rewiring field cables?
A: Yes. The F6214 uses the F 60xx series terminal base, which remains in place during module replacement. Field cables stay connected to the terminal base; only the module itself is extracted and reinserted. This eliminates rewiring risk and reduces replacement time to under 30 minutes in most installations.

Q: Do I need to modify my HIMatrix safety program after replacing the F6214?
A: No program modification is required when replacing a failed F6214 with an identical unit. The HIMatrix engineering tool (SILworX) recognizes the replacement module automatically via the backplane, and the existing I/O mapping, function blocks, and diagnostic logic remain valid. A proof test may be required per your site’s SIS maintenance procedure, but no re-engineering is needed.

Q: Is the F6214 compatible with HART field instruments already installed?
A: Yes. The F6214 supports HART communication on all 16 analog input channels. Existing HART-capable transmitters — pressure, flow, temperature, or level — continue to operate without reconfiguration. HART pass-through to the HIMatrix engineering tool is preserved.

Q: What communication protocols does the HIMatrix system support after F6214 replacement?
A: The HIMatrix platform supports Profibus DP, Modbus TCP, OPC DA/UA, and HIMA’s proprietary safeethernet protocol. None of these are affected by an F6214 module replacement, as communication is handled by the CPU and gateway modules, not the I/O modules.

Q: Will the F6214 fit in my existing control cabinet without modification?
A: Yes. The F6214 occupies a standard HIMatrix slot and has the same physical dimensions as other HIMatrix I/O modules. No panel cutouts, DIN rail changes, or cable duct modifications are required.

Q: How do I verify the F6214 is functioning correctly after installation?
A: After insertion, the HIMatrix controller performs an automatic self-test and reports module status via the SILworX diagnostic interface. Green LED status on the module front panel confirms normal operation. A channel-by-channel loop check against known 4–20 mA reference signals is recommended as part of the post-replacement proof test.

Warranty Assurance

Every HIMA F6214 module supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point inspection including visual examination, connector integrity check, and functional power-on verification. Modules that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Replacement units are dispatched with priority shipping at no additional cost to the customer.

For urgent plant requirements — including unplanned shutdowns or safety system failures — TOPNLMS offers expedited order processing with same-day dispatch for orders confirmed before 14:00 CST. We maintain buffer stock of high-demand HIMatrix modules specifically to support emergency procurement scenarios.

All modules are shipped with original manufacturer packaging where available, and include a TOPNLMS inspection certificate. Export documentation, including commercial invoice, packing list, and certificate of origin, is provided for all international shipments to support customs clearance.

For procurement inquiries, technical compatibility questions, or warranty claims, contact our industrial automation team directly.
