HIMA F3237 Replacement Upgrade Solution for HIMatrix

Product Overview

HIMA F3237 Replacement Upgrade Solution for HIMatrix: Smooth Migration from Legacy Safety Systems

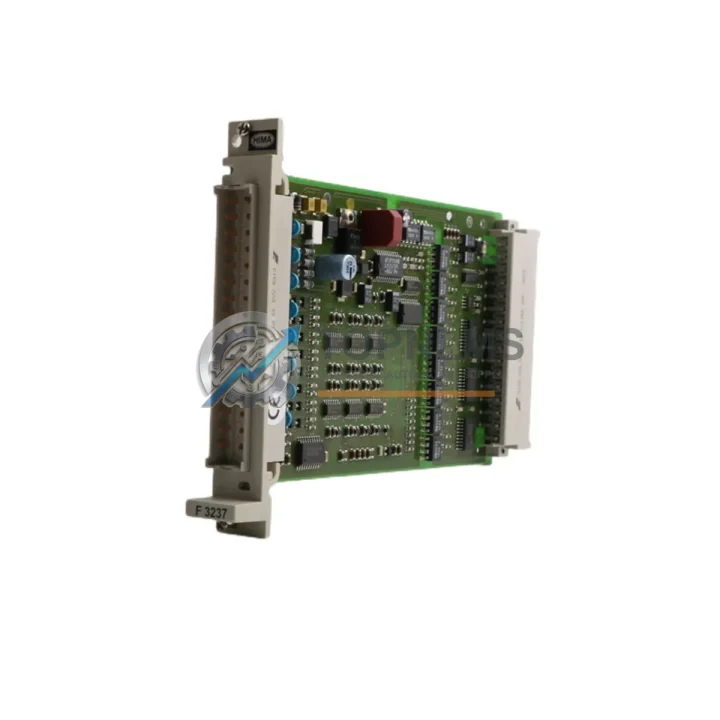

The HIMA F3237 is a SIL 3-rated Digital Input Module designed for the HIMatrix safety controller platform — one of HIMA’s most widely deployed standalone safety PLC families in process automation, oil & gas, chemical, and power generation industries. As legacy HIMatrix configurations age and original F3237 units approach end-of-service life, plant engineers and procurement teams face the critical challenge of sourcing verified replacement modules that maintain full system integrity without triggering costly re-validation cycles.

TOPNLMS supplies the HIMA F3237 as a direct replacement and upgrade solution for existing HIMatrix installations. Each unit is sourced from authorized supply chains, individually tested prior to dispatch, and backed by a 12-month warranty. Whether you are replacing a failed module in an emergency shutdown system (ESD), upgrading a partial HIMatrix rack, or building a spare-parts inventory for a long-term maintenance contract, the F3237 is available from stock with fast international shipping from Xiamen, China.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful HIMatrix system migration or module replacement rarely involves a single component. In practice, field engineers working on HIMatrix F35 or HIMatrix F60 rack upgrades will encounter a range of interdependent components that must be evaluated alongside the F3237 Digital Input Module.

On the output side, the HIMA F3330 Digital Output Module is the most common companion to the F3237 in mixed I/O rack configurations. When replacing aging DI modules, it is standard practice to audit the DO modules in the same rack simultaneously — particularly in ESD and fire-and-gas (F&G) systems where both input sensing and output actuation must maintain SIL 3 integrity. Similarly, the HIMA F3236 Digital Input Module is often found in adjacent slots and may require replacement as part of the same maintenance window.

For installations that include analog process signals — such as pressure transmitters, flow meters, or temperature sensors — the HIMA F3220 Analog Input Module is frequently part of the same HIMatrix rack assembly. Migrating from an older analog I/O configuration to a current-generation F3220 alongside the F3237 DI replacement ensures consistent firmware compatibility across the entire I/O tier.

Communication between the HIMatrix controller and the plant DCS or SCADA layer typically relies on the HIMA F8621A Communication Module or similar HIMatrix communication interface cards. During a module replacement project, verifying that the communication module firmware is aligned with the updated I/O module set is a critical commissioning step — particularly for systems using PROFIBUS DP, Modbus RTU, or OPC-based integration with Emerson DeltaV, Honeywell Experion, or Yokogawa CENTUM VP platforms.

The HIMatrix controller CPU — such as the HIMA F3 CPU or HIMatrix F35 Controller — manages all I/O modules in the rack. When the F3237 is replaced, the SILworX project configuration must be re-downloaded to the CPU to register the new module. Ensuring the CPU firmware version is compatible with the replacement F3237 hardware revision is a prerequisite that TOPNLMS technical support can assist with prior to shipment.

Power distribution within the HIMatrix cabinet is handled by the system power supply module. The HIMA F7553 Power Supply Module (or equivalent HIMatrix PSU) should be inspected during any rack-level maintenance. An aging power supply in the same cabinet as a failing DI module is a common root cause of intermittent input faults — replacing both in the same service window reduces future unplanned downtime.

For field-side signal conditioning, HIMA F3DIO signal isolators and terminal multiplier modules are often installed between the field instruments and the HIMatrix DI inputs. These components are not replaced by the F3237 itself but must be verified for signal compatibility — particularly when upgrading from older 24 VDC dry-contact input configurations to wet-contact or NAMUR sensor inputs supported by newer F3237 hardware revisions.

Finally, for commissioning and firmware management, the HIMA programming cable and a licensed copy of SILworX (HIMA’s IEC 61131-3 safety programming environment) are required to complete the module replacement procedure. TOPNLMS can advise on compatible cable types and SILworX version requirements based on your specific HIMatrix system generation.

Retrofit Guidance FAQ

Q: Can I replace the F3237 without rewiring the field terminals?
A: Yes. The F3237 uses a removable field-side terminal block. In most HIMatrix installations, the terminal block can be unplugged from the old module and plugged directly into the replacement unit, preserving all existing field wiring. Verify terminal block compatibility with your specific HIMatrix rack generation before proceeding.

Q: Do I need to modify my SILworX project after replacing the F3237?
A: In most cases, a direct hardware replacement of the same module type (F3237 to F3237) requires only a re-download of the existing SILworX project to the HIMatrix CPU. No logic changes are required unless the replacement unit has a different hardware revision that introduces new parameter options. TOPNLMS provides hardware revision documentation with each shipment.

Q: Is the F3237 compatible with both HIMatrix F35 and HIMatrix F60 racks?
A: The F3237 is designed for the HIMatrix platform and is compatible with standard HIMatrix rack configurations. Confirm your specific rack model and slot assignment in your SILworX hardware configuration before ordering to ensure slot-level compatibility.

Q: What communication protocols does the HIMatrix system support when using the F3237?
A: The F3237 itself communicates via the HIMatrix internal backplane bus. The HIMatrix system’s external communication capabilities — including PROFIBUS DP, Modbus RTU, HART pass-through, and OPC UA — are managed by the HIMatrix communication modules, not the DI module itself. Replacing the F3237 does not affect external protocol configuration.

Q: How do I verify the physical installation space in my control cabinet?
A: The F3237 occupies a standard HIMatrix module slot. No additional DIN rail space or cabinet modification is required for a like-for-like replacement. If you are expanding an existing rack with additional DI capacity, confirm available slot count in your HIMatrix F35 or F60 rack before ordering multiple modules.

Q: Can the F3237 be used in a SIL 3 safety loop without additional hardware?
A: Yes, the F3237 is SIL 3 certified per IEC 61508 when used within a validated HIMatrix safety system configuration. The overall SIL rating of the safety function depends on the complete loop design, including field instruments, wiring, and the HIMatrix CPU. Consult your functional safety engineer for loop-level SIL verification.

Warranty Assurance

Every HIMA F3237 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment testing protocol includes functional verification of all digital input channels, backplane interface integrity checks, and visual inspection for physical damage. Units that do not pass testing are not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time is within 24 hours for warranty inquiries. We maintain stock of F3237 modules to support rapid replacement dispatch — minimizing the impact of any warranty event on your plant operations.

For procurement teams requiring documentation, we can provide test reports, packing lists, and country-of-origin certificates (Germany) upon request. All units are shipped with appropriate ESD-protective packaging and export compliance documentation for international shipments.

TOPNLMS serves industrial clients across Southeast Asia, the Middle East, Europe, and the Americas. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units. Express shipping options (DHL, FedEx, UPS) are available for emergency replacement requirements.
