HIMA F3236 Original Industrial Spare F3200 Compatible

Product Overview

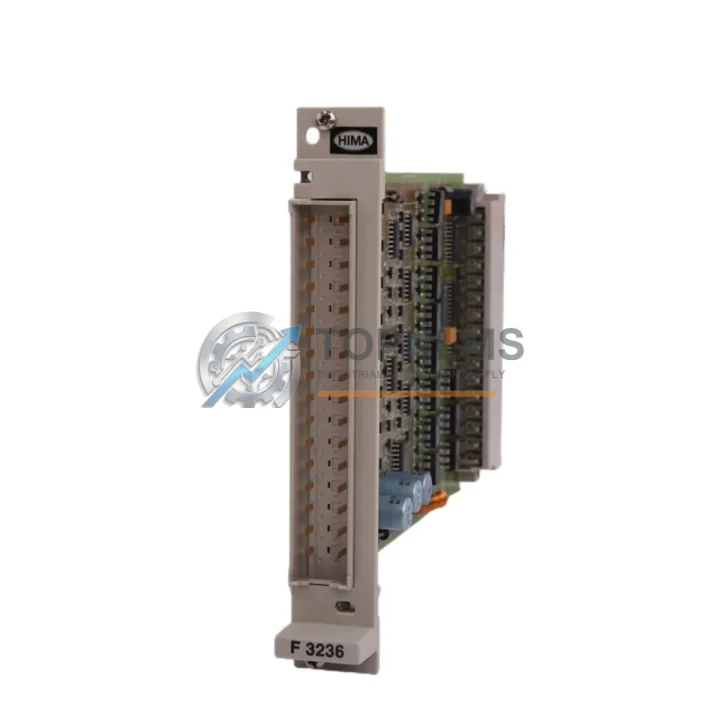

HIMA F3236 Original Industrial Spare — F3200 Series Safety Digital Input Module for System Stability

The HIMA F3236 is a safety-rated digital input module belonging to HIMA’s renowned F3200 Series programmable safety controller platform. Certified to IEC 61508 SIL 2 and SIL 3, this module is engineered for deployment in safety-critical industrial environments including oil & gas processing, chemical plants, power generation facilities, and heavy manufacturing. Sourced as an original spare, the F3236 provides a direct, drop-in replacement for aging or failed units without requiring system reconfiguration or safety re-validation — a critical advantage in facilities where downtime carries significant operational and financial risk.

Maintaining a verified stock of original HIMA F3236 modules is a cornerstone of any responsible preventive maintenance programme for F3200-based safety instrumented systems (SIS). When a digital input channel fails or degrades, the ability to swap in a pre-tested, original module within minutes — rather than waiting weeks for procurement — is the difference between a controlled maintenance window and an unplanned production shutdown. Every F3236 unit dispatched from our facility undergoes functional verification prior to shipment and is covered by a 12-month quality warranty.

Critical Technical Specs

Preventive Maintenance Strategy

A proactive maintenance strategy for any HIMA F3200-based safety system extends well beyond the F3236 digital input module itself. During scheduled shutdowns or annual SIS proof-tests, maintenance engineers should treat the F3236 replacement as part of a broader cabinet inspection. The F3200 series backplane and rack assembly should be inspected for corrosion, loose connectors, and mechanical wear — a degraded backplane can cause intermittent faults that are misdiagnosed as module failures. Simultaneously, the HIMA F3330 or F3332 digital output modules installed in the same rack should be tested for channel integrity, as input and output modules in the same safety loop age at comparable rates.

Power supply redundancy is equally critical. The HIMA F7553 or F7554 power supply modules feeding the F3200 rack should be load-tested and their output voltages verified against specification. A marginal power supply is a common root cause of spurious input faults that appear to originate in the F3236. While the cabinet is open, inspect the 24 V DC field wiring terminal blocks — loose or corroded terminals on the input field side are a frequent source of false digital input signals and should be re-torqued or replaced as part of the maintenance cycle.

For facilities running HIMA F3200 systems in conjunction with a distributed control system, the HIMA HIMatrix or HIQuad communication gateway modules that bridge the safety PLC to the DCS backbone should be firmware-verified during the same maintenance window. Outdated firmware on communication modules can introduce latency or handshake failures that affect the integrity of safety function reporting. Additionally, the F3200 series CPU module — typically an F3 DIO or F3 SOE variant — should have its diagnostic logs reviewed for accumulated soft errors or watchdog events that may indicate impending hardware degradation.

Signal conditioning components in the input loop also warrant attention. Signal isolators and galvanic separators installed between field sensors and the F3236 input channels should be tested for isolation resistance and signal fidelity. Degraded isolators can introduce ground loops that corrupt digital input readings. Where HIMA F3236 inputs are connected to emergency shutdown (ESD) pushbuttons or pressure switches, the field devices themselves — including cable insulation resistance — should be tested as part of the same proof-test procedure to ensure the entire safety function chain is validated, not just the module.

Finally, for facilities managing ageing F3200 installations, maintaining a small buffer stock of HIMA F3236 modules alongside F3330 output modules and F7553 power supplies as a matched spare set significantly reduces mean time to repair (MTTR) and supports the business case for extending the operational life of the existing safety system rather than undertaking a costly full migration.

Strategic Replacement Solutions

The HIMA F3236 has been in service across global process industries for over two decades, and many facilities are now managing end-of-production or limited-availability challenges for this module. Sourcing an original F3236 from a verified industrial spare parts supplier is the most operationally sound replacement strategy — it eliminates the need for safety re-validation, preserves existing I/O mapping, and avoids the engineering cost of reconfiguring the F3200 safety application software.

Compared to pursuing a full system migration to a newer HIMA HIMatrix or HIQuad platform, replacing a failed F3236 with an original spare extends the productive life of the existing installation by years, at a fraction of the capital cost. For facilities under budget pressure or operating under a deferred capital expenditure strategy, a well-managed spare parts inventory — anchored by verified original modules like the F3236 — is the most cost-effective path to maintaining SIL-rated safety function availability.

Each F3236 unit supplied by TOPNLMS is individually tested for channel functionality and communication integrity with the F3200 backplane before dispatch. Units are shipped in anti-static protective packaging with full documentation. Express international shipping via DHL or FedEx is available for urgent breakdown situations, with typical transit times of 3–7 business days to most global destinations.

Support FAQ

Q1: Is this F3236 an original HIMA module or a compatible replacement?
This is an original HIMA F3236 module — not a clone, compatible substitute, or refurbished unit from an unknown source. All units are sourced through verified industrial supply channels and are functionally tested prior to shipment.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers functional defects identified under normal operating conditions consistent with HIMA’s published specifications for the F3236. If a module fails within the warranty period due to a manufacturing or component defect, we will provide a replacement unit at no additional cost. Warranty claims are processed within 5 business days of receiving the returned module.

Q3: How do I verify compatibility with my existing F3200 rack before installation?
The F3236 is designed for installation in standard HIMA F3200 series racks. Verify your rack model and backplane revision against HIMA’s F3200 system documentation. If you require compatibility confirmation for a specific rack configuration or firmware version, contact our technical team at [email protected] with your system details and we will advise prior to purchase.

Q4: Can you support urgent breakdown orders with fast shipping?
Yes. For breakdown situations, we offer priority order processing and express international shipping via DHL Express or FedEx International Priority. Contact us directly at +86 18359293191 or [email protected] to confirm stock availability and arrange expedited dispatch. Most in-stock orders are shipped within 24 hours of payment confirmation.
