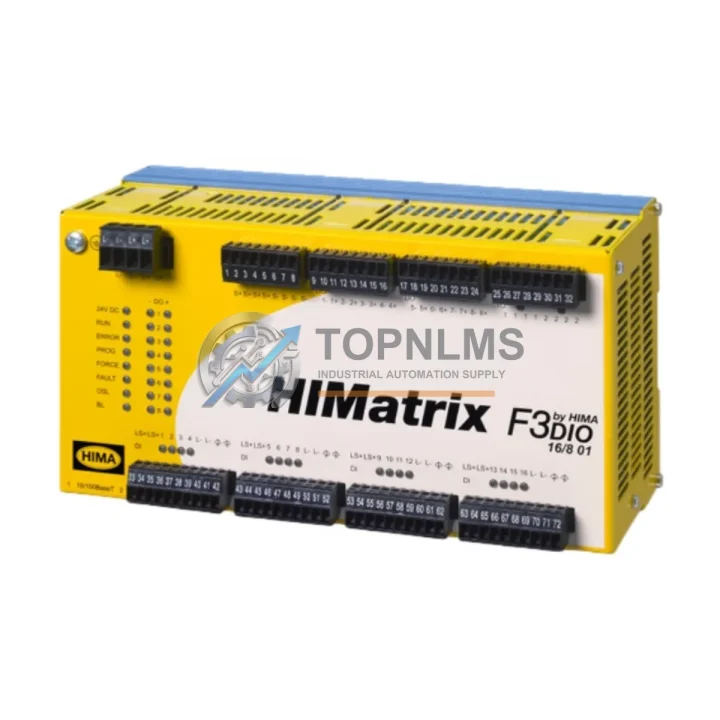

HIMA F3 DIO 16/801 Replacement Solution for F3 Series

Product Overview

HIMA F3 DIO 16/801 Replacement Solution for F3 Series: Smooth Transition from Legacy Safety Systems

When your installed HIMA F3 DIO 16/801 SIL 3 Digital I/O Module reaches end-of-life, becomes obsolete, or is no longer available through standard distribution channels, a controlled and validated replacement is the only path that preserves your safety integrity level and avoids costly recertification. TOPNLMS supplies the HIMA F3 DIO 16/801 as a direct, form-fit-function replacement for HIMax and HIMatrix safety-instrumented systems operating in process automation, oil & gas, chemical, power generation, and offshore environments. Every unit is sourced from verified supply chains, inspected against HIMA’s published hardware specifications, and shipped with full traceability documentation to support your MOC (Management of Change) process.

The F3 DIO 16/801 is a 16-channel digital I/O module designed for SIL 3 applications within the HIMA F3 architecture. It mounts directly into the HIMax or HIMatrix central rack alongside companion modules such as the F3 AIO 8/4 01 analog I/O module and the F3 DI 16/8 01 digital input module, sharing the same backplane bus and power distribution scheme. Replacing a failed or obsolete F3 DIO 16/801 does not require rack replacement, backplane rewiring, or changes to the safety application program — the module is hot-swappable in redundant configurations, dramatically reducing planned maintenance windows and unplanned downtime.

Field wiring connects to the module via HIMA’s standard marshalling terminal assemblies. If your installation uses the F3 SP 10 01 sub-processor module or the F3 CP 0/10 01 central processor, the F3 DIO 16/801 communicates over the internal F-Bus without any protocol reconfiguration. Engineers migrating from older HIMatrix S35 or HIMatrix F35 chassis to a HIMax platform will find that the F3 DIO 16/801 retains identical channel addressing conventions, simplifying the I/O mapping exercise in ELOP II Factory or HIMA’s SILworX engineering environment.

For sites upgrading from legacy Triconex, Pilz, or Siemens S7-400F safety controllers to the HIMA F3 platform, the F3 DIO 16/801 serves as the standard digital I/O endpoint. The migration typically involves re-terminating field cables at HIMA-compatible marshalling panels, remapping I/O tags in the safety application, and performing a proof-test cycle. The module’s 24 V DC process interface is compatible with the majority of existing field devices — solenoid valves, proximity switches, and emergency shutdown actuators — without signal conditioning changes. Where galvanic isolation is required between field loops, a HIMA F3 XIO 8/8 01 remote I/O coupler or a third-party signal isolator can be inserted without affecting the module’s SIL 3 rating.

Power supply compatibility is a common concern during module replacement. The F3 DIO 16/801 draws its logic power from the HIMax or HIMatrix rack’s internal 24 V DC bus, supplied by the F3 PS 10 01 power supply module. No external power feed to the I/O module is required, and the rack’s redundant power architecture ensures that a single PSU failure does not interrupt module operation. Sites running dual-redundant power feeds should verify that both F3 PS 10 01 units are within their rated load budget after adding or replacing I/O modules.

Communication protocol compatibility is fully preserved. The F3 DIO 16/801 does not expose an independent fieldbus interface; it communicates exclusively over the HIMA internal F-Bus, which is managed by the central processor. DCS integration — whether via Modbus TCP, PROFIBUS DP, or OPC UA through a HIMA F3 COM 1 01 communication module — is unaffected by an I/O module swap. This means your DCS historian, alarm management system, and operator workstation configurations require no modification following the replacement.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete HIMax or HIMatrix safety system refresh typically involves more than a single I/O module. During the replacement of an F3 DIO 16/801, engineers commonly audit adjacent modules in the same rack. The F3 DI 16/8 01 digital input module and F3 DO 16/8 01 digital output module are frequent co-replacements when a rack has experienced environmental stress or exceeded its design service life. Analog signal chains are handled by the F3 AIO 8/4 01, which shares the same backplane slot format and requires no additional cabling changes.

For sites expanding I/O capacity as part of a broader modernization project, the F3 XIO 8/8 01 remote I/O coupler extends the F3 I/O bus to satellite marshalling cabinets, reducing home-run cable costs. Communication upgrades are addressed by the F3 COM 1 01 module, which adds Modbus TCP or PROFIBUS DP gateway capability to the central processor without modifying the safety application. Power infrastructure should be reviewed concurrently: the F3 PS 10 01 power supply module and its redundant partner should be load-tested after any I/O expansion. Finally, the F3 CP 0/10 01 central processor and F3 SP 10 01 sub-processor are the logical next candidates for lifecycle review when a rack’s I/O modules are being refreshed, ensuring the entire safety system remains within its validated hardware configuration.

Retrofit Guidance FAQ

Q: Do I need to modify field wiring when replacing the F3 DIO 16/801?
No. The replacement module uses the same terminal block pinout and 24 V DC process interface. Field cables can be re-terminated directly without signal conditioning changes in the vast majority of installations.

Q: Will my safety application program require modification?
No. The F3 DIO 16/801 replacement retains identical I/O channel addressing. The safety application compiled in ELOP II Factory or SILworX does not require recompilation or re-download unless you are simultaneously changing I/O mapping as part of a broader upgrade.

Q: Is the module compatible with both HIMax and HIMatrix platforms?
Yes. The F3 DIO 16/801 is qualified for use in both HIMax central racks and HIMatrix S35/F35 chassis. Slot assignment follows the standard HIMA rack layout documented in the HIMax/HIMatrix hardware manual.

Q: Can the module be replaced while the system is running?
In redundant configurations, the F3 DIO 16/801 supports hot-swap replacement. The redundant channel continues to maintain the safety function during the swap. Single-channel configurations require a controlled shutdown in accordance with your site’s safety management procedures.

Q: What communication protocols are affected by the module swap?
None. The F3 DIO 16/801 communicates exclusively over the internal HIMA F-Bus. All external protocols — Modbus TCP, PROFIBUS DP, OPC UA — are managed by the communication module and central processor, which are unaffected by an I/O module replacement.

Q: How do I verify physical space compatibility in my control cabinet?
The F3 DIO 16/801 occupies a single standard slot in the HIMax or HIMatrix rack. No additional DIN rail space, cable duct modification, or cabinet re-layout is required for a like-for-like replacement.

Warranty Assurance

Every HIMA F3 DIO 16/801 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point inspection covering visual integrity, connector condition, firmware version verification, and functional power-on testing. Units that do not meet HIMA’s published hardware specifications are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response team is reachable within one business day. Shipping is handled from our Xiamen warehouse with DHL Express, FedEx International Priority, and sea freight options available depending on urgency and destination. Export documentation, including commercial invoice, packing list, and certificate of origin, is prepared for all international shipments to support customs clearance.

For procurement teams requiring approved vendor qualification, TOPNLMS can provide company registration documents, quality inspection reports, and traceability records upon request. We support NET 30 payment terms for qualified accounts and accept T/T bank transfer, PayPal, and major credit cards.

Contact our technical sales team to confirm stock availability, lead time, and pricing before placing your order.
